Review - What do high and low pressure centers on a surface weather map tell you about the weather in their vicinity?

You find counterclockwise winds blowing around low pressure. The winds also spiral inward toward the center of the LOW (air will always try to blow from high to low pressure, other forces may prevent it from doing so). The inward motion is called convergence. Because of the convergence air rises in the center of low pressure. The rising air expands and cools. The cooling can cause clouds to form. Convergence is one of 4 ways of causing air to rise in the atmosphere.

With high pressure (not covered in class last Friday, but in the online notes) winds spin clockwise and spiral outward (divergence). Air sinks in the middle of the high. The sinking air is compressed (as it moves to lower levels in the atmosphere) and warms. The warming keeps clouds from forming so you generally find clear skies in the vicinity of surface high pressure.

Once you have the pressure pattern mapped out you can look for regions where the pressure gradient is strong or weak. The pressure gradient is largely responsible for determining whether the winds will be fast or slow.

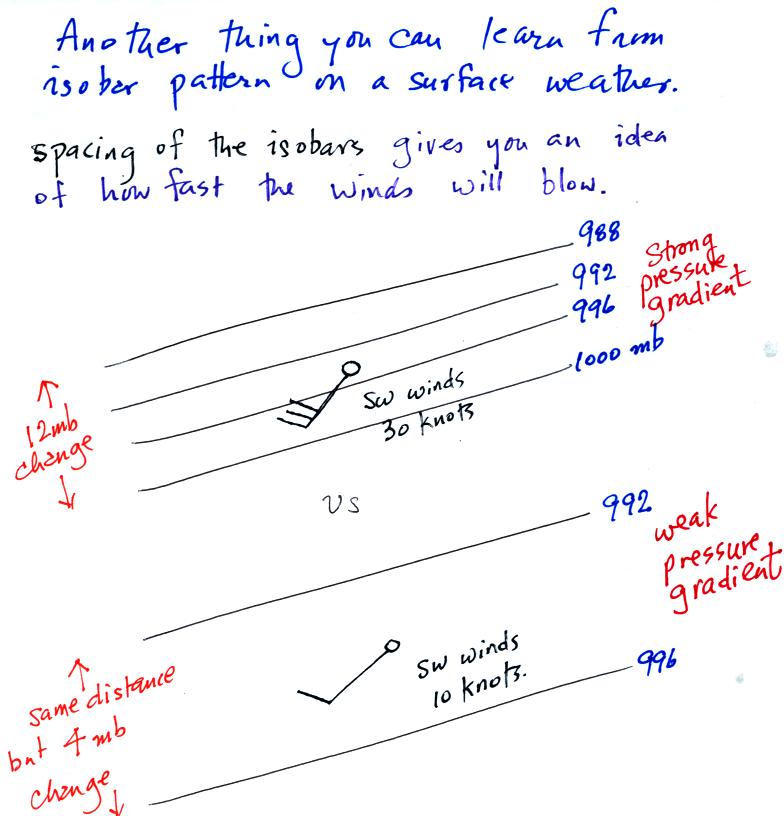

In the top figure above the isobars are closely spaced. This is a strong pressure gradient (a large or rapid change of pressure with distance). The wind speed is 30 knots.

In the lower figure above the pressure change is smaller in about the same horizontal distance. This is a weaker pressure gradient and produces slower (10 knot) winds.

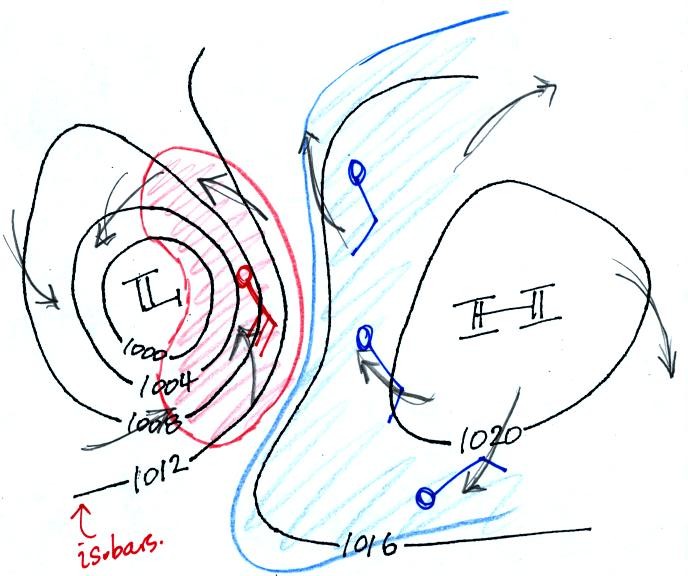

Here's a more complex but more realistic weather map example (found at the bottom of p. 40c in the photocopied class notes). The arrows indicate the directions of the winds (clockwise and outward around the high, counterclockwise and inward around the low). Fast 30 knot winds are found in the strong pressure gradient region shaded red. Slower 10 knot winds are shown in the blue weak pressure gradient region.

In some respects weather maps are like topographic maps. The map above at top right represents the hill at top left. Closely spaced contours on the topographic map correspond to a steep slope on the hill. Widely spaced contours depict the gradual slope on the right side of the hill. If you were to trip and roll downhill, you would roll faster on the steep slope than on the gradual slope.

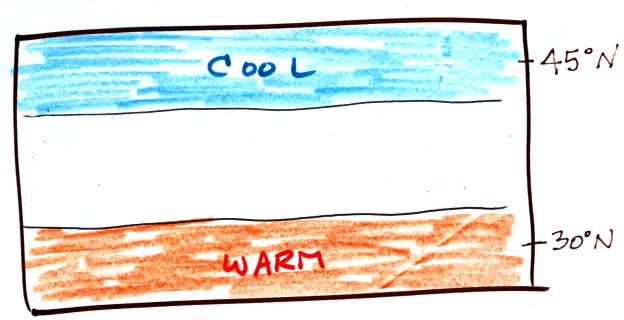

The pressure pattern on a surface weather map determines the winds. Once the winds begin to blow they can affect the temperature pattern. The figure below shows the temperature pattern you would expect to see if the wind wasn't blowing at all or if the wind was blowing straight from west to east. The bands of different temperature air are aligned parallel to the lines of constant latitude.

This isn't a very interesting picture. It gets a little more interesting if you put centers of high or low pressure in the middle.

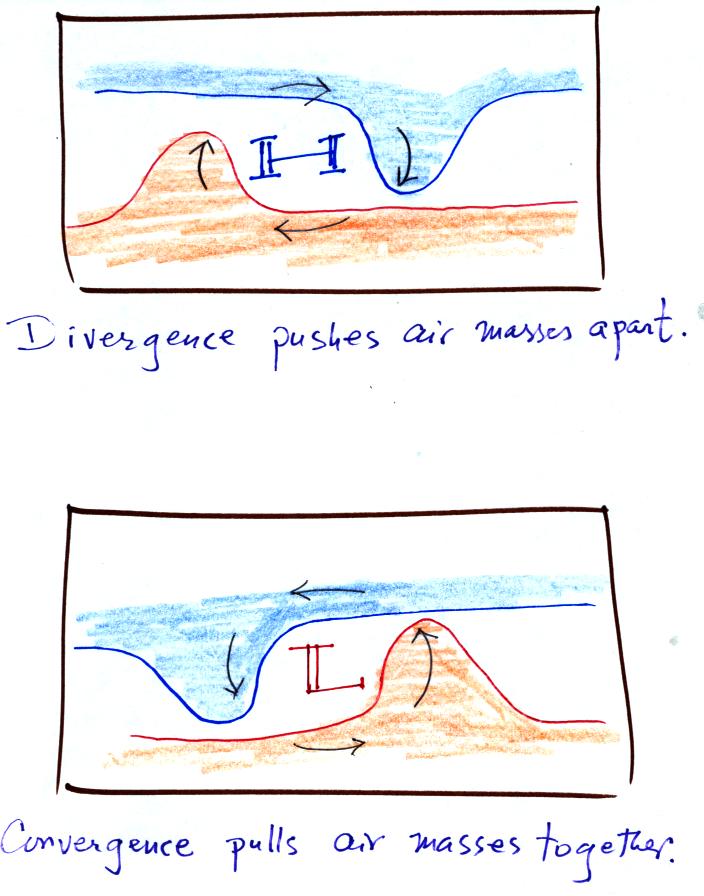

The clockwise spinning winds move warm air to the north of the western side of the HIGH. Cold air moves toward the south on the eastern side of the high.

Counterclockwise winds move cold air toward the south on the west side of the LOW. Warm air advances toward the north on the eastern side of the low.

The converging winds in the case of low pressure will move the air masses of different temperature in toward the center of low pressure and cause them to collide with each other. The boundaries between these colliding air masses are called fronts.

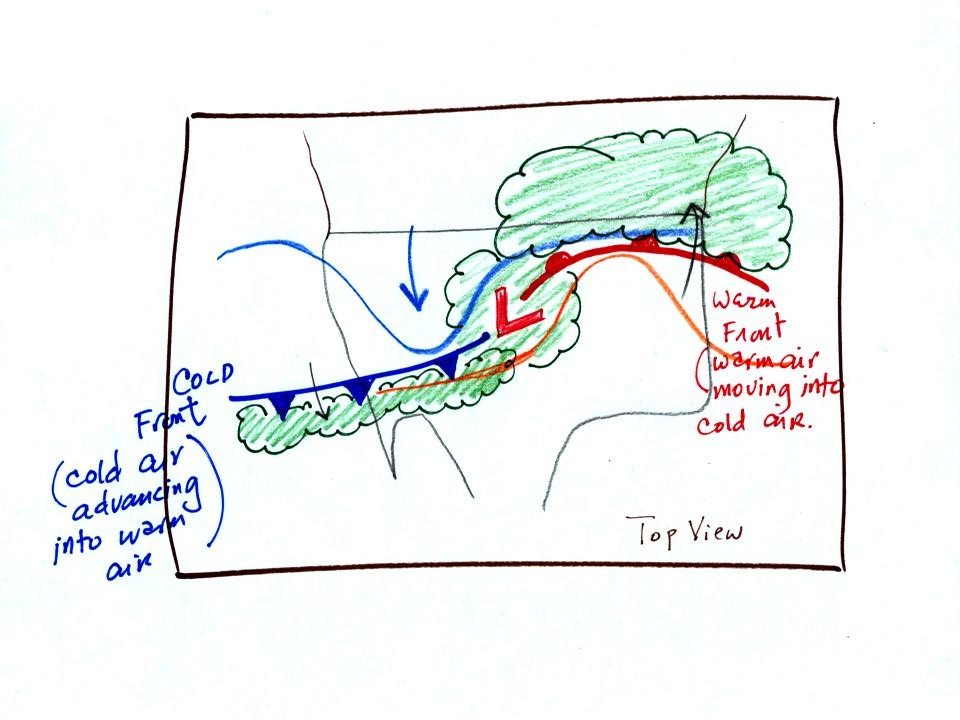

Cold air is moving from north toward the south on the western side of the low. The leading edge of the advancing cold air mass is a cold front. Cold fronts are drawn in blue on weather maps. The small triangular symbols on the side of the front identify it as a cold front and show what direction it is moving. The fronts are like spokes on a wheel. The "spokes" will spin counterclockwise around the low pressure center.

A warm front (drawn in red with half circle symbols) is shown on the right hand side of the map at the advancing edge of warm air.

Clouds can form along fronts (often in a fairly narrow band along a cold front and over a larger area ahead of a warm front). We need to look at the crossectional structure of warm and cold fronts to understand better why this is the case.

Crossectional view of a cold front

At the top of the figure, cold dense air on the left is advancing into warmer lower density air on the right. We are looking at the front edge of the cold air mass. The warm low density air is lifted out of the way by the cold air.

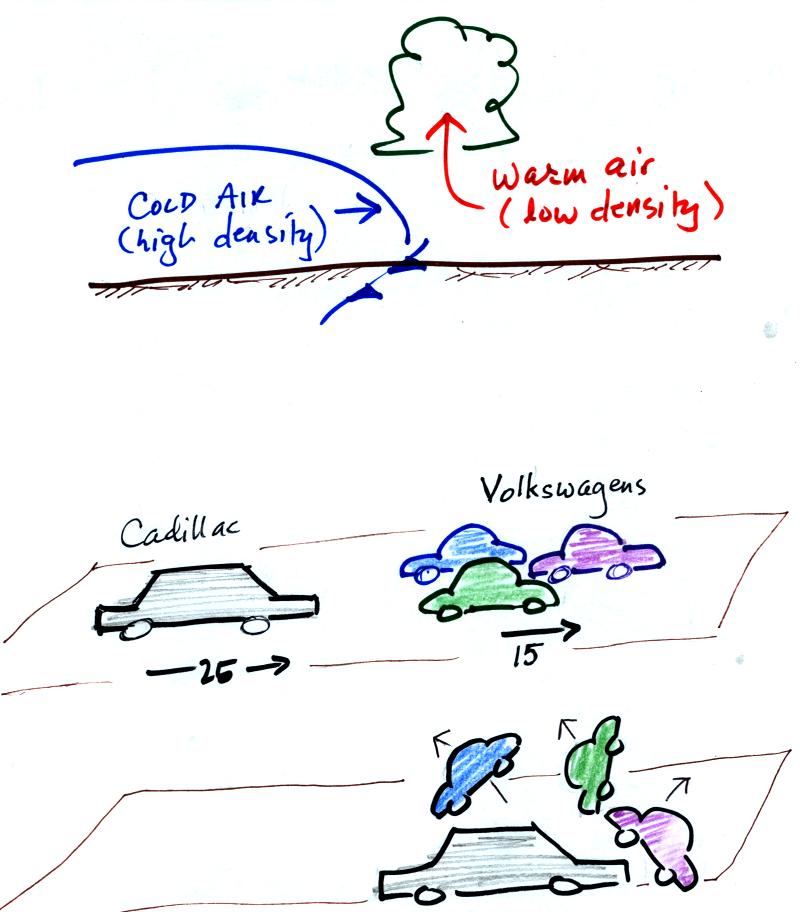

The lower figure shows a big heavy Cadillac plowing into a bunch of Volkswagens. The VWs are through up into the air by the Cadillac.

Crossectional view of a warm front

In the case of a warm front we are looking at the back, trailing edge of cold air (moving to the right). Note the ramp like shape of the cold air mass. Warm air overtakes the cold air. The warm air is still less dense than the cold air, it can't wedge its way underneath the cold air. Rather the warm air overruns the cold air. The warm air rises again (more gradually) and clouds form. The clouds generally are spread out over a larger area than with cold fronts.

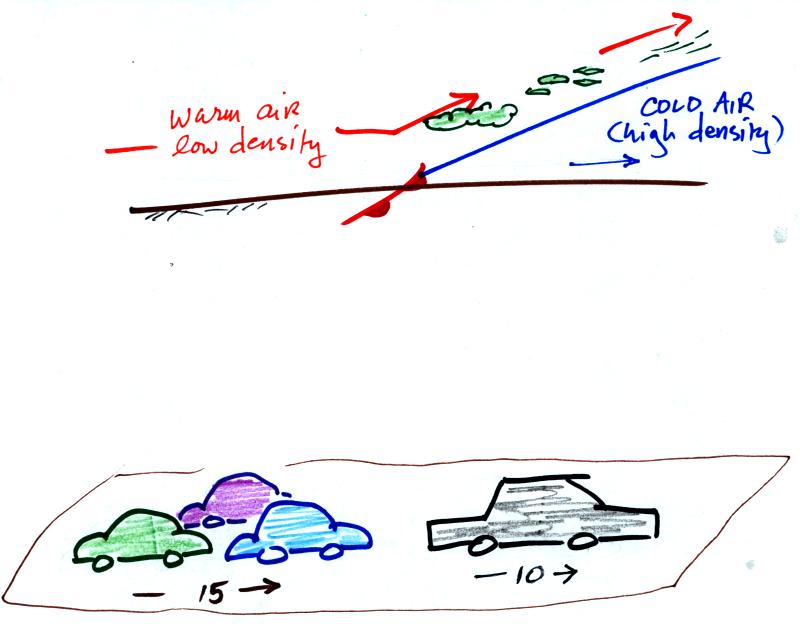

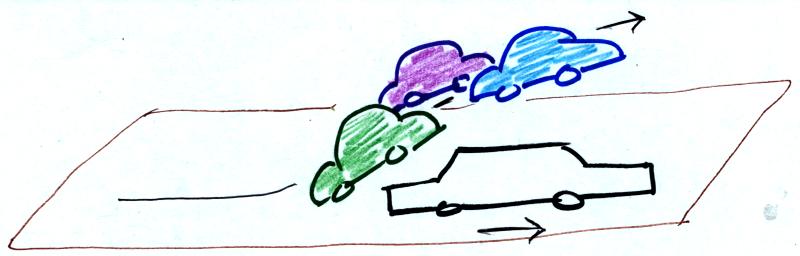

In the lower figure the VWs are catching a Cadillac. What happens when they overtake the Cadillac?

The Volkswagens aren't heavy enough to lift the Cadillac. They run up and over the Cadillac.

Fronts (warm and cold) are a 2nd way of causing rising air motions in the atmosphere. Rising air cools and if the warm air is moist, clouds and precipitation can form.

Now we will go back to our surface weather map from last Friday's class.

We were trying to figure out what might have been causing the cloudy weather in the NE and along the Gulf Coast. Part of the reason for the clouds (and rain and drizzle) in the NE might have been the converging winds around a center of Low pressure. This would cause air to rise and could form clouds and precipitation. The low wouldn't explain the rain shower along the Gulf Coast, however.

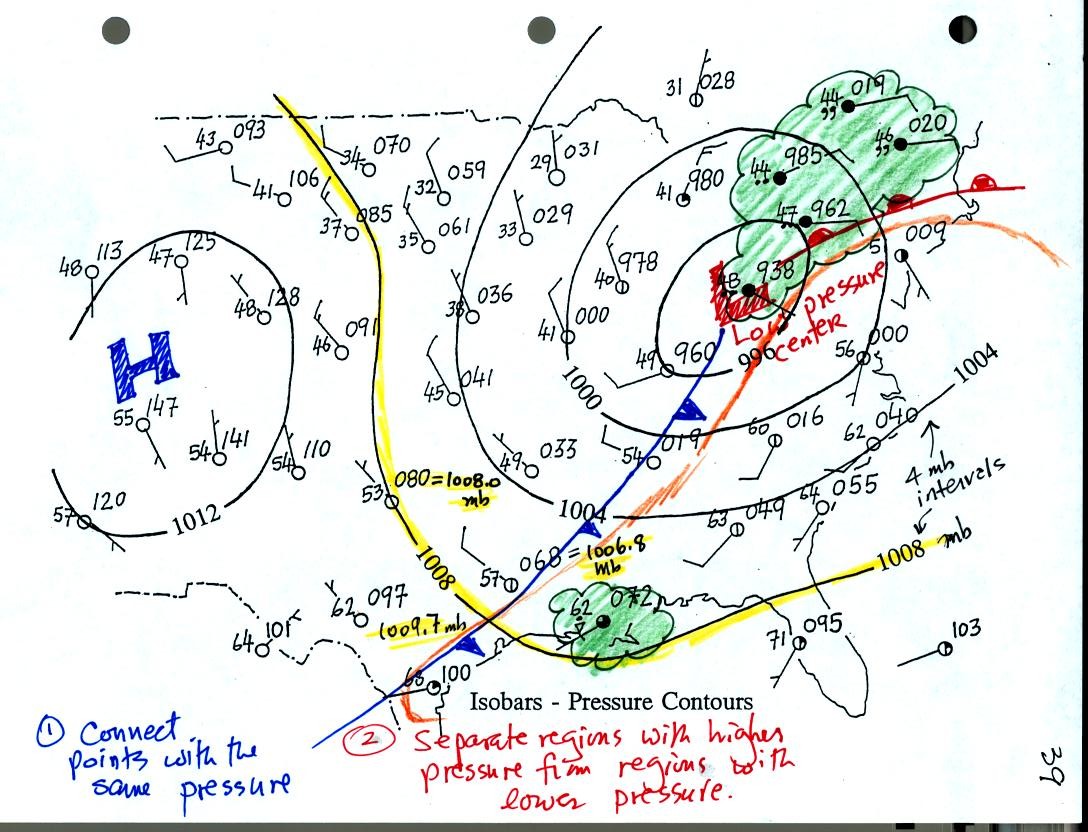

Now we have added cold and warm fronts to the map (you'll learn more about how this is done later in the semester). The warm front may be a large part of what is causing the cloudy weather in the NE. The rain showers along the Gulf Coast are almost certainly being caused by the approaching cold front.

We looked briefly at upper level weather maps at the end of the period. You'll note on the Quiz #1 Study Guide that this material will not be on this week's quiz.

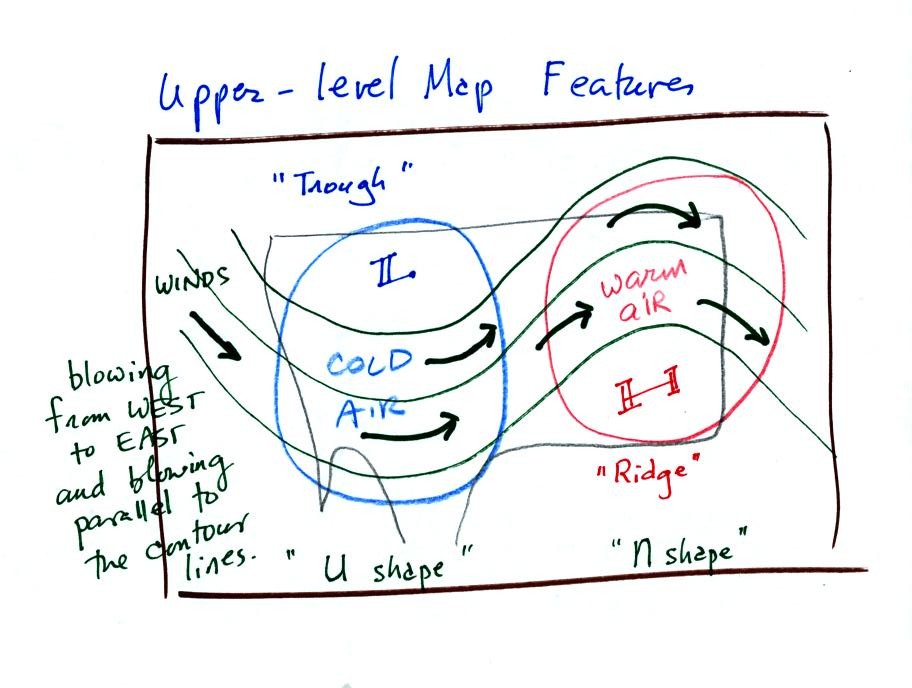

Upper level just refers to some level above the ground. Upper level weather maps are often drawn for several levels at different altitudes above the ground. The upper level pattern generally has a wavy appearance like shown above. The contours lines dip toward the south in troughs and bulge up toward the north in ridges. You generally find cold air below an upper level trough (cold air between the ground the level the map is drawn for) and warm air under an upper level ridge. The winds blow from west to east parallel to the contour lines (winds blow across the contour lines slightly, toward low pressure, on surface weather maps).

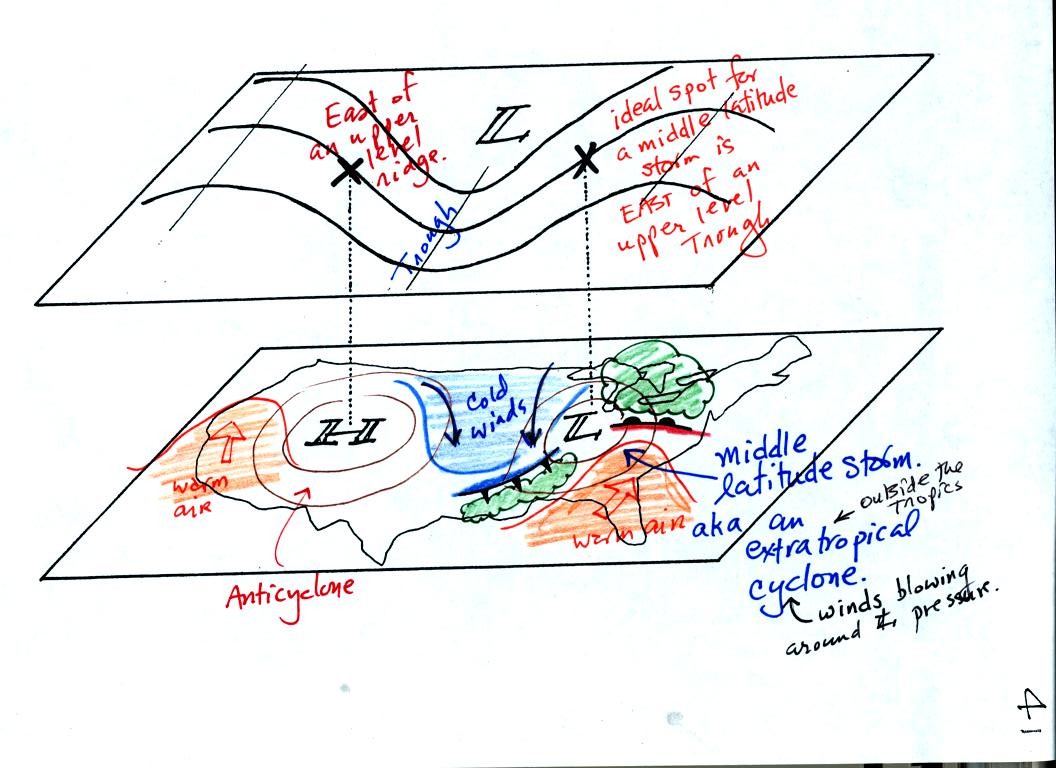

Now we will put the two kinds of maps together. On the surface map you see centers of HIGH and LOW pressure. The low pressure center, together with the cold and warm fronts, is a middle latitude storm or extratropical cyclone. A surface center of HIGH pressure is also called an anticyclone.

Note how the counterclockwise winds spinning around the LOW move cold air (this was shaded blue after class) southward (behind the cold front on the western side of the LOW). Clockwise winds spinning around the HIGH also move cold air into the region between the HIGH and the LOW. This bunch of cold air lies directly below the upper level trough. Remember how the previous figure explained that you would find cold air below and upper level trough. Now you can begin to understand where that cold air comes from.

Similarly the winds move warm air northward on the west side of the HIGH and the east side of the LOW (south of the warm front). These warm air regions lie below ridges on the eastern and western edges of the upper level chart. The orange shaded warm air regions were added after class.

Note the X marked on the upper level chart directly above the surface LOW. This is a good location for a surface LOW to develop and strengthen. We'll learn why this is true in class next Friday. A surface HIGH is often found to the east of an upper level ridge.
