![](winds_row1.jpg)

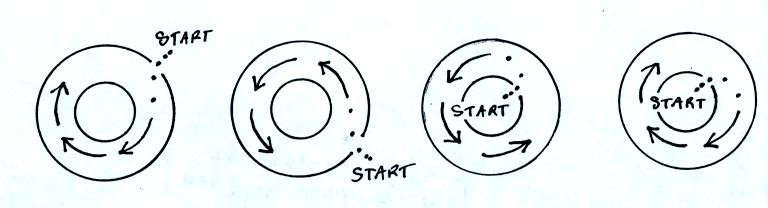

The air is initially stationary. The dots show the direction
of the initial motion. Determine whether each is a center of High
or Low pressure.
Does each show winds in the Northern or Southern hemisphere?
![](winds_row2.jpg)

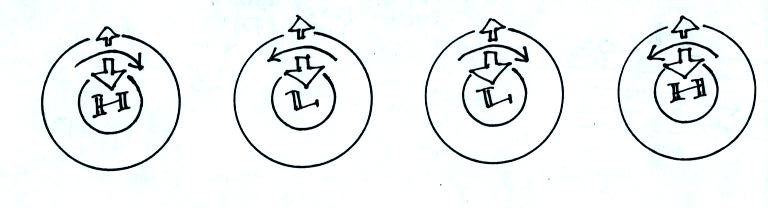

Identify the forces and determine the hemisphere.
![](winds_row3.jpg)

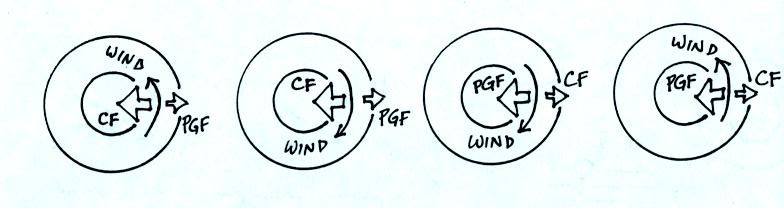

Determine whether each is a center of High or Low
pressure. Does each show winds in the Northern or Southern
hemisphere?
![](winds_row4.jpg)

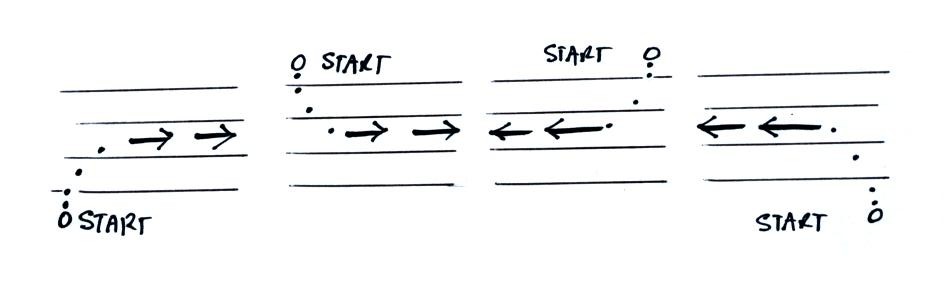

Is low pressure found at the Top or Bottom of each pattern? Does
each show winds in the Northern or the Southern hemisphere?
Once you think you have the answers, click here.
