There is enough time left this semester for one more optional assignment. It will be due in class next Tuesday. You will find answers to almost all of the questions in the Apr. 27 notes which will be appearing over the next 2 or 3 days. There is also a "summertime reading suggestions" section at the bottom of the Optional Assignment page. What is that all about?

The course evaluation questionaires were distributed today before the quiz.

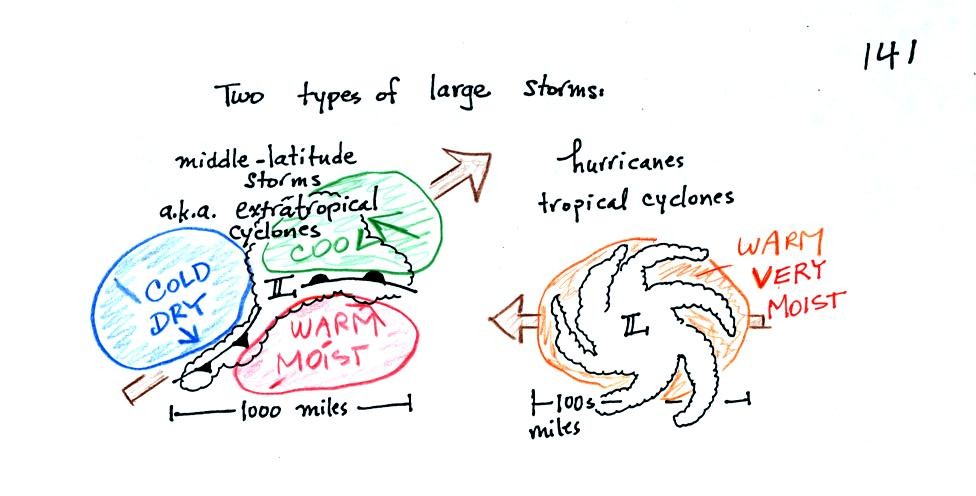

Now onto hurricanes. This wasn't covered in class. You'll find the following sketch comparing a middle latitude storm and a hurricane on p. 141 in the photocopied notes.

Some of the similarities and differences (mostly differences) between these two storms are noted in this table

Differences	Similarities	Differences
Found at middle latitudes (30 to 60 latitude) Can form over land or water	The term cyclone refers to winds spinning around low pressure, both storms have low pressure centers (the low pressure becomes high pressure at the top of a hurricane)	Found in the tropics (5 to 20 latitude) Only form over warm ocean water
Movement is from west to east	Upper level divergence cause lower the surface pressure and cause both types of storms to intensity	Movement is from east to west
Warm and cold air masses brought together by converging winds		Warm moist air mass only
Storm winds intensify with altitude		Storm winds weaken with altitude
Strongest storms usually occur in the winter		Strongest storms in the last summer to early fall

Hurricanes form over warm ocean water. The warm layer of water must be fairly deep to contain enough energy to fuel a hurricane and in order that mixing doesn't bring cold water up to the ocean surface. The atmosphere must be unstable so that thunderstorms can develop. Hurricanes will only form when there is very little or no vertical wind shear (changing wind direction or speed with altitude). Hurricanes don't form at the equator because there is no Coriolis force there.

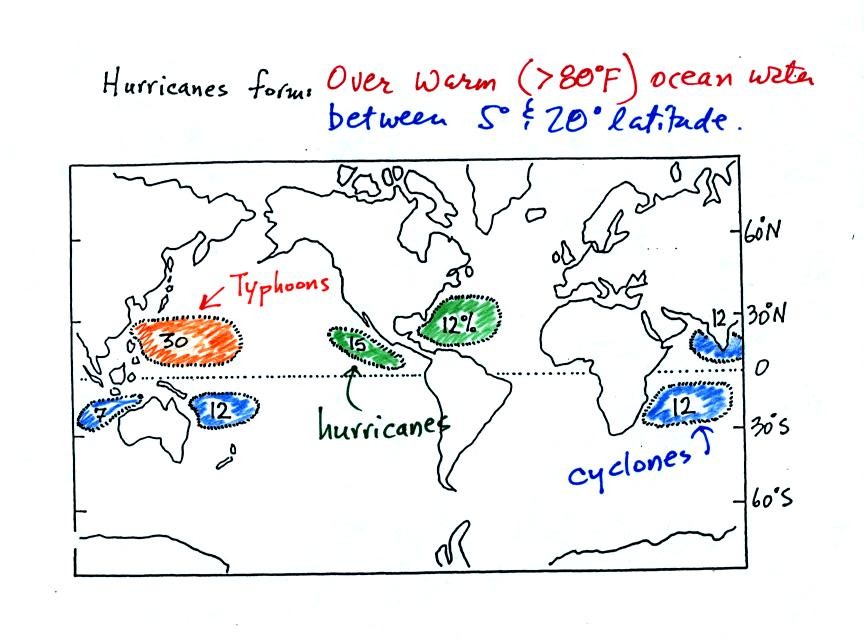

The figure above shows the relative frequency of tropical cyclone development in different parts of the world. The name hurricane, cyclone, and typhoon all refer to the same type of storm. In most years the ocean off the coast of SE Asia is the world's most active hurricane zone. Hurricanes are very rare off the east and west coasts of South America.

Note that more tropical cyclones form off the west coast of the US than off the east coast. The west coast hurricanes don't generally get the same attention as they move away from the coast and usually don't present a threat to the US.

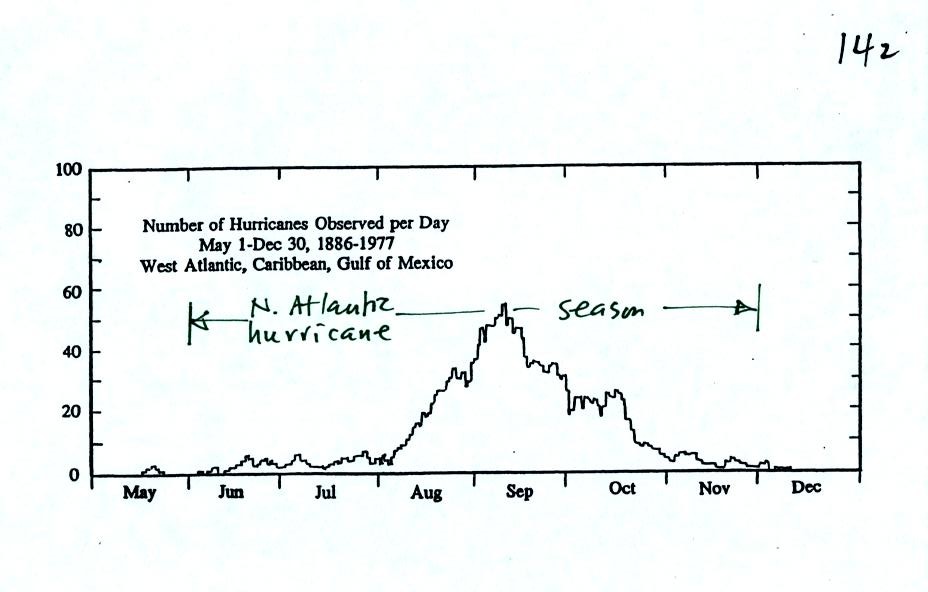

This figure shows when hurricanes are most common in the Atlantic. Hurricane season in the Atlantic officially runs from June 1 through to November 30. The peak of hurricane season is in September. Hurricane season in the Pacific begins on May 15 and runs through Nov. 30.

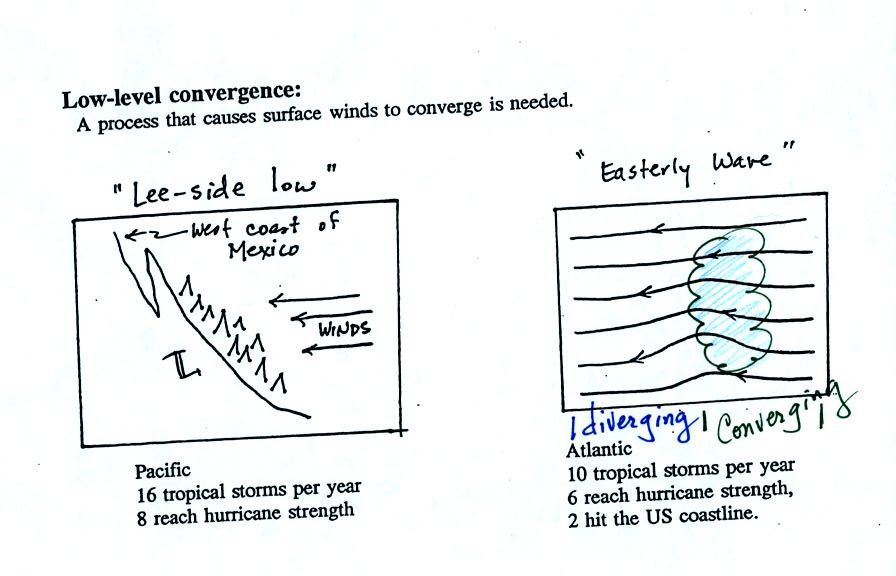

Some kind of meteorological process that produces low level convergence is needed to initiate a hurricane. One possibility, and the one that fuels most of the strong N. Atlantic hurricanes, is an "easterly wave." This is just a "wiggle" in the wind flow pattern. Easterly waves often form over Africa or just off the African coast and then travel toward the west across the N. Atlantic. Winds converge as they approach the wave and then divergence once they are past it. The convergence will cause air to rise and thunderstorms to begin to develop.

In some ways winds blowing through an easterly wave resembles traffic on a multi lane highway. Traffic will back up as it approaches a section of the highway with a closed lane. Once through the "bottleneck" traffic will begin to flow more freely.

In an average year, in the N. Atlantic, there will be 10 named storms (tropical storms or hurricanes) that develop during hurricane season. 2005 was, of course, a very unusual year. There were 28 named storms in the N. Atlantic in 2005. That beat the previous record of 21 names storms that had been set in 1933. Of the 28 named storms, 15 developed into hurricanes.

Winds blowing over mountains on the west coast of Mexico will sometimes form a surface low. Note there are generally a few more tropical storms and hurricanes in the E. Pacific than in the N. Atlantic. They generally move away from the US coast, though the Hawaiian Islands are sometimes affected.

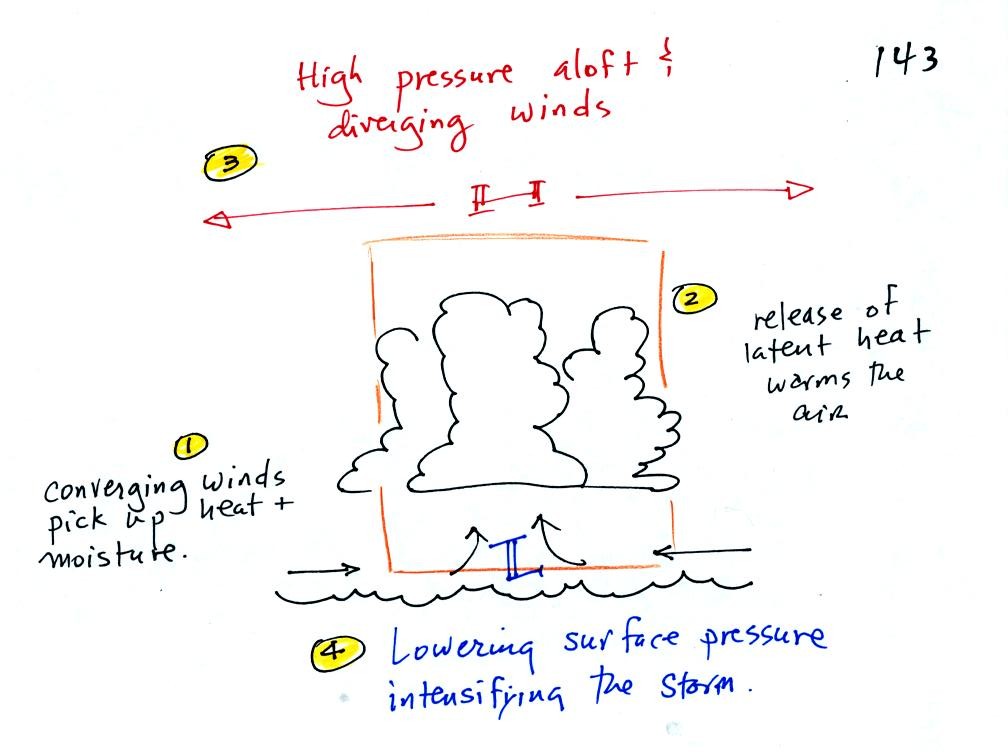

The next figure shows what can happen next when thunderstorms start to form together in a group and atmospheric conditions are right.

1. Surface winds converging into the center of the hurricane pick up heat and moisture from the ocean. These are the two mains sources of energy for the hurricane.

2.   Rising air cools and thunderstorm clouds form. The release of latent heat during condensation warms the atmosphere. The core of a hurricane is warm.

3.   Pressure decreases more slowly with increasing altitude in the warm core of the hurricane. The result is that pressure at the top center of the hurricane is higher than the pressure further out from the hurricane. Upper levels winds diverge and spiral outward from the top center of the hurricane.

4.   The upper level divergence causes the surface pressure to decrease. The speed of the converging surface winds increases and the storm intensifies.

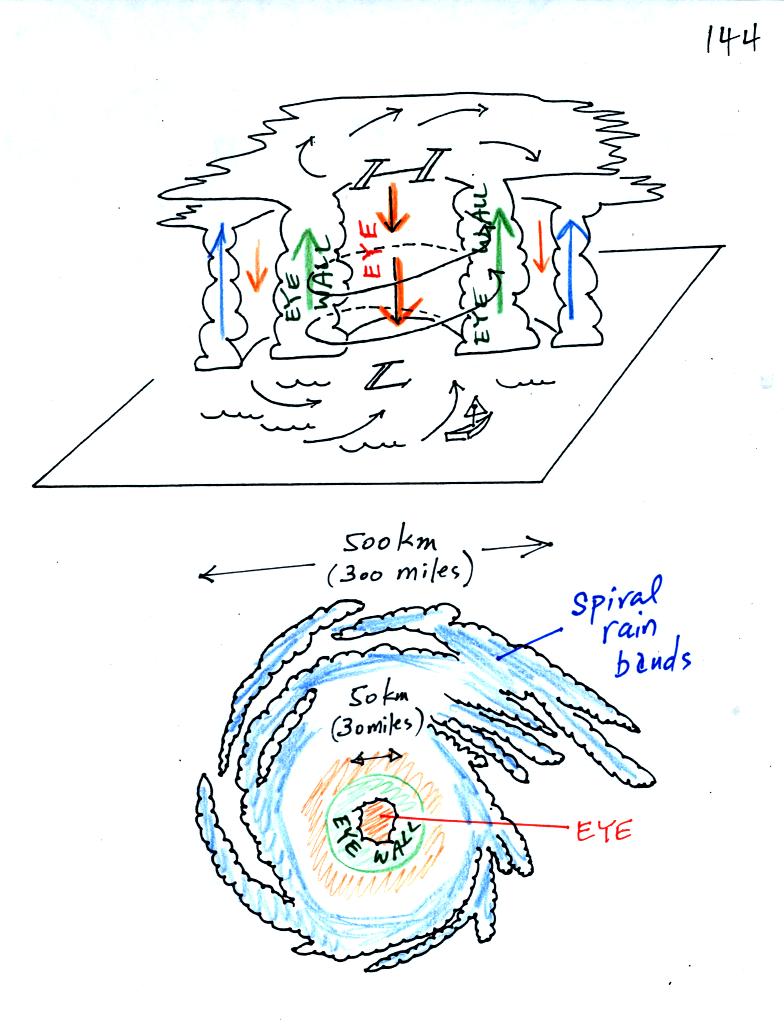

A crossectional view of a mature hurricane and a picture like you might see on a satellite photograph.

Sinking air (orange in the figure above) in the very center of a hurricane produces the clear skies of the eye, a hurricane's most distinctive feature. The eye is typically a few 10s of miles across, though it may only be a few miles across in the strongest hurricanes.

A ring of strong thunderstorms, the eye wall, surrounds the eye (green in the figure above). This is where the hurricane's strongest winds are found.

Additional concentric rings of thunderstorms are found as you move outward from the center of the hurricane (blue). These are called rain bands. Much of the hurricane is covered by high altitude clouds; you only start to see portions of the concentric rain bands as you near the edge of the storm.

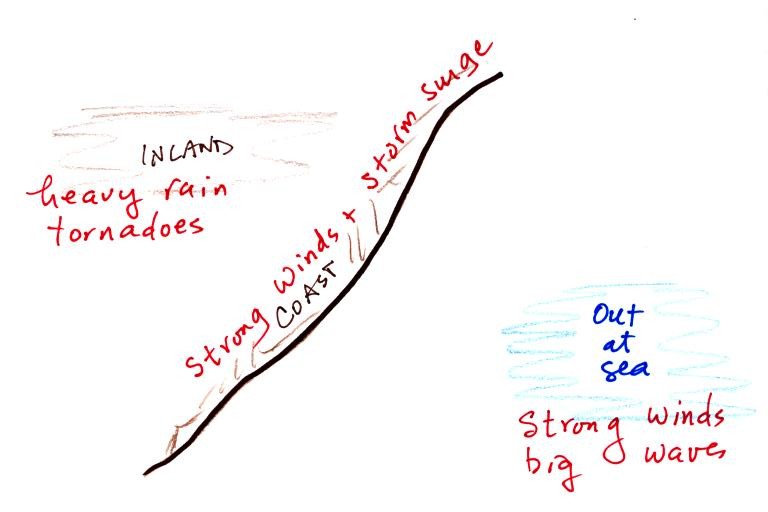

Hurricanes can, of course, be very destructive. Out at sea the main hazards are the strong winds and the large waves. The Perfect Storm by Sebastian Junger describes the sinking of the Andrea Gail in a strong hurricane like storm in October 1991. The exact fate of the fishing ship is not known but it may have been turned end over end by a large wave (pitch poled). Large waves can also flood a ship and begin to fill it with water.

Along a coast the greatest threat is from the hurricane winds and the storm surge, a rise in ocean level as the hurricane approaches and moves on shore. Large waves are superimposed on the storm surge.

The hurricanes winds slow quickly as it moves onshore, though tornadoes may form. The biggest threat is from flooding. Hurricanes can easily drop a foot or more of rain on an area as they pass through.

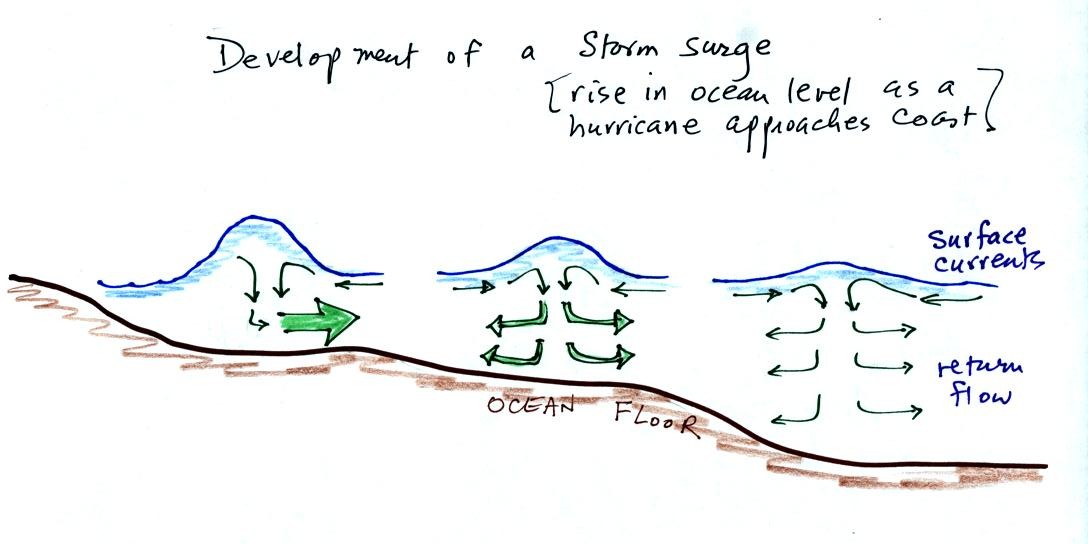

The next figure gives some idea of how the storm surge can form.

Out at sea, the converging surface winds create surface currents in the ocean that transport water toward the center of the hurricane. The rise in ocean level is probably only a few feet, though the waves are much larger. A return flow develops underwater that carries the water back to where it came from.

As the hurricane approaches shore, the ocean becomes shallower. The return flow must pass through a more restricted space. A rise in ocean level will increase the underwater pressure and the return flow will speed up. More pressure and an even faster return flow is needed as the hurricane gets near the coast.

Here is a link to the storm surge website (from the Hurricane Research Division of the Atlantic Oceanographic and Meteorological Labororatory). It has an interesting animation showing output from the SLOSH model used to predict hurricane storm surges.

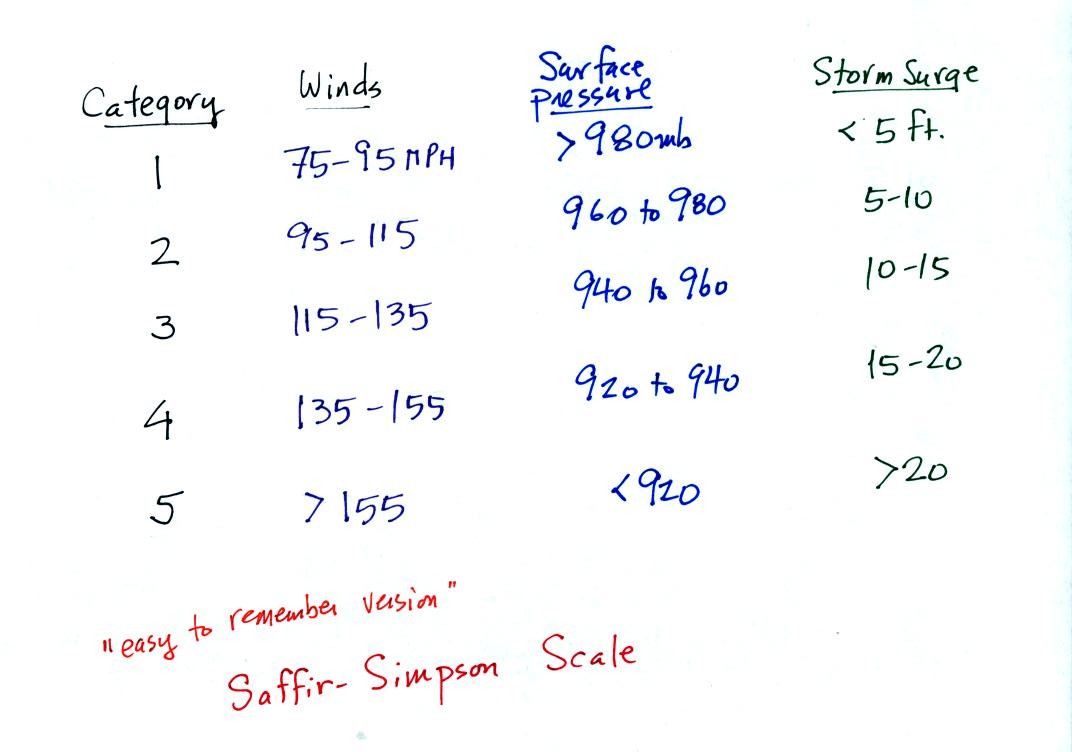

Here is an easy to remember version of the Saffir Simpson scale used to classify hurricane strength and damage potential.

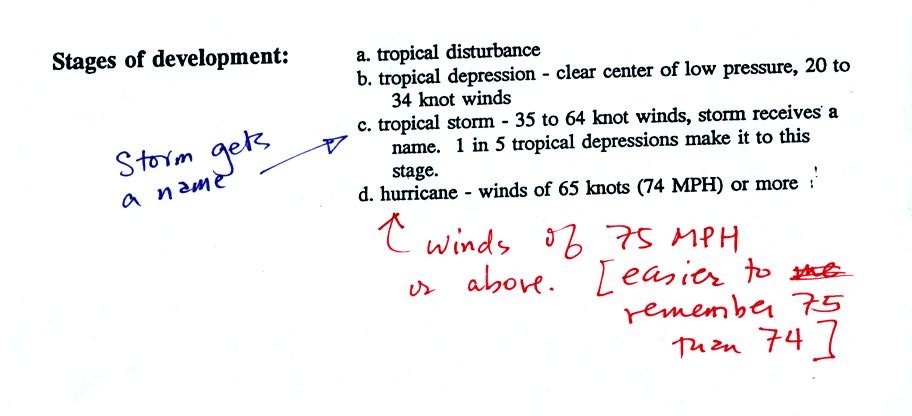

If you remember that winds must be 75 MPH or higher in order for a tropical cyclone to be a hurricane. In this easy to remember scale the winds increase by 20 MPH as you move up the scale.

Pressures decrease in 20 mb increments and the height of the storm surge increases by 5 feet. It is thought that parts of the Louisianna and Mississippi coasts were hit with a 30 ft. storm surge as Hurricane Katrina moved onshore last year.

Hurricanes are now alternately given male and female names. The names start with A at the beginning of the alphabet with the start of every new storm season. Five letters (Q, U, X, Y, and Z) are left out of the list. In 2005 in the N. Atlantic they ran out of letters of the alphabet and 6 Greek characters had to be used (Alpha, Beta, Gamma, Delta, Epsilon, and Zeta). The last storm of 2005 actually remained active into Jan. 2006.

The list of names repeats every 6 years, though the names of unusually strong or destructive hurricanes may be retired. There were 5 names retired following the 2005 N. Atlantic hurricane season (Dennis, Katrina, Rita, Stan, & Wilma).

Some of the record setting values listed on p. 145 in the photocopied notes are now going to have to be changed. Hurricane GILBERT (1988) no longer holds the record for the lowest sea level surface pressure reading in the Atlantic. That record now belongs to Hurricane WILMA (882 mb). Peak winds in Hurricane Wilma reached 185 MPH.

Hurricane ANDREW (1992) is no longer the most expensive natural disaster in US history. That record now belongs to Hurricane KATRINA and is up to about $75B over three times that of Andrew.

The 1900 Galveston hurricane still remains the deadliest natural disaster in US history. Hurricane MITCH remains the deadliest hurricane in the N. Atlantic in over 200 years. More than 20,000 people are now thought to have been killed during Hurricane MITCH.
