We have a few more humidity sample problems to work through.

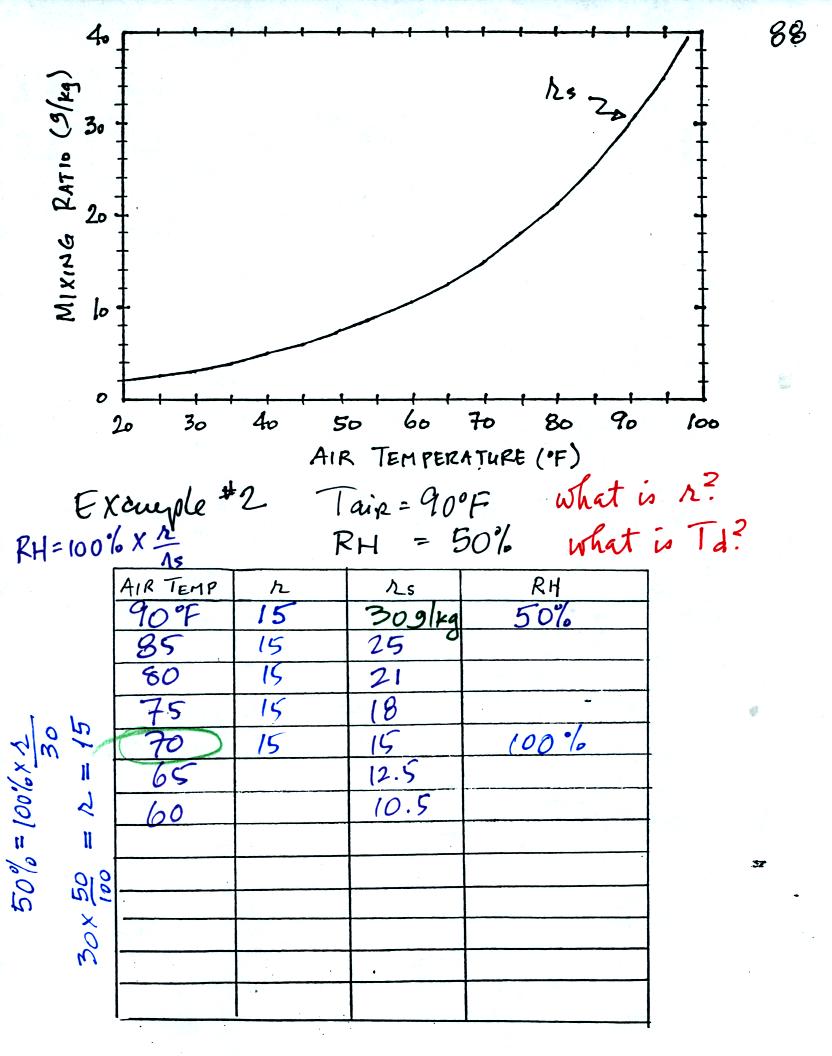

Here is the second sample problem. Given an air temperature of 90 F and a relative humidity of 50% you are supposed to figure out the mixing ratio (15 g/kg) and the dew point temperature (70 F). The problem is worked out in detail below.

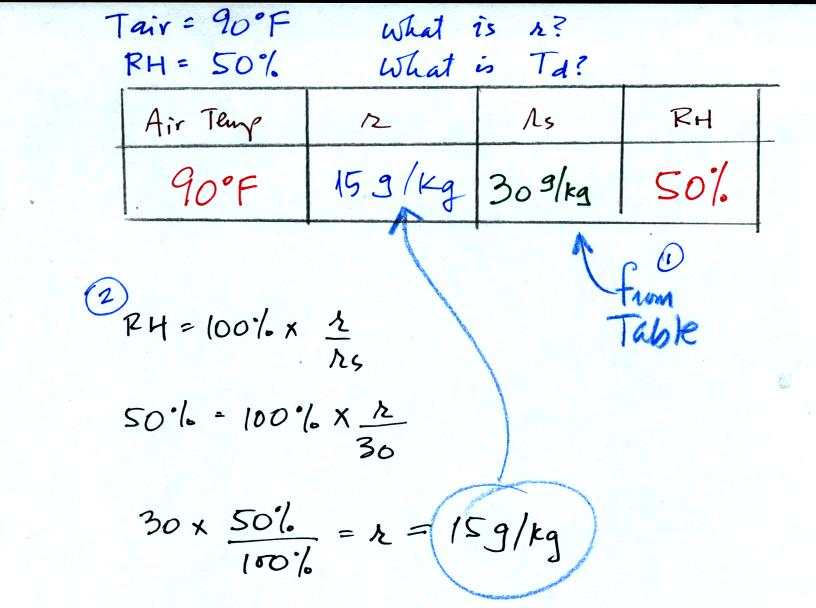

First you fill in the air temperature and the RH data that you are given. Since you know the air's temperature you can look up the saturation mixing ratio (30 g/kg). Then you can substitute into the relative humidity formula and solve for the mixing ratio (15 g/kg).

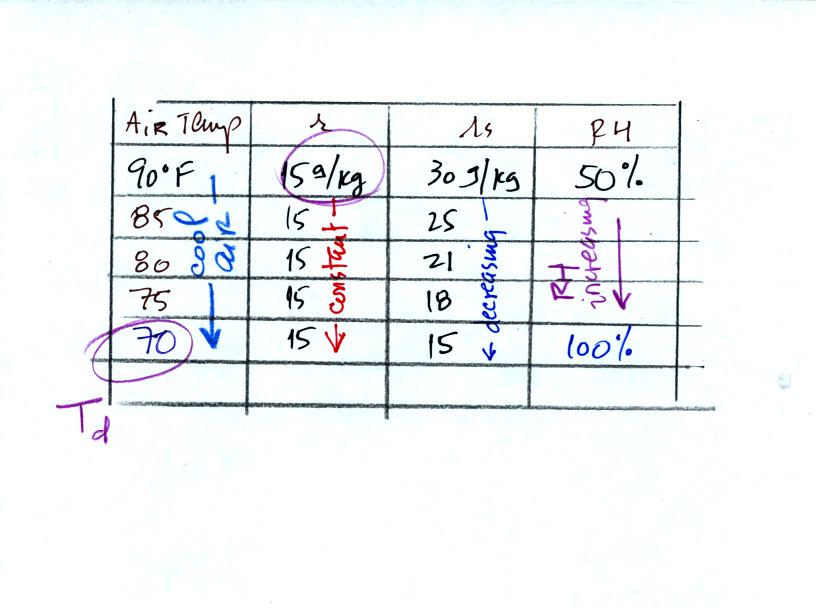

Finally you imagine cooling the air. Cooling causes the saturation mixing ratio to decrease, the mixing ratio stays constant, and the relative humidity increases. In this example the RH reached 100% when the air had cooled to 70 F. That is the dew point temperature.

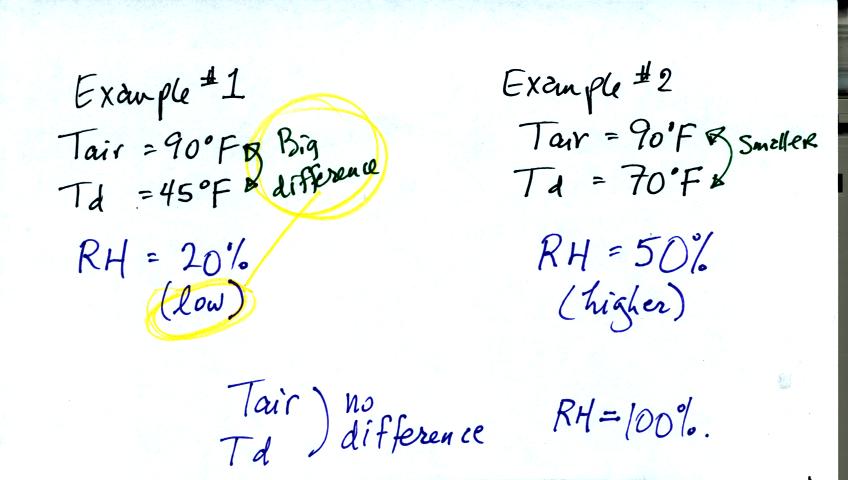

Something new you can learn from Examples 1 and 2. In the first example the RH was low and the difference between the air and dew point temperatures was large. In the second example, the RH was higher and the difference between the air and dew point temperatures was smaller. If there were no difference between the air and dew point temperature the RH would be 100%.

In the 3rd problem we started with RH=50% and r=10.5 g/kg.

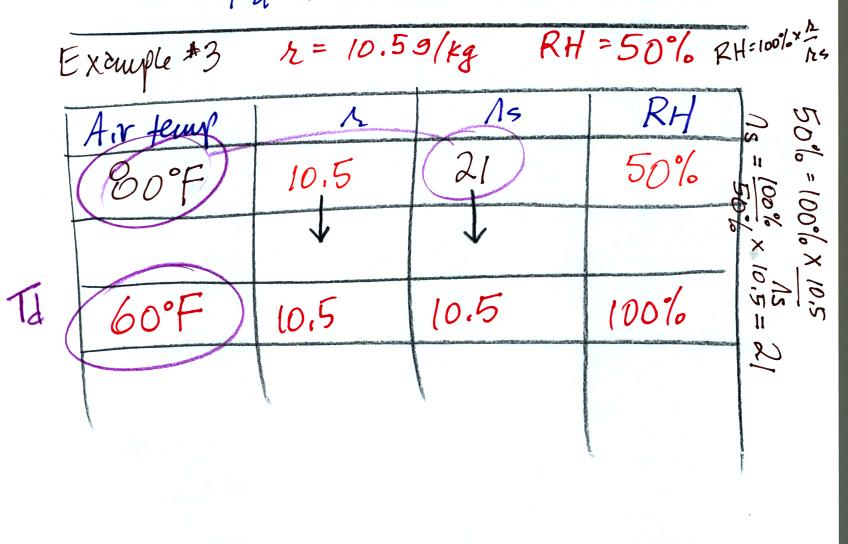

The air contains 10.5 g/kg of water vapor, this is 50% of what the air could potentially hold. So the air's capacity, the saturation mixing ratio must be 21 g/kg. Once you know the saturation mixing ratio you can look up the air temperature in a table. Then you imagine cooling the air until the RH becomes 100%. This occurs at 60 F. The dew point is 60 F.

In the last example problem we start with an air temperature of 90 F and a dew point temperature of 50 F.

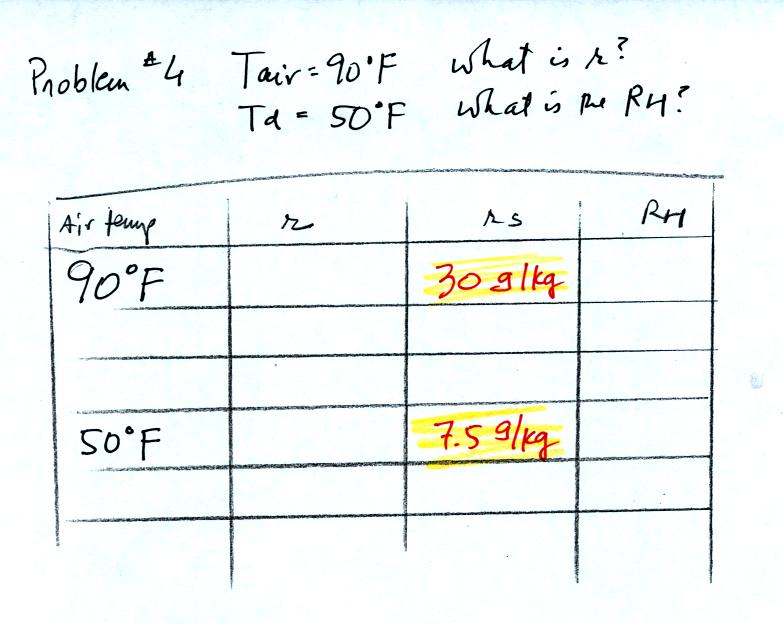

The first thing you can do is look up the saturation mixing ratio for 90 F and 50 F air.

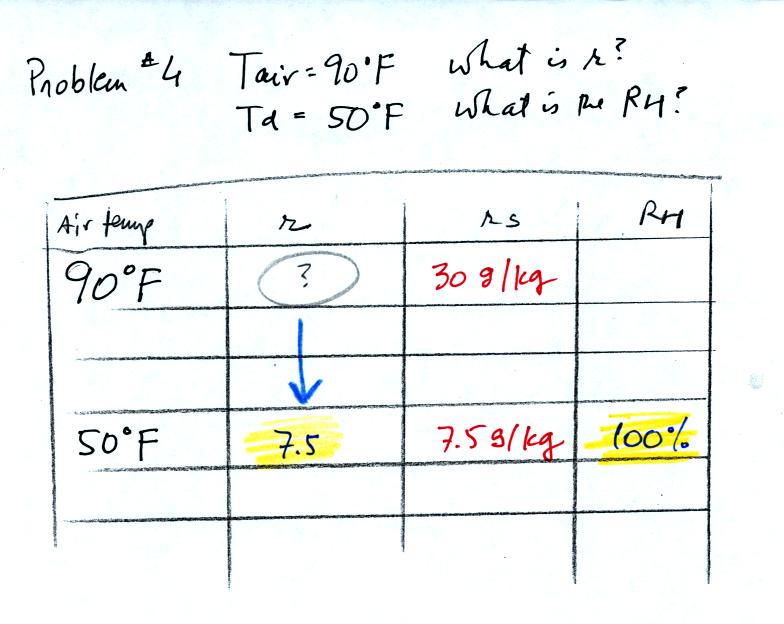

Then we know that if we cool the 90 F air to 50 F the RH will become 100%. Since we know the saturation mixing ratio value at 50 F is 7.5 g/kg we can say the mixing ratio is 7.5 g/kg.

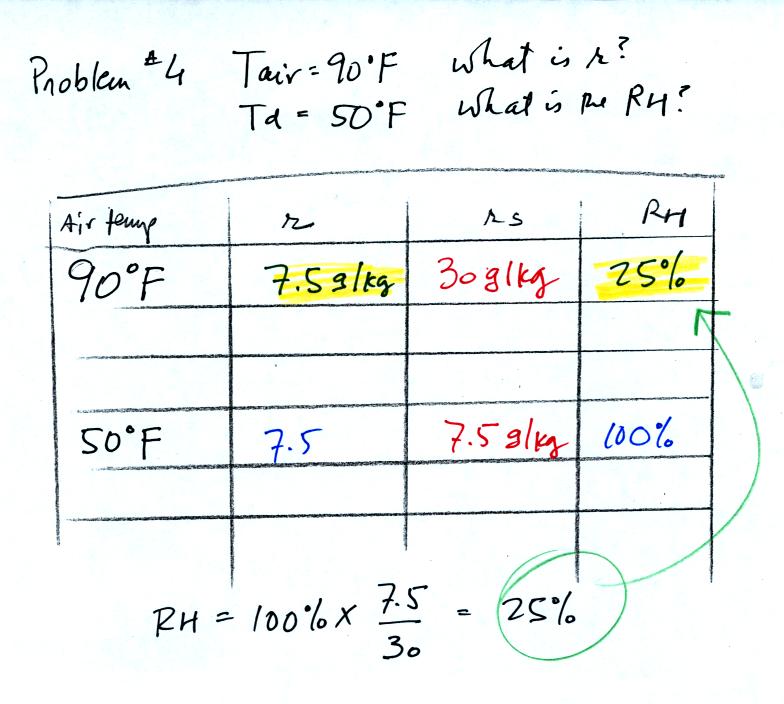

Now that we know the mixing ratio we can compute the relative humidity.

Dew point temperature and mixing ratio both give you an idea of the actual amount of water vapor in the air. If you know the mixing ratio you can determine the dew point temperature. If you know the dew point temperature you can determine the mixing ratio (that's what we did in this problem).

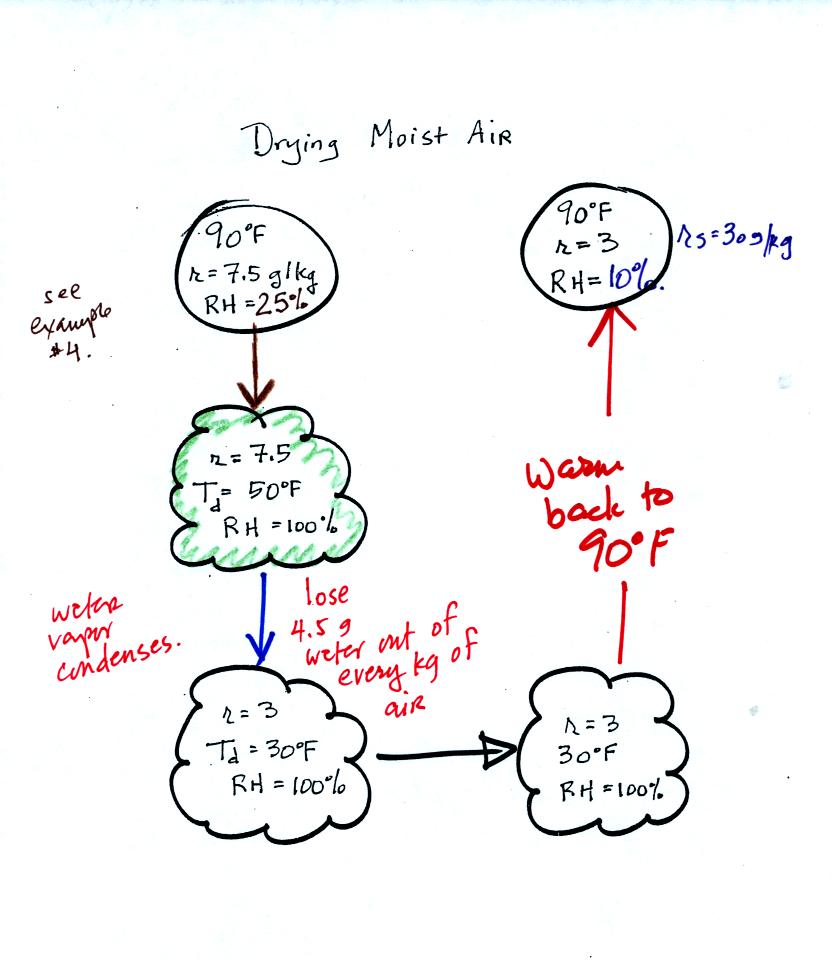

90 F air with 25% relative humidity is cooled to 50 F the dew point. The relative humidity reaches 100% at that point. Then the air is cooled some more, to 30 F. The 30 F air can't hold the 7.5 g/kg of water vapor that was found in the 50 F air. Some of the moisture must condense. Next the 30 F air now containing only 3 g/kg of water vapor is warmed to 90 F, the starting temperature. The air now has a RH of only 10%. The air contains less than half the moisture it did originally.

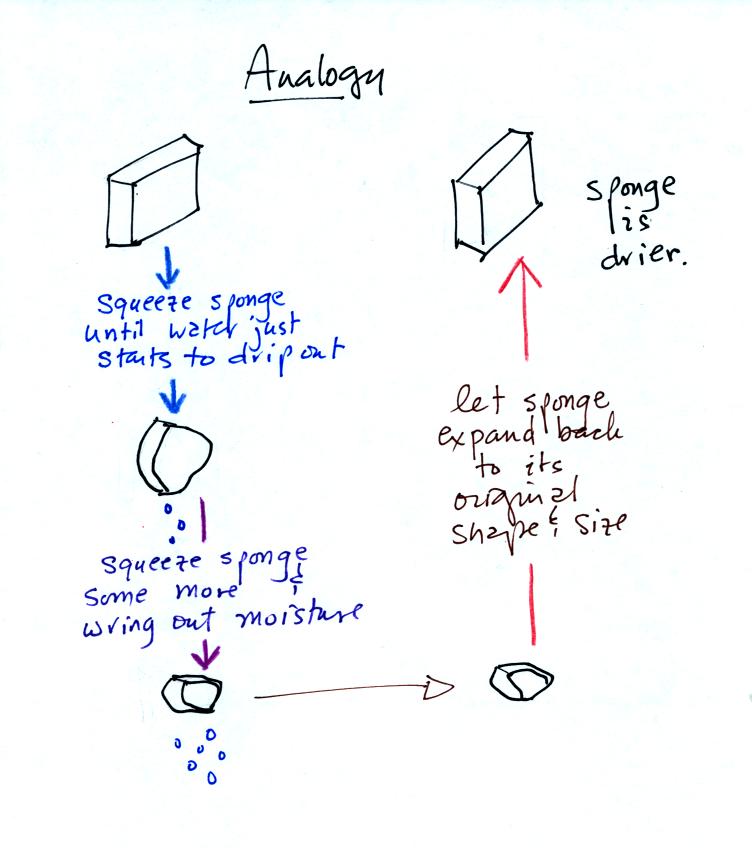

This figure was not shown in class. Cooling moist air below the dew point is kind of like squeezing out or wringing out a wet sponge. You start to squeeze the sponge until water starts to drop out and then squeeze it some more. Then you let go of the sponge and let it expand back to its orignal shape and size. The sponge will be drier than when you started.

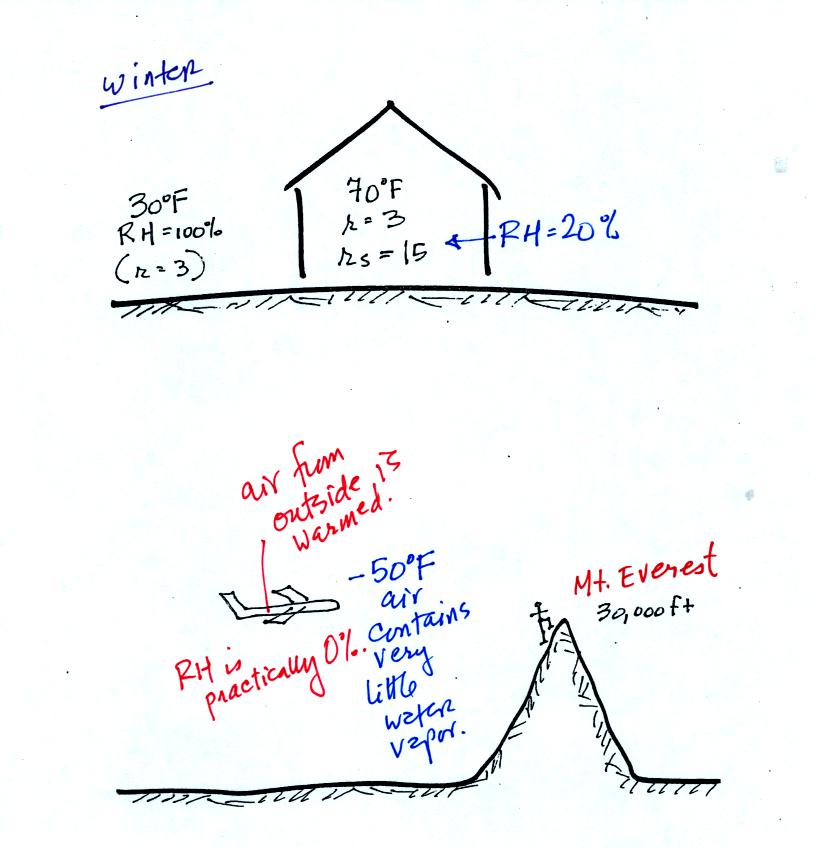

These two figures show where this kind of thing can occur. In the winter cold air is brought inside your house or apartment and warmed. Imagine 30 F air with a RH of 100 % brought inside and warmed to 70 F. The RH will decrease to 20%.

The air in an airplane comes from outside the plane. The air outside the plane is very cold (-50 F perhaps) and contains very little water vapor. When brought inside and warmed to a comfortable temperature the RH of the air in the plane will be very close 0%. Actually the ventilation system in the plane will add moisture to the air so that it doesn't get that dry.

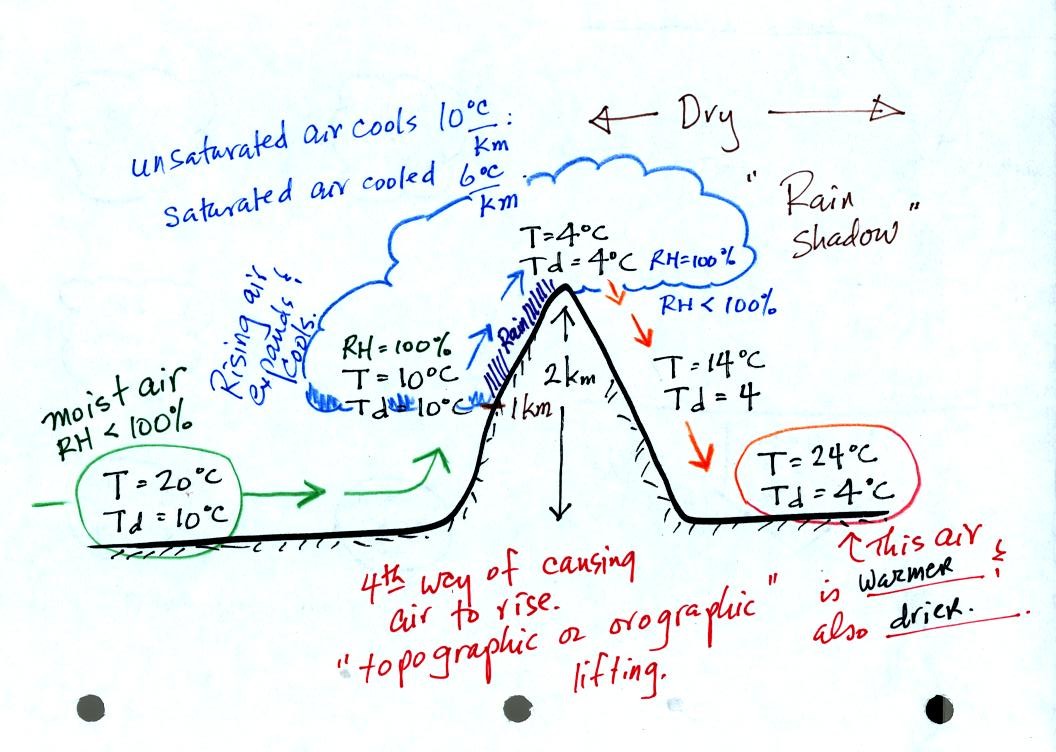

Here's an important cooling and drying moist air example. Moist air traveling up and over a mountain cools to its dew point temperature at 1 km altitude. A cloud forms at that point. The parcel of air continues to rise and cool. This additional cooling below the dew point "squeezes" moisture out of the air. The moisture falls to the ground as rain. Note that rising unsaturated air cools at a rate of 10 C/km between 0 and 1 km altitude, saturated air cools at 6 C/km (release of latent heat in the rising air during condensation partially offsets the cooling due to expansion) between 1 and 2 km altitude.

The air travels back down the right side of the mountain and warms. Note the air ends up warmer (24 C vs 20 C) and drier (Td = 4 C vs Td = 6 C) than when it started out. The downwind side of the mountain is referred to as a "rain shadow" because rain is less likely there than on the upwind side of the mountain.

Note topographic or orographic lifting is a 4th way of causing air to rise (convergence into low pressure, convection, and fronts are the other 3 ways). Rising air is important because rising air expands and cools. When you cool moist air the RH increases. The RH may increase enough (if you cool the air to the dew point temperature) that a cloud can form.

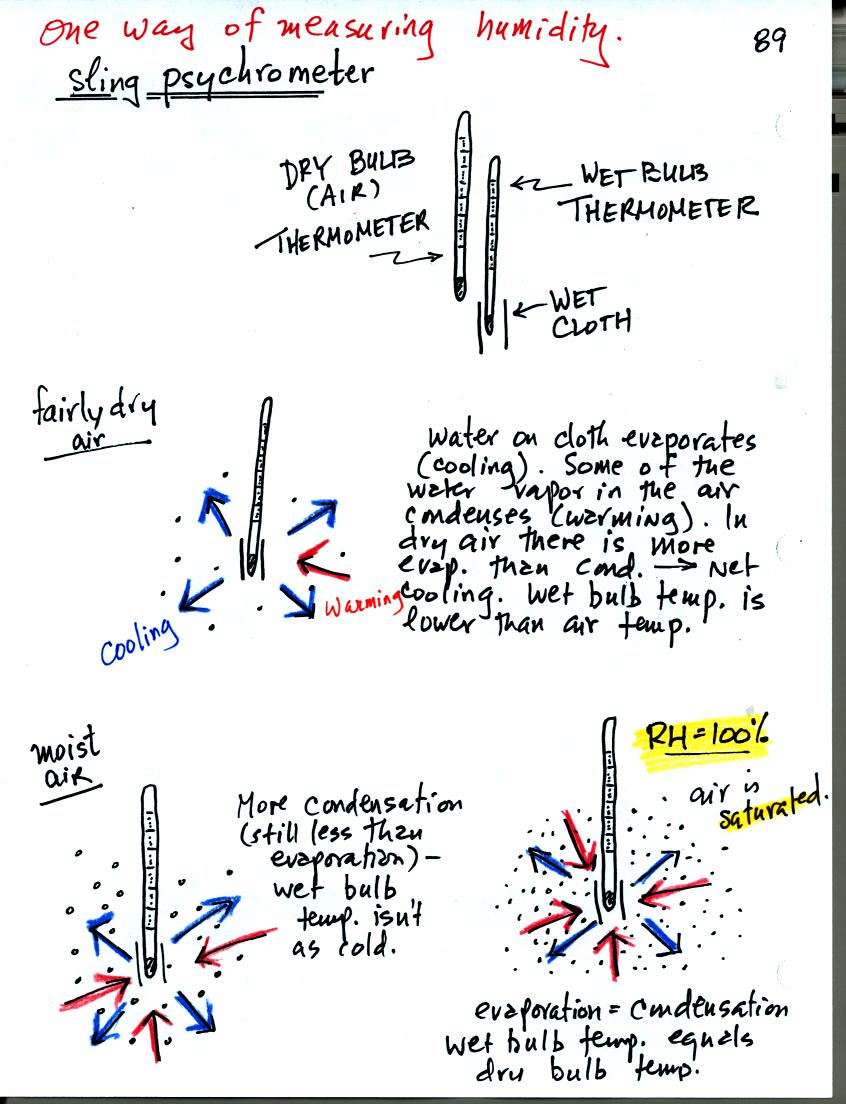

You can use tabulated data (see Appendix D in your textbook) and measurements made with a sling psychrometer to measure the dew point and relative humidity. A sling psychrometer consists of two thermometers mounted side by side. One of the thermometers is covered with a piece of cloth that is moistened with water. As the thermometers are swung through the air, water will evaporate from the wet thermometer. Evaporation is a cooling process. At the same time some of the water vapor from the surrounding air will condense onto the thermometer and warm it. The temperature difference between the two thermometers provides a measure of the amount of moisture in the air.

Here's another look at what happens. In the first case, fairly dry air, the wet thermometer starts out at 70 F. Because there are 4 arrows of evaporation and only 1 arrow of condensation the thermometer cools quickly to 45 F. At 45 F the water on the thermometer evaporates at a slower rate. The one arrow of evaporation is balanced by 1 arrow of condensation. The wet thermometer won't cool below 45 F. Note the large, 25 F, difference between the dry and wet bulb thermometers.

In the second case, moister air, the thermometer starts at 70 F again with 4 arrows of evaporation. Because the air is moister there are 3 arrows of condensation. The thermometer cools to 65 F. That lowers the rate of evaporation slightly. Now the rates of evaporation and condensation are equal. With this moister air there isn't as much of a difference between the dry and wet bulb thermometer readings.

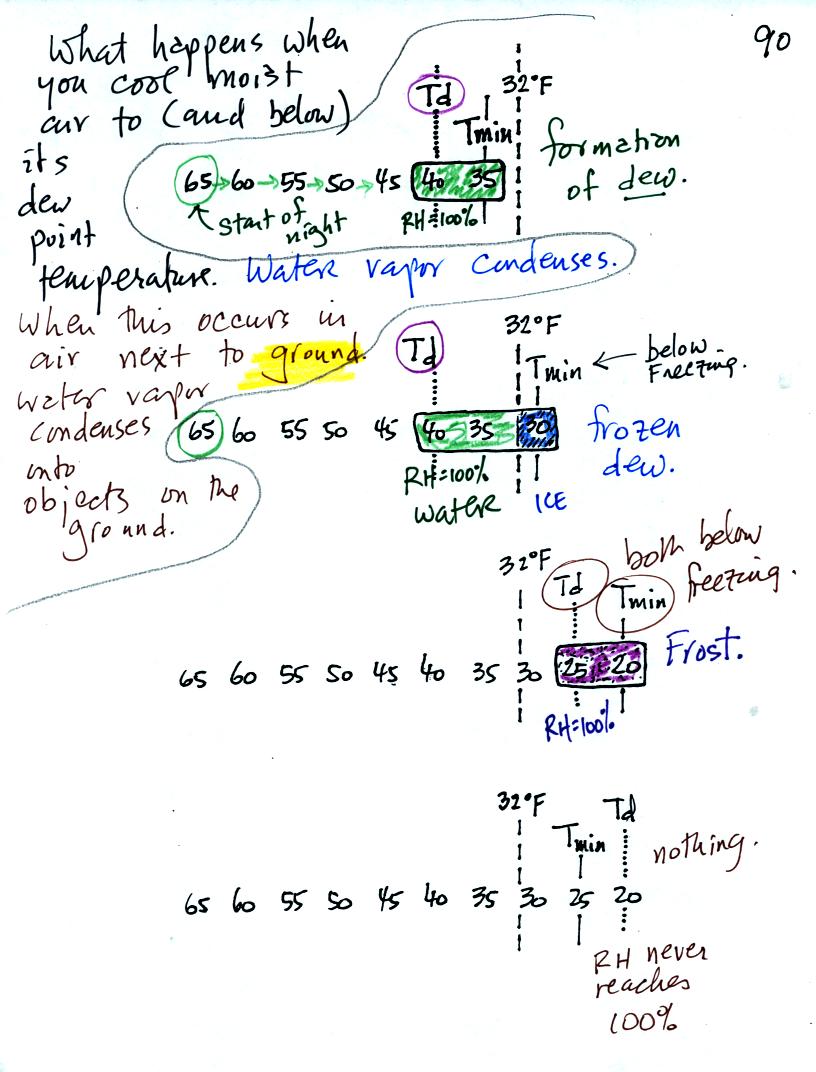

Now we have seen that when you cool air to its dew point (or below the dew point), water vapor begins to condense out of the air. When this occurs in air next to the ground the water vapor condenses onto objects on the ground.

In the first example air that starts out with a temperature of 65 F at the beginning of the night. It cools to 35 F during the night. When the air reaches 40 F, the dew point, the RH reaches 100%. As the air temperature drops below the dew point and cools to 35 F water vapor will condense onto the ground or objects on the ground (such as an automobile). This is dew.

The dew point is the same but the nighttime minimum temperature is below freezing in the second example. Dew will form when the air temperature reaches 40 F. Once the air temperature drops below 32 F the dew will freeze and form frozen dew.

In the third example both the dew point and nighttime minimum temperatures are below freezing. When the air temperature drops below the dew point, water vapor turns directly to ice (deposition) and forms frost. The dew point in this case is sometimes called the frost point.

The air never becomes saturated in the fourth example because the nighttime minimum temperature never cools to the dew point.

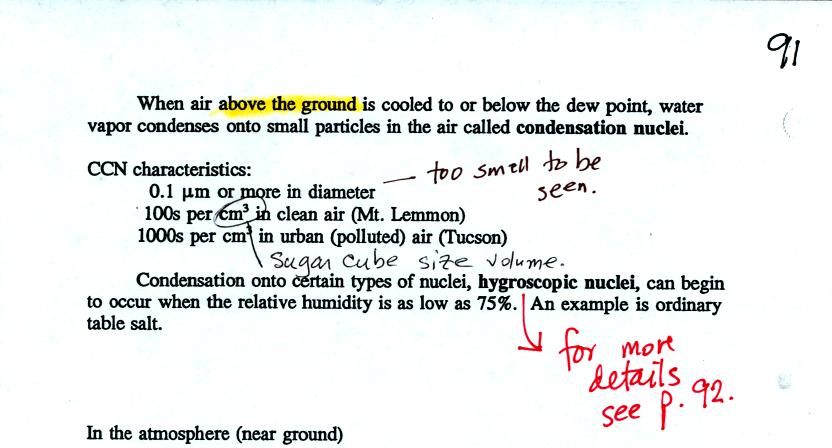

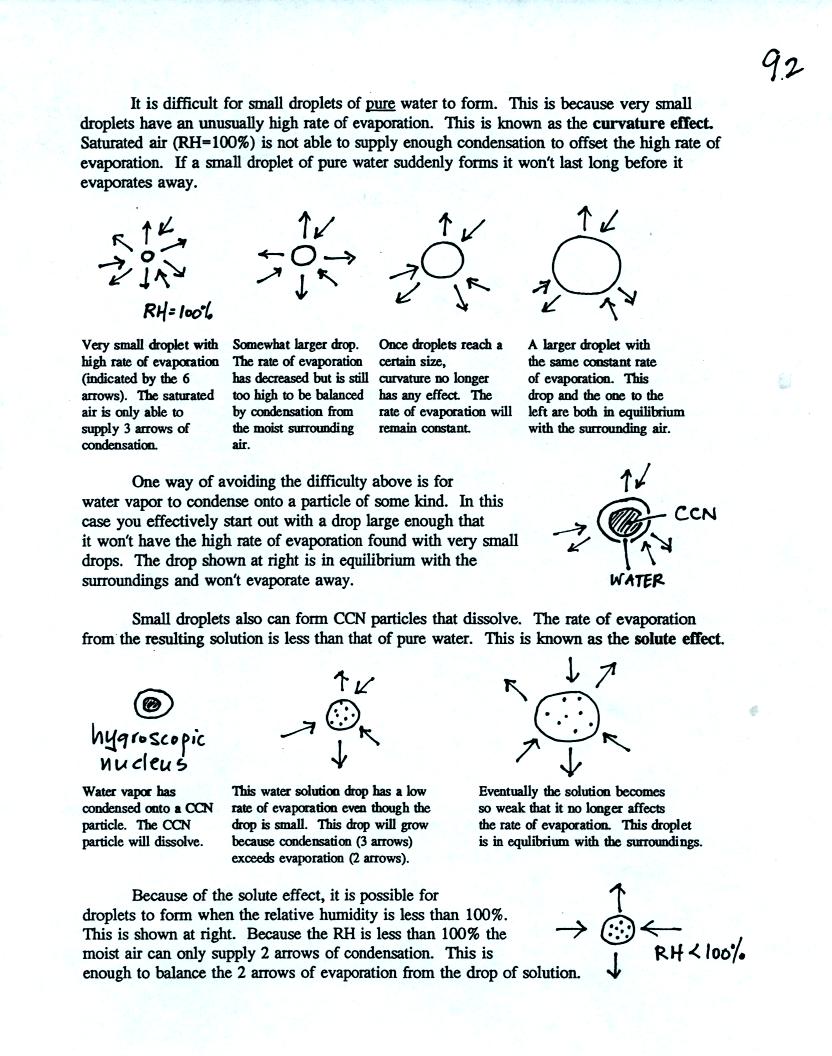

When air above the ground becomes saturated the water vapor condenses onto small particles in the air called cloud condensation nuclei (CCN). With some hygroscopic materials condensation begins when the RH is less than 100% (see p. 92, reproduced at the end of today's notes, for more explanation of why this occurs).

A short video showing how water vapor would, over time, preferentially condense onto small grains of salt rather than small spheres of glass.

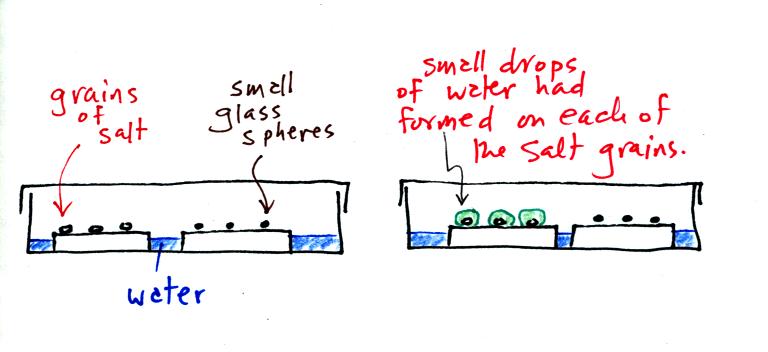

The start of the video at left showed the small grains of salt were placed on a platform in a petri dish containing water. Some small spheres of glass were placed in the same dish. After about 1 hour small drops of water had formed around each of the grains of salt (shown above at right).

Here's some more information about the formation of cloud droplets. This wasn't covered in class and you do not need to worry about learning about these details. This is one of those "for further reading" sections.
