The Carbon Cycle

The recycling of elements among the various components of the Earth system is key to the continued functioning of the Earth as a living planet. Although many elements are critical, none is more central to the workings of the Earth system than carbon. All life (at least on Earth) is based on carbon. In fact carbon makes up about 50% of our dry weight (excluding water). Ecologists study ecosystems by tracking carbon exchanges through the system. Both biological and physical processes are involved in the recycling of carbon, and they are so closely intertwined that it is difficult to separate the two. In this class we will do no more than look at a simplified overview of the carbon cycle focussing mainly on the atmospheric reservoir of carbon.

Beside being the central constituent of all organic compounds, carbon in the atmosphere, which is mostly in the form carbon dioxide, is an important greenhouse gas. Without the greenhouse effects of carbon dioxide in the atmosphere, life as we know it would not exist on Earth because the surface temperatures would be too cold. However, the actions of man have disrupted the natural carbon cycling by causing imbalances in the flow of carbon to and from the atmospheric reservoir. The net effect has been a sharp increase in the amount of carbon dioxide stored in the atmosphere. The biggest concern with this is how will the extra carbon dioxide affect the Earth's climate and in turn its life? As we will see this is a very difficult question to answer due to the complexities of both the carbon cycle and the climate system, which are interlinked. The ultimate outcomes stemming from anthropogenic perturbations to the carbon cycle remain quite uncertain. Thus, what, if anything, should be done about the human-caused increases in the carbon dioxide concentrations in the atmosphere remains a hotly debated issue.

The Pre-industrial Carbon Budget

In lecture, we will draw simplified budget diagrams for carbon. The first diagram will represent the carbon budget before the industrial revolution. Later the anthropogenic perturbations due to fossil fuel burning and deforestation will be added. The paragraphs that follow describe some of the reservoirs and fluxes involved in the carbon budget.

Carbon dioxide (CO₂), a colorless gas having a faint, sharp odor and a sour taste; it is a minor component of the Earth's atmosphere (presently about 372 parts per million, which is up from about 280 ppm at the time of the industrial revolution).

The source of the carbon found in living matter is carbon dioxide (CO₂) in the air or dissolved in water.

Algae and terrestrial green plants (producers) are the chief agents of carbon dioxide fixation through the process of photosynthesis, in which carbon dioxide and water are converted into simple carbohydrates.

Carbohydrates are used by the producers to carry on metabolism, the excess being stored as fats and polysaccharides. The stored products are then eaten by consumer animals, from protozoan to man, which convert them into other forms.

All animals return CO₂ directly to the atmosphere as a by-product of their respiration.

The carbon present in animal wastes and in the bodies of all organisms is released as CO2 by decay, or decomposer organisms (chiefly bacteria and fungi) in a series of microbial transformations.

Part of the organic carbon--the remains of organisms--has accumulated in the Earth's crust as fossil fuels (e.g., coal, gas, and petroleum), limestone, and coral. The flux linkages between the atmosphere and lithosphere were probably closely balanced before the industrial revolution. Note how slow these processes are (small fluxes) compared withe exchanges of carbon between the atmosphere and oceans or land.

Carbon dioxide is continuously exchanged between the atmosphere and the ocean. The distribution of sources and sinks of CO₂ is tied to the circulation and productivity patterns of the oceans. In regions of the ocean where there are high rates of primary productivity (building of organic material through photosynthesis), there is a net flux of carbon from the atmosphere into the oceans. Conversely, in upwelling regions where the ocean water is CO₂ rich, the net flux of carbon is from the oceans into the atmosphere. Before the carbon cycle was disturbed by human activities, the flux of CO₂ into the ocean was probably closely balanced by the flux out.

The Post-industrial Carbon Budget

After 1850, humans began to significantly alter the balanced carbon cycle through burning fossil fuels and deforestation. The carbon stored in fossil fuels is now being released in vast amounts as CO₂ when these fossil fuels are "burned" or used as energy sources. Deforestation adds carbon dioxide to the atmosphere through two processes: (1)Trees that have been removed, no longer participate in photosynthesis which removes CO₂ from the atmosphere and (2)When these trees are burned or decay, they release all the stored carbon they contain. In lecture, these processes will be added to the pre-industrial carbon budget diagram.

We can fairly well compute the rate of carbon release to the atmosphere by fossil fuel burning and deforestation. And if these were the only changes to the carbon budget, we could easily calculate how fast the atmospheric reservoir of carbon would increase. However, the system itself (and any intertwined systems) responds to these human perturbations. We do not understand the details and complexities of the carbon cycle well enough to accurately predict how the various fluxes and reservoirs will change with time.

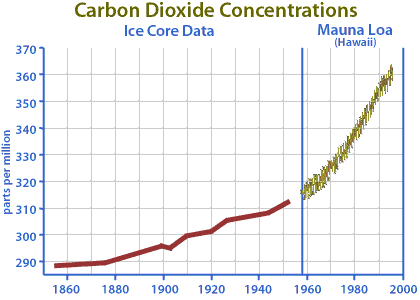

One thing that we do know for sure is that the concentration of CO₂ in the atmosphere is increasing. We have very accurate measurements taken at Mauna Loa, HI since the late 1950s. Prior to that we can estimate the atmospheric CO₂ concentrations from ice core samples.

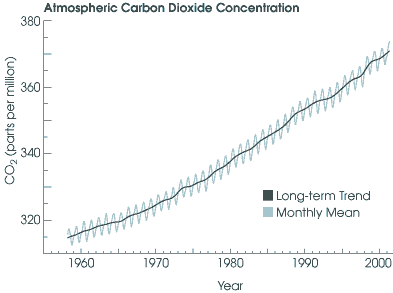

Close-up Atmospheric CO2 concentration from Mauna Loa

No doubt that CO₂ levels in the atmosphere are increasing. The year to year fluctuations are tied to the seasonal cycle of plant growth in the Northern Hemisphere's terrestrial ecosystems. In the Northern hemisphere summer, land plants grow by photosynthesis, taking in lots CO₂, and reduce the CO₂ in the atmosphere. Conversely, in the Northern hemisphere winter, photosynthetic activity decreases, but the processes of respiration and decay continue, thus CO₂ levels in the atmosphere increase.

Scientists have developed models of the carbon cycle to make predictions of how the system will respond to the human perturbations. One response that we are reasonably sure about is that the oceanic uptake of CO₂ has increased in response to the increase in the atmospheric concentrations of CO₂. However, there remains a problem: Our models of the carbon cycle predict that the present day concentration CO₂ in the atmosphere should be 445 parts per million, but the measured amount is 377 ppm; therefore, more CO₂ is being removed from the atmosphere than is predicted. This discrepancy has been called the "missing sink" problem for atmospheric CO₂.

For the decade of the 1980s, the global carbon cycle can be summarized as follows (units are PgC. One Pg [petagram] = one billion metric tonnes = 1000 x one billion kg):

Atmospheric increase	=	Emissions from Fossil fuels	+	Net emissions from changes in land use	-	Oceanic uptake	-	"Missing" carbon sink
3.3 (±0.2)	=	5.5 (±0.5)	+	1.6 (±0.7)	-	2.0 (±0.8)	-	1.8 (±1.2)

Attention on the global carbon cycle over more than 25 years has focused on the apparent imbalance in the carbon budget in the above equation -- the so-called "missing sink," missing because the accumulation of carbon has not been observed.

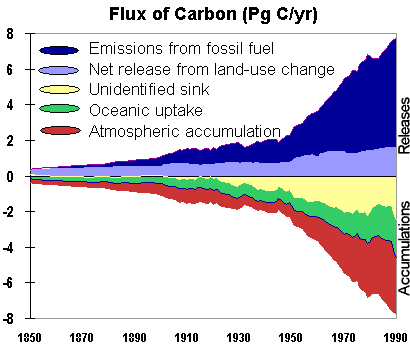

The terms in the global carbon equation above can be found graphically over the period 1850-1990 in the figure below:

Additional information can be found at the Woods Hole Research Center web pages for the Carbon Cycle

Where is this "missing" carbon going? The most accepted explanation, though not scientifically proven, is that much of the missing carbon is being taken up and stored in land plants. In particular, regrowth of the northern hemisphere forests is thought to be the answer. During the days of rapid migration of European peoples around the globe (1700s - early 1900s), much of the endemic northern forests were cleared. Since that time, there has actually been an increase in forest coverage. This regrowth may be responsible for sequestering carbon from the atmosphere. Another possibility is related to global warming. Global average temperatures have increased (especially since the 1980s). This seems to have extended the growing season in northern forests. The longer growing season could allow trees to take in more CO₂. These explanations seem reasonable considering that forests contain about 90% of all of the living biomass on land. Those of you who have followed the global warming debate closely, know that part of the Kyoto Treaty contains "carbon credits" for countries that plant new trees that should effectively remove CO₂ from the atmosphere.

Finally, keep this in mind as we discuss the global warming issue: One of the many uncertainties in the prediction of future global warming is our poor understanding of the carbon cycle itself. Even though we know how much CO₂ is being added to the atmosphere by fossil fuel burning, we are not able to predict with certainty what happens to all of it. Of course, this limits our ability to predict how much warming may occur.
