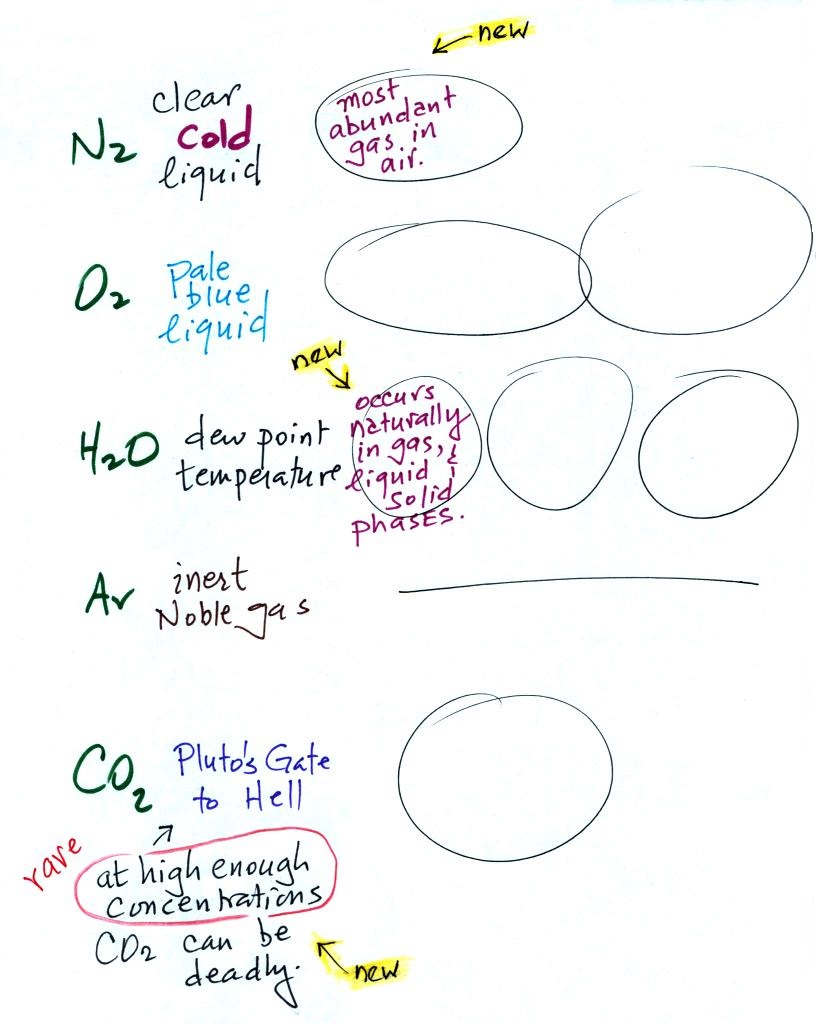

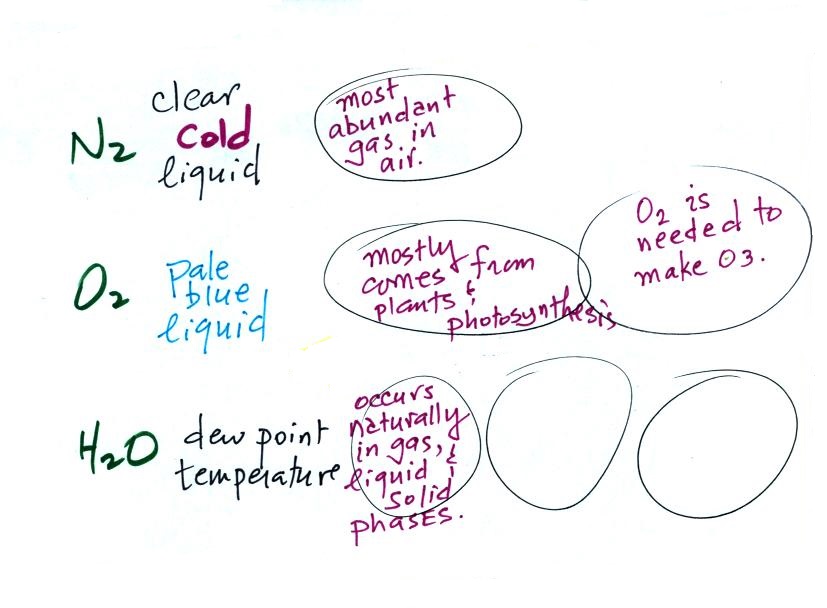

Here's the list again of the 5 main gases in air and what we learned about them in class on Tuesday.


We're going to be learning more about most of these in class today.   We could fill in some of this information right away.  Something to remember about liquid nitrogen is that it's the most abundant gas in air.  It's pretty humid outside today, there's a lot of water vapor in the air.  You can't see the water vapor because it's an invisible gas.  But you can see the clouds.  They're made of small droplets of liquid water and probably also crystals of solid ice.  Water is commonly found in all three phases: solid, liquid, and gas.   I told you about Pluto's Gate to Hell in class on Tuesday.  The deadly vapor coming out of the gate was carbon dioxide.  We don't ordinarily think of CO2 as being deadly, that's true only when the CO2  is found in high enough concentrations and that's pretty rare.

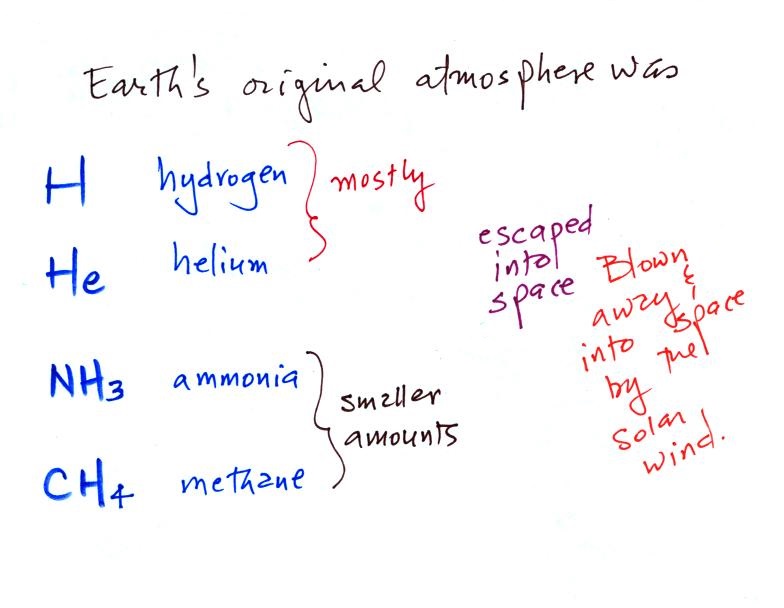

The atmosphere we have today (mostly nitrogen, oxygen, water vapor, and argon) is very different from the earth's original atmosphere which was mostly hydrogen and helium with lesser amounts of ammonia and methane (I think).



This original atmosphere probably both escaped (the earth was hot and the gases were moving around with enough speed that they could overcome the pull of the earth's gravity) and was swept into space by the solar wind (click on the link if you are interested in learning more about the solar wind, otherwise don't worry about it).

With the important exception of oxygen (and argon), most of our present atmosphere is though to have come from volcanic eruptions.  In addition to ash, volcanic eruptions send a lot of water vapor, carbon dioxide, and sulfur dioxide into the atmosphere.  Carbon dioxide and water vapor are two of the 5 main gases in our present atmosphere.

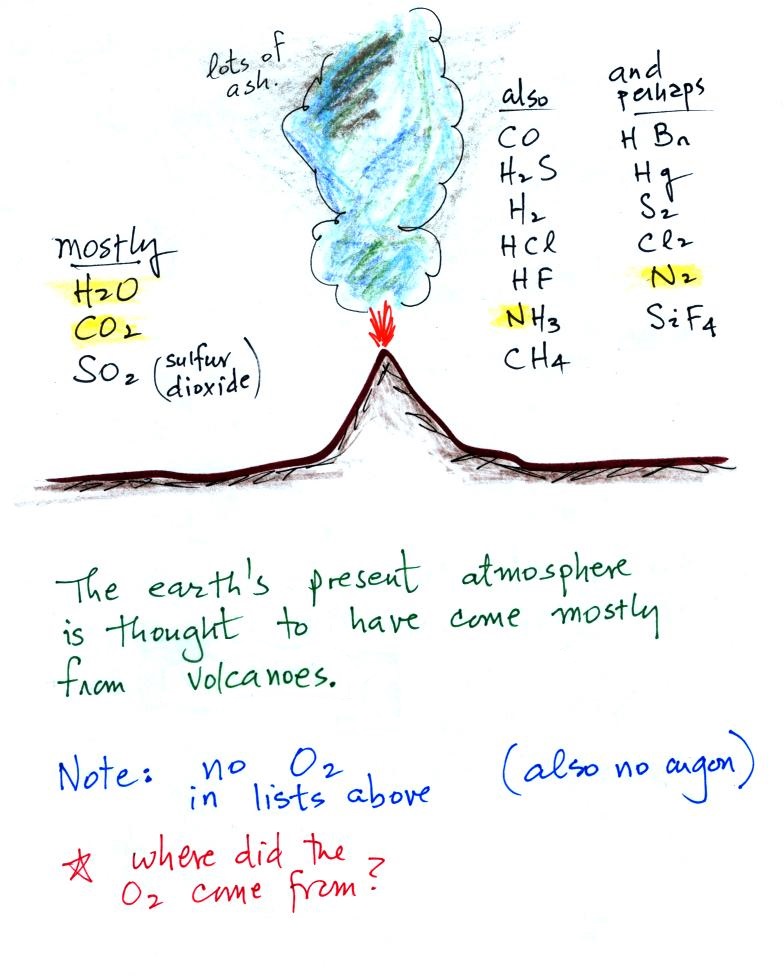

Volcanoes also emit lots of other gases, many of them are poisonous.  Some of them are shown on the right side of the figure (I found the gases in the "also" list mentioned in a lot of online sources, the gases in the "perhaps" list were mentioned less frequently).

As the earth began to cool the water vapor condensed and began to create and fill oceans.  Carbon dioxide dissolved in the oceans and was slowly turned into rock.  Smaller amounts of nitrogen (N2) are also emitted by volcanoes (the N is highlighted in the lists above).  Because nitrogen is relatively nonreactive it remained in the air and its concentration began to built up over time.

Now before we move on you should really have a look at some amazing pictures of the Eyjafjallajökull volcano in Iceland which erupted in Spring 2010.  It caused severe disruption of airline travel between the US and Europe.  Here's another set of photos also from the Boston Globe.

Volcanoes didn't add any of the oxygen that is the atmosphere.  Where did that come from?

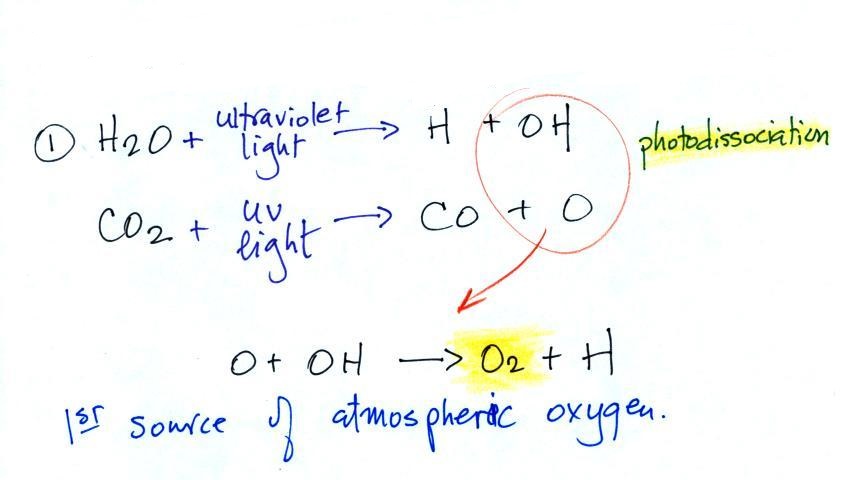

The oxygen is thought to have first come from photo-dissociation of water vapor and carbon dioxide by ultraviolet (UV) light (the high energy UV light is able to split the H20 and CO2 molecules into pieces).  The O and OH then react to form O2 and H.

By the way I don't expect you to remember the chemical formulas in the example above.  It's often easier and clearer to show what is happening in a chemical formula than to write it out in words.  If I were to write the equations down, however, you should be able to interpret them.  Ultraviolet is a dangerous, high energy, potentially deadly form of light and it's probably also good to remember that ultraviolet light is capable of breaking molecules apart.

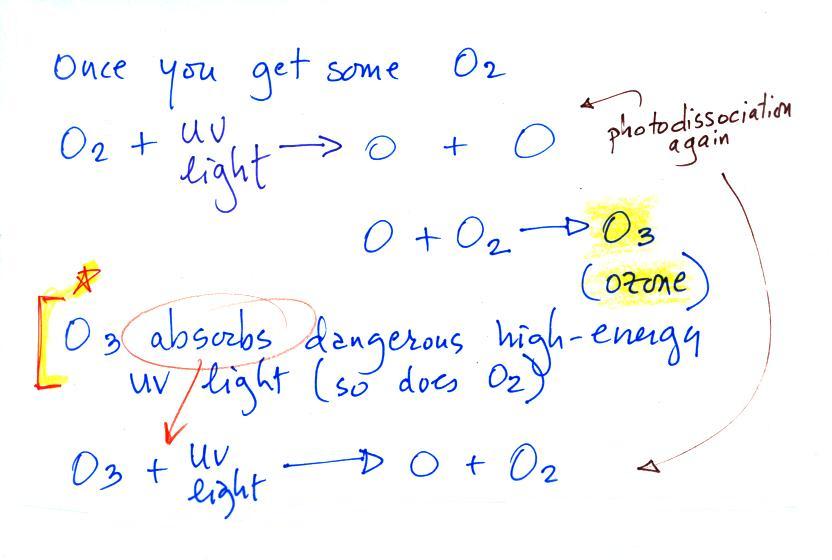

Once molecular oxygen (O2) begins to accumulate in the air UV light can split it apart to make atomic oxygen (O).  The atoms of oxygen can react with molecular oxygen to form ozone (O3).

Ozone in the atmosphere began to absorb the dangerous and deadly forms ultraviolet light and life forms could then begin to safely move from the oceans onto land.  Prior to the buildup of ozone, ocean water offered protection from UV light.

Photosynthesis is the 2nd and now the main source of atmospheric oxygen.

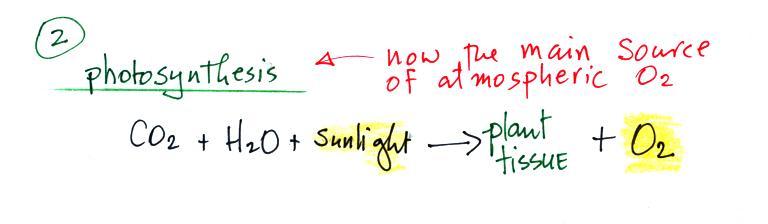

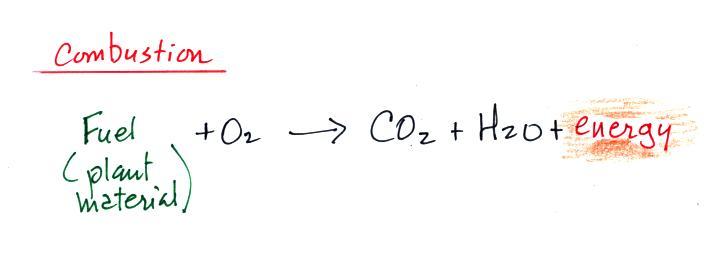

Photosynthesis in its most basic form is shown in the chemical equation above.  Combustion is really just the opposite of photosynthesis and is shown below.


We burn fossil fuels (dead, undecayed plant material) to generate energy.  Water vapor and carbon dioxide are by products.  Combustion is a source of CO2.  We'll see these two equations again when we study the greenhouse effect (CO2  is a greenhouse gas ) and global warming.

And something I might not have mentioned in class (and something you probably don't need to remember).  The argon we have in the atmosphere apparently comes from the radioactive decay of potassium in the ground.  Three isotopes of potassium occur naturally: potassium-39 and potassium-41 are stable, potassium-40 is radioactive and the source of the argon in the atmosphere.

OK back to the top part of the list of the 5 main gases in air.

We've added some new information to the oxygen column.

The following figure is the first page in the packet of photocopied ClassNotes.

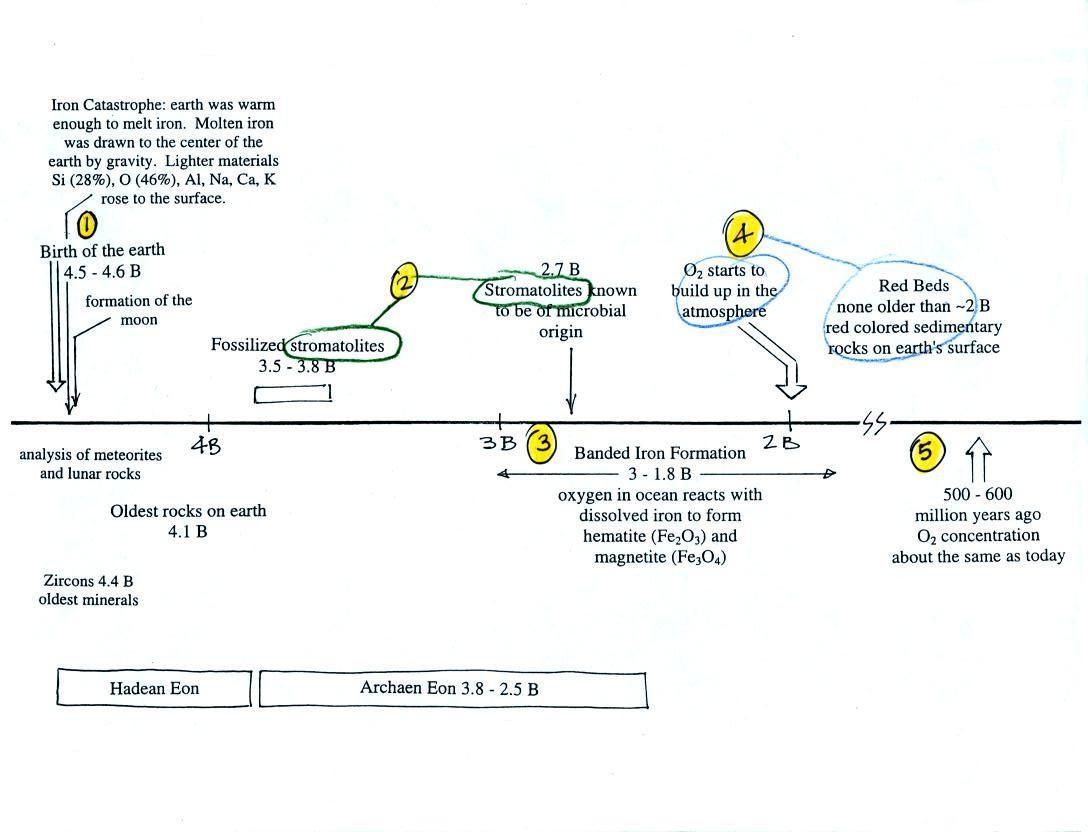

This somewhat confusing figure shows some of the important events in the history of the earth and evolution of the atmosphere.  There were 5 main points I wanted you to take from this figure, and really 1-3 are the most important.

First, Point 1: the earth is thought to be between 4.5 and 4.6 billion years old.  If you want to remember the earth is a few billion years old that is probably close enough.  Something I didn't mention in class, it's in small type above.  The formation of a molten iron core was important because it gave the earth a magnetic field.  The magnetic field deflects the solar wind and keeps the solar wind from blowing away our present day atmosphere.

Stromatolites (Point 2) are column-shaped structures made up of layers of sedimentary rock, that are created by microorganisms living at the top of the stromatolite (I've never actually seen a stromatolite, so this is all based on photographs and written descriptions).  Fossils of the very small microbes (cyanobacteria = blue green algae) have been found in stromatolites as old as 2.7 B years and are some of the earliest records of life on earth.  Much older (3.5 to 3.8 B years old) stromatolites presumably also produced by microbes, but without microbe fossils, have also been found.

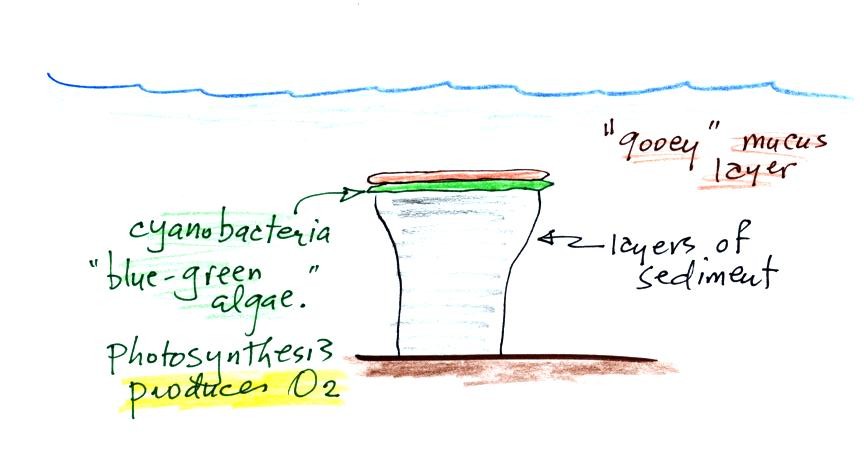

Blue green algae grows at the top of the column, under water but near the ocean surface where it can absorb sunlight.  As sediments begin to settle and accumulate on top of the algae they start to block the sunlight.  The cyanobacteria would then move to the top of this sediment layer and the process would repeat itself.  In this way the stromatolite column would grow layer by layer over.  Now, this isn't a geology class, we're learning about stromatolites because the cyanobacteria on them were a very early form of life on the earth and were able to produce oxygen using photosynthesis.

Living stromatolites are found in a few locations today.  The two pictures above are from Coral Bay (left) and Shark's Bay (right) in Western Australia.  The picture was probably taken at low tide, the stromatolites would normally be covered with ocean water.  It doesn't look like a good place to go swimming, I would expect the top surfaces of these stromatolites to be slimy.

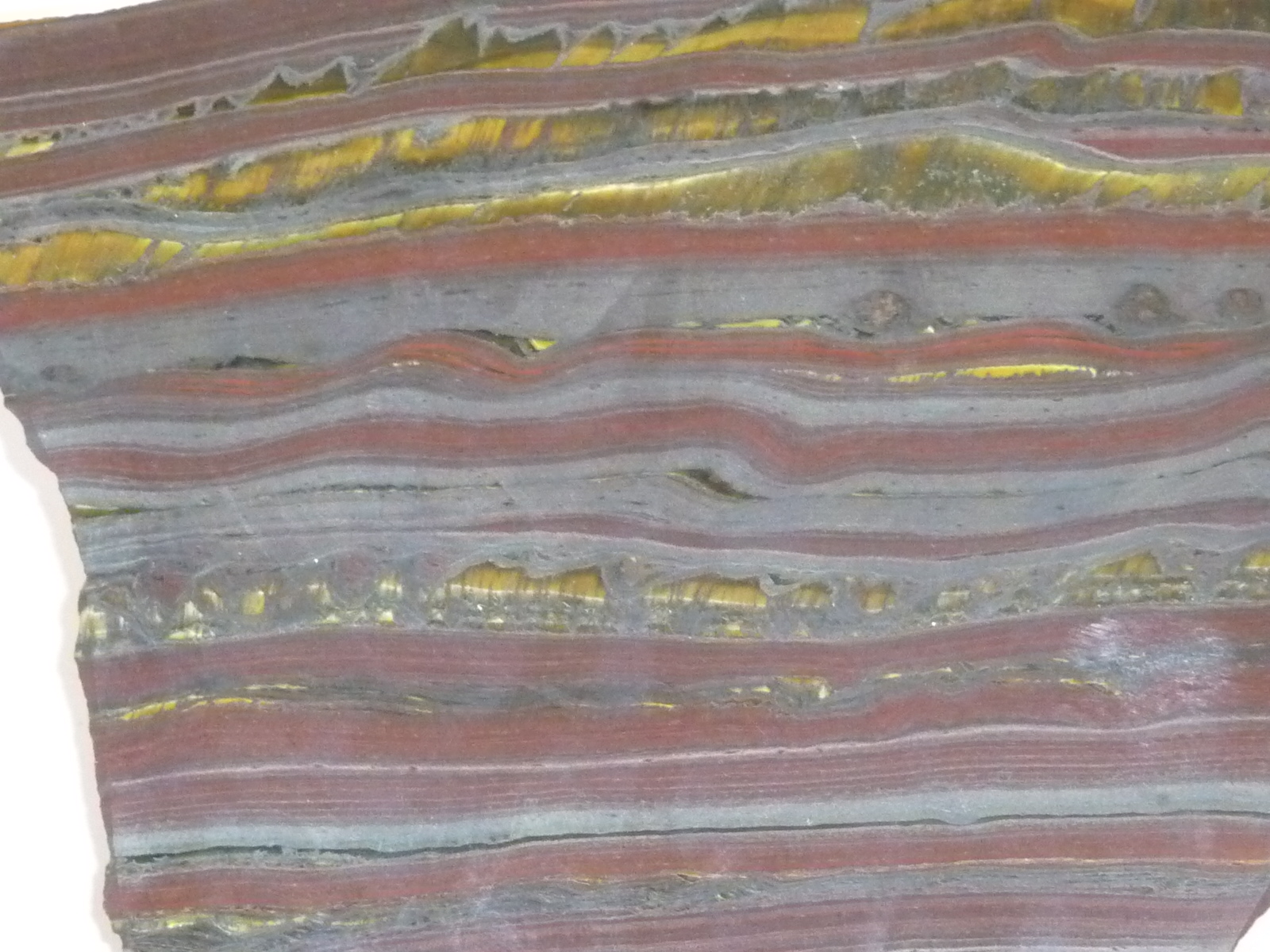

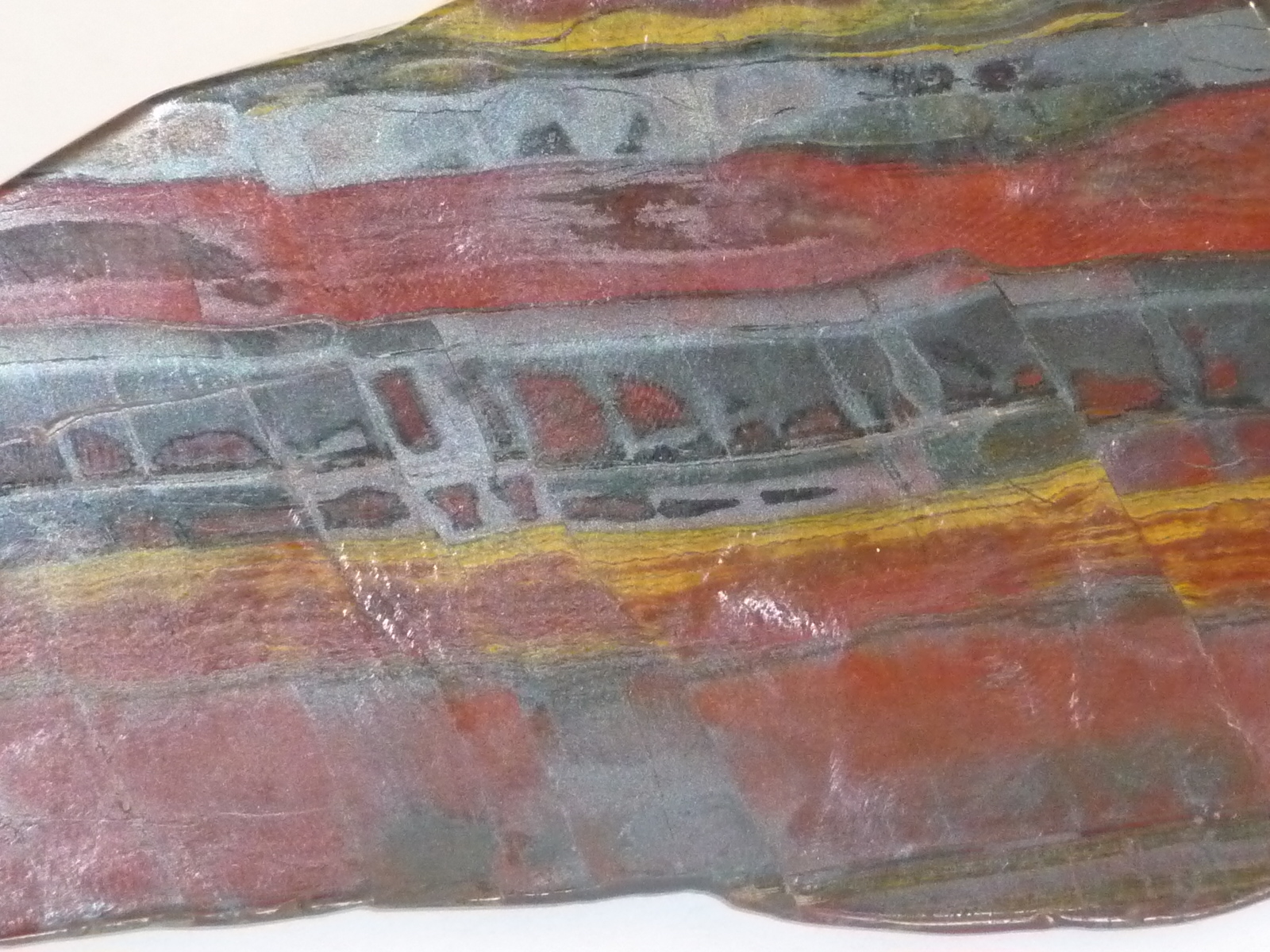

Point 3 refers to the banded iron formation, a type of rock formation.  These rocks are 3 billion years old (maybe older) and are evidence of oxygen being produced in the earth's oceans.  Here are a couple of pictures of samples of banded iron formation rock that I will pass around in class at some point (thanks for being careful with them and not stealing them).



The main thing to notice are the alternating bands of red and black.  The next paragraph and figure explain how these formed.

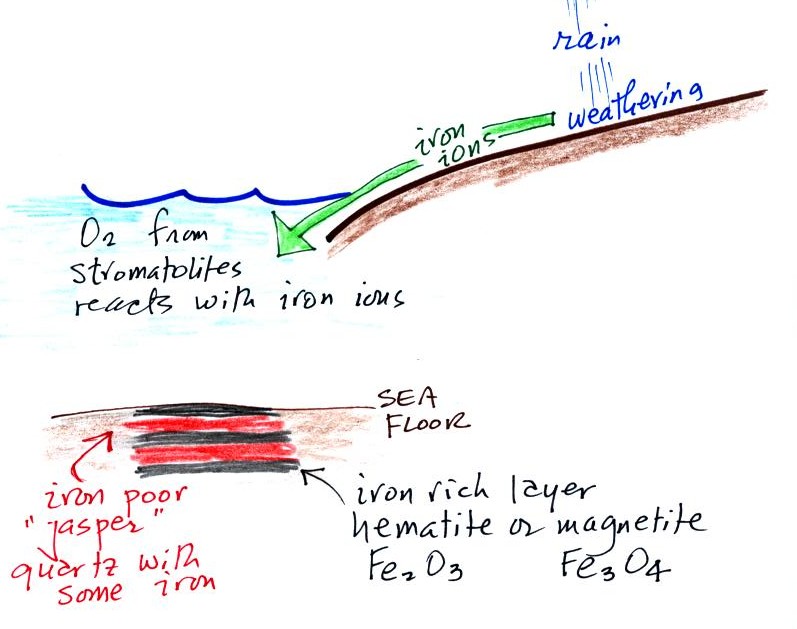

Rain would first of all wash iron ions from the earth's land surface into the ocean (at a time before there was any oxygen in the atmosphere).  Oxygen from the cyanobacteria living in the ocean water reacted with the dissolved iron (the iron ions) to form hematite or magnetite.  These two minerals precipitated out of the water to form a layer on the sea bed.  This is what produced the black layers.




Periodically the oxygen production would decrease or stop (rising oxygen levels might have killed the cyanobacteria or seasonal changes in incoming sunlight might have slowed the photosynthesis).  During these times of low oxygen concentration, red layers of jasper would form on the ocean bottom.  Eventually the cyanobacteria would recover, begin producing oxygen again, and a new layer of hematite or magnetite would form.  The rocks that resulted, containing alternating layers of black hematite or magnetite and red layers of jasper are known as the banded iron formation.  In addition to the red and black layers, you see yellow layers made of fibers of quartz in the samples passed around class.   The rocks are fairly heavy because they contain a lot of iron, but the most impressive thing about them in my opinion is their age - they are a few billion years old!

Eventually the oxygen in the ocean reacted with all of the iron ions and was free to move from the ocean into the atmosphere.  Once in the air, the oxygen could react with iron in sediments on the earth's surface.  This produced red colored (rust colored) sedimentary rock.  These are called "Red Beds" (Point 4).  None of these so-called red beds are older than about 2 B years old.  Thus it appears that a real buildup up of oxygen in the atmosphere began around 2 B years ago. Oxygen concentrations reached levels that are about the same as today around 500 to 600 million years ago (Point 5 in the figure).

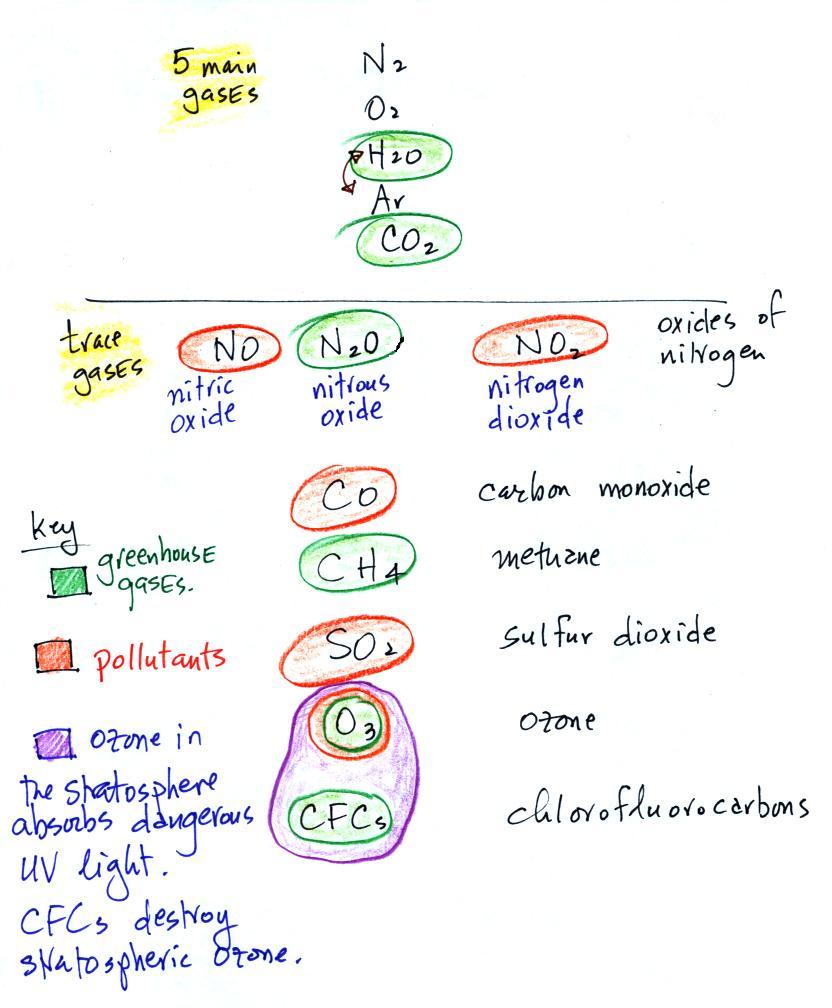

Below is a more carefully drawn version of a figure drawn in class.  At the top of the list below are the 5 most abundant gases in the atmosphere (something you're seeing for the 4th or 5th time).   Several more important trace gases were added to the bottom of the figure.  Trace gases are gases found in low concentrations (and often the concentrations vary with time and location).  Low concentrations doesn't mean they aren't important, however.



Carbon monoxide, nitric oxide, nitrogen dioxide, ozone, and sulfur dioxide are some of the major air pollutants.  We'll cover 3 of these in more detail next week.

Water vapor, carbon dioxide, methane, nitrous oxide (N2O = laughing gas), chlorofluorocarbons, and ozone are all greenhouse gases.  Increasing atmospheric concentrations of these gases are responsible for the current concern over climate change and global warming.  We'll discuss this topic and learn more about how the greenhouse effect actually works later in the course.

Ozone has sort of a Dr. Jeckyl and Mr. Hyde personality
(i)  Ozone in the stratosphere (a layer of the atmosphere between about 10 and 50 km altitude) is beneficial because it absorbs dangerous high energy ultraviolet (UV) light coming from the sun.  Without the protection of the ozone layer, life as we know it would not exist on the surface of the earth.  It was only after ozone started to buildup in the atmosphere that life could move from the oceans onto land.  Chlorofluorocarbons are of concern in the atmosphere because they destroy stratospheric ozone.

(ii)  In the troposphere (the bottom 10 kilometers or so of the atmosphere and where we live) ozone is a pollutant and is one of the main ingredients in photochemical smog.

(iii)  Ozone is also a greenhouse gas.

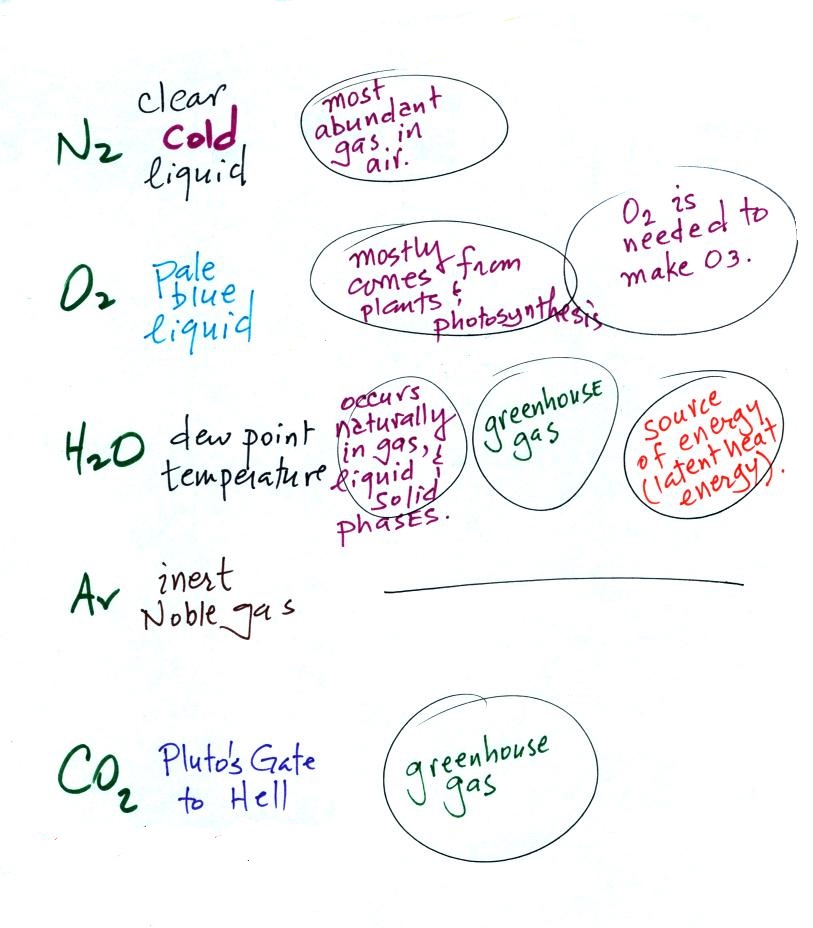

We'll go back to our list of the 5 main gases in the atmosphere one last time and add some more information about water vapor and carbon dioxide.



Water vapor and carbon dioxide are probably the best known of the greenhouse gases.  We'll cover the greenhouse effect, climate change and global warming later in the semester.  The fact that water vapor is a source (an important source) of latent heat energy is something else we'll cover later in the semester.

Finally, I wasn't being entirely honest when I said that gases are invisible.
Some gases can be seen, here are some examples.

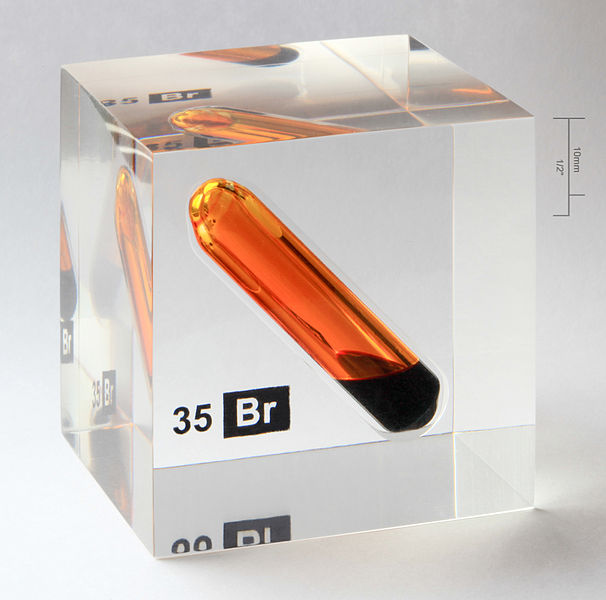

Bromine in both liquid and gaseous phases. Bromine and mercury are the only two elements that exist as liquids at room temperature.  The bromine is in a sealed glass ampoule inside an acrylic cube.  Bromine could be safely brought to class in a container like this.

This photo was taken by Alchemist-hp and was Picture of the Day on the English Wikipedia on Oct. 29, 2010.
 Chlorine (Cl2)






I found this image here
 Iodine
Also an element that is normally found in solid form.  The solid sublimates, i.e. it changes directly from solid to gas (you would probably need to heat the solid iodine to produce gas as dense as seen in the picture above).  source of this image
 Nitrogen dioxide  (NO2)
An important pollutant.






source of this image
