March 28, 2008

Quickly go over last two items for lightning

n Lightning detection network

o Cloud-to-ground that has already occurred can be located using an instrument called a lightning direction-finder, which works by detecting the radio waves produced by lightning. A network of these magnetic devices has been set up all around the United States as part of the National Lightning Detection Network. The location of each cloud to ground strike is pinpointed using triangulation.

§ Draw a simple diagram for this.

o This information is often displayed on maps showing the time and location of all detected cloud to ground lightning strikes (see link on the lecture summary page). This is valuable in showing the general motion of lightning producing storms and the density of lightning strikes, but it can not be used to predict when and where a newly developing storm will first produce lightning.

n Lightning prediction and warning

o The liklihood that cloud to ground lighting is about to occur is estimated by measuring the electric field build up in the air. The Electric Field is a measure of the strength of the charge build up. When a certain threshold is reached, lightning is about to hit somewhere. Electric field measuring equipment is used at many outdoor events (e.g., golf tournaments, state fairs, etc.) to allow authorities to give warning that people should take cover. Note that while the electric field instrumentation can provide information that tells us lightning is about to strike somewhere in the area, there is no way to predict exactly where the lightning will hit.

§ Again draw a simple diagram for this.

Distribution of thunderstorms

n It is estimated that more than 50,000 thunderstorms occur each day throughout the world. Annually this adds up to more than 18 million thunderstorms per year.

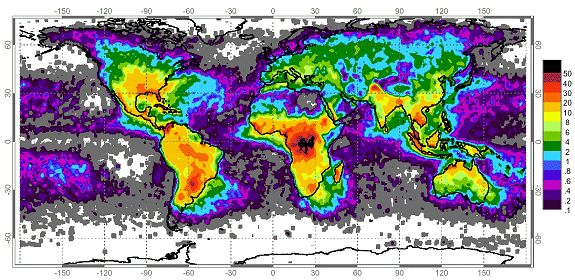

n The figure above shows the distribution of world-wide lightning strikes from satellite-based optical sensors. Units are # of flashes per square kilometer per year. Thunderstorms form from the equator to as far north as Alaska. They occur most commonly in the tropics where convectional heating of moist surface air occurs year round. Many tropical land based locations experience over 100 thunderstorm days per year. Thunderstorm formation over tropical oceans is less frequent because ocean surfaces do not warm as rapidly as land surfaces. Thus, in general, thunderstorms (especially severe thunderstorms) are much more common over land areas than over the oceans. Outside the tropics, thunderstorm formation is more seasonal occurring in those months where heating is most intense.

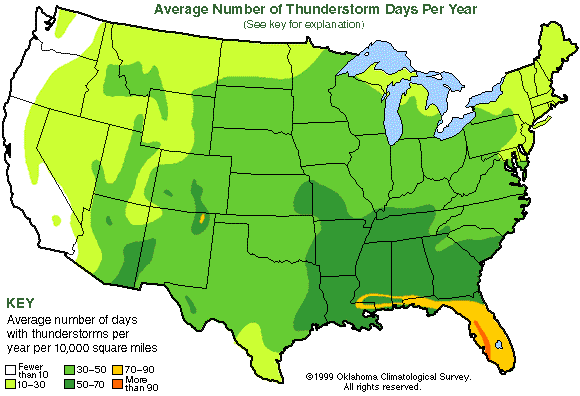

n The figure below describes the annual average number of thunderstorm days across the United States. According to this map, the greatest incidence of thunderstorms occurs in the southeast. This particular spatial distribution suggests that extreme solar heating is not the only requirement for thunderstorm formation. Another important prerequisite is the availability of large quantities of water vapor at the surface. In the United States, the Gulf of Mexico supplies adjacent continental areas with moist maritime tropical air masses. These air masses are relatively unstable quickly forming cumulonimbus clouds when surface heating is intense. The secondary maximums found in Colorado, Arizona, and New Mexico are due to the mountainous terrain. Mountain slopes that face the sun absorb more direct solar radiation and become relatively warmer creating strong updrafts that form into cumulus clouds. These areas are much less humid than the southeastern United States, thus the thunderstorms in these areas are characterized by higher cloud bases and less rainfall. During the summer monsoon season, east winds bring some moisture from the Gulf of Mexico resulting in an increase in thunderstorm frequency. Few thunderstorms occur along the west coast of the United States. This region is dominated by cool maritime polar air masses which suppress convectional uplift over land. That is the atmosphere in these regions is typically stable because surface air usually comes from the relatively cold eastern Pacific Ocean.

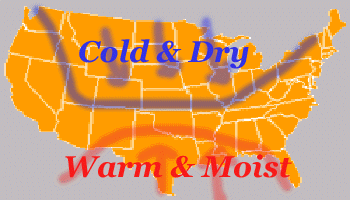

n Although the tropical regions experience the highest number of thunderstorms per year, severe thunderstorms occur most frequently in the humid subtropics. The most severe thunderstorms in the world occur in the United States from the Gulf of Mexico to the great plains of the Mississippi Valley. In this region warm, humid tropical surface air from the Gulf of Mexico interacts with much colder and drier air masses moving down from Canada. This area is unique on Earth. A warm ocean surface lies to the south and a large continental land mass to the north with no mountainous barriers to prevent the clash of warm, humid air masses from the south and very cold, dry air masses from the north.

Tornadoes

n A tornado is a rapidly rotating column of air that blows around a small area of intensely low pressure and is in contact with both the cloud base and the surface of the Earth. In exceptionally strong tornadoes, wind speeds can be over 300 mi/hr.

n No other weather phenomenon can match the fury and destructive power of tornadoes. They can destroy large buildings, leaving only the bare concrete foundation, lift 20-ton railroad cars from their tracks, or drive straw and blades of grass into trees and telephone poles.

n Most “classic” tornadoes that cause moderate to heavy damage are associated with supercell thunderstorms. We will concentrate on these types of tornadoes. The information concerning the typical tornado lifecycle and formation provided in this lecture does not explain many of the smaller and weaker tornadoes, such as waterspouts, landspouts, and gustnadoes. It does not explain some of the more rare tornadoes, such as multiple vortex tornadoes or satellite tornadoes. It also does not explain some of the more powerful tornadoes that are able to last for hours. These types of tornadoes have different mechanisms that influence their development. In all cases, there is still quite a bit that is not understood about tornadoes and tornado formation.

n Lifecycle of a classic supercell tornado

o Supercell thunderstorms develop in a region of strong vertical wind shear. Vertical wind shear can cause air to rotate about a horizontal axis. A tube of rotating air is often called a vortex tube or simple a vortex.

§ See figure 10.34a.

§ Speed shear alone can also cause a vortex to form

o A strong updraft then tilts this rotating tube upward so that the rotation is now about a vertical axis. This causes the updraft to rotate counterclockwise as it rises.

§ See figure 10.34b.

o At this point the vortex is much larger than a tornado with a diameter of 5 – 10 km. The rotation of the updraft lowers the air pressure in the middle levels of the thunderstorm. When this occurs, updraft speeds will increase further because the circulation can force air to accelerate upward even at altitudes below where the rising parcels become buoyant.

o This 5 – 10 km wide counterclockwise circulation around lower pressure is called a mesocyclone (literally a medium-sized cyclone). This is when the first stage of development of the tornado life cycle, the dust-whirl stage, may be observed.

§ Near the ground, dust may be seen swirling upward, while a wall cloud may be seen hanging below the rest of the cloud base. The wall cloud is actually caused by condensation in the rising updraft and provide a “visualization” of the rotating updraft.

· See figures 10.35 and 10.38

o Next the storm’s precipitation begins to wrap around the rotating mesocyclone. This forms the classic hook echo on RADAR displays.

§ See figures 10.35 and 10.36

o Downdrafts develop in the falling precipitation. When conditions are just right, the rear flank downdraft is able to drag the mesocyclone circulation downward toward the ground. As a vortex is stretched vertically, its diameter decreases and it is forced to spin faster by the physical law of conservation of angular momentum. (This is the same principle that ice skaters use to increase their spin speed by pulling in their arms.) Note that the interaction between the rotating updrafts and rear flank downdrafts are much more complex than described above.

o A funnel cloud can now be seen descending from the wall cloud. In tornado-producing supercells, the wall cloud is often observed 10-20 minutes before the tornado touches down, but it may be less than one minute or more than an hour.

o Once the vortex is stretched to the ground, we have a tornado. This is the mature stage of the tornado life cycle, when it is most powerful and destructive. The tornado is often nearly vertical in this stage.

§ See figure 10.27

o As the tornado weakens, probably because cold downdraft air completely encircles the updraft cutting off the energy supply of warm, humid air, the width of the funnel usually shrinks and becomes more tilted. In the final stage of a tornado life cycle, the decay stage, the tornado is often shaped like a contorted rope before fully dissipating.

§ Show video clip of life cycle of an actual tornado

n Tornado Occurrence

o Because tornadoes form in conjunction with severe thunderstorms, especially supercells, more tornadoes occur in the United States than anywhere else on Earth. This is due to the unique geography of North America as mentioned with the occurrence of severe thunderstorms.

o Perhaps surprisingly, central Florida experiences the greatest number of tornadoes. However most of the tornadoes are rather weak, EF0 and EF1 tornadoes with wind speeds less than 110 mi/hr (see information on EF scale below). However, the spectacular and violent tornadoes, those that cause extensive damage and are responsible for the largest share of deaths, are most likely to form in the tornado belt or tornado alley of the Central Plains, which stretches from central Texas northward through Oklahoma and Kansas to Nebraska and includes parts of Colorado, Iowa, Illinois, Missouri, and Arkansas.

§ See tornado occurrence figures linked on the lecture notes page.

n Tornado Statistics and Characteristics for the United States

o Tornadoes kill an average of about 60 people each year in the US. But there is great variability from year to year. The deadliest tornado days are often associated with a large area tornado outbreak. These occur when conditions are highly favorable for tornado development over a rather large area. One of the most violent occurred on April 3 and 4, 1974. During a 16 hour period, 148 tornadoes cut through parts of 13 states, killing 307 people, injuring more than 6000, and causing an estimated $600 million in damage.

o In the late 1960s, the late Dr. T. Theodore Fujita, a noted authority on tornadoes at the University of Chicago, proposed a scale (called the Fujita scale for classifying tornadoes according to their rotational wind speed based on the damage done by the storm. Starting February 1, 2007, the National Weather Service revised the original Fujita scale linking tornado damage to windspeed. The new scale is called the enhanced Fujita scale (EF scale). There are still 6 categories for tornadoes (now EF-0 through EF-5). The new EF scale was developed to improve the estimation of windspeed based on the damage by better considering the structural integrity of different building types.

§ Go over the link to the EF scale.

o Below is a table summarizing some of the characteristics of tornadoes

Characteristic	Most Common	Extreme / Possible
Location on Earth	United States	Almost anywhere
Time of year (US)	March – July (figure 10.29)	Anytime of year
Time of day	Late afternoon (4 – 6 PM)	Anytime of day
Size (diameter)	50 yards	> 1 mile
Movement-Speed (US)	30 mph	0 – 70 mph
Movement-Direction (US)	Toward the northeast	Any direction
Length of ground path	< 2 miles	> 300 miles
Time on Ground	< 5 minutes	> 6 hours
Wind speed	< 100 mph (EF0, EF1)	> 300 mph

n Tornado Safety

o Most tornado-related deaths and injuries are caused by flying debris, so the most important consideration is to shelter yourself from flying debris. If possible go to a sturdy structure. Your best bet is to move into a basement or underground storm shelter. If these are not available go to an interior closet away from windows. Cars and mobile homes are not sturdy structures and are dangerous locations to wait out a tornado. If you are caught outside, you want to get as low to the ground as possible. Your best bet is to lie flat in a ditch or depression in the ground.

§ In recent years about 45% of all US tornado fatalities happened in mobile homes.

o When meteorologists at the National Storm Prediction Center determine that conditions are favorable for tornado development (i.e., unstable atmosphere, wind shear profiles, etc.), a tornado watch will be issued. The tornado watch is meant to alert people to be on the lookout for tornadoes.

o Tornadoes come and go so quickly and are so small that predicting where and when one will hit more than 15 to 30 minutes ahead of time is not possible. The average warning time for a tornado with winds of 158 miles an hour or faster - the type that accounts for most deaths - is 18 minutes. Tornado warnings are issued by local weather offices once a tornado is spotted visually (by a trained spotter) or detected on a RADAR screen.

§ Recall that a hook echo on a conventional RADAR screen often indicates that where a tornado is about to form.

§ Tornadoes can be detected with Doppler RADAR and when they are, tornado warnings are issued. All weather radars work by measuring the reflected (or more correctly backscattered) radiation coming from large particles such as raindrops and hail. Doppler radars can also detect whether the reflecting particles are moving toward or away from the radar site. Thus, the rotating winds around a tornado can show up very well on Doppler Radars. Sometimes the rotation can be observed at cloud level, and a tornado warning issued, before the tornado circulation touches down on the ground.

n Another quick look at tornado alley

o Time permitting, we will briefly discuss the information provided on the assigned reading page (tornado alley) and the embedded “convection cap” link to point out a few more reasons why this area is the most favored area on Earth for the development of monster tornadoes.

End of Quiz 4 Material
