Today we will be looking at satellite detection and location of
lightning. Here's a list some of the areas where
regional or global satellite observations of lightning might be of
interest.
magnetospheric and ionospheric research
Earth's electrical circuit
atmospheric chemistry
nitrogen fixation
ozone reactions and stratospheric chemistry
We'll just look at a couple of recent satellite sensors, the Optical Transient
Detector (OTD) and the Lightning Imaging
Sensor (LIS), that detect the optical
emissions of lightning during the day and at night from low earth
orbit. Both were designed and built by researchers at the
NASA Marshall Space Flight Center. A new and improved
lightning mapping sensor will be on the GOES-R satellite scheduled to
be launched in 2015.
Christian
et al. (1989) contains a detailed discussion of the factors
that must be considered in the design of a satellite lightning
sensor. Prior to designing the OTD and LIS, the NASA
Marshall group also made extensive measurements of lightning
optical emissions from a platform on a high-altitude aircraft
flying well above the tops of thunderclouds (a U-2 aircraft flying
at approximately 20 km altitude).

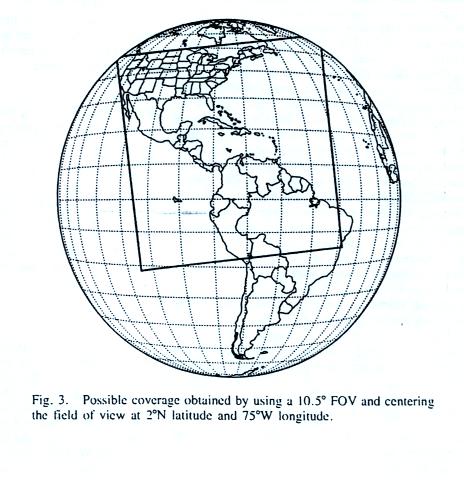

This figure provides an idea of the area viewed by a lightning
mapper aboard a satellite in geostationary orbit. We will
see that most lightning activity falls between 35 S and 35 N
latitude.

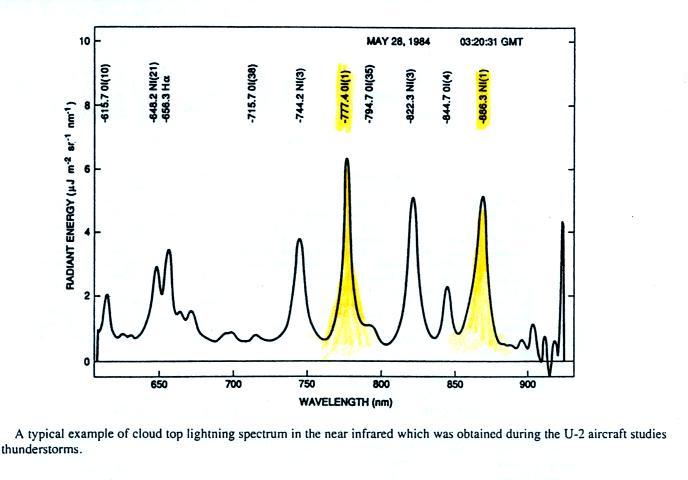

An example of a lightning spectrum recorded by the U-2 aircraft
is shown below (from Christian et al. 1989).
The U-2 measurements did indeed show that both cloud to ground and
intracloud discharges could be detected from above cloud top
(though it isn't possible to determine the type of discharge
process using the optical signals). The 777.4 nm and 886.3
nm features (OI and NI) highlighted above each contain 5 to 10% of
the optical energy in a lightning flash. The 777.4 nm OI(1)
line was ultimately chosen for the satellite detector.
Now because lightning will be viewed from above the
thunderstorm top we need to look at the effects that scattering by
cloud particles will have on the light impulses. In class we
first had a quick look at what lightning optical signals look like
from the ground.

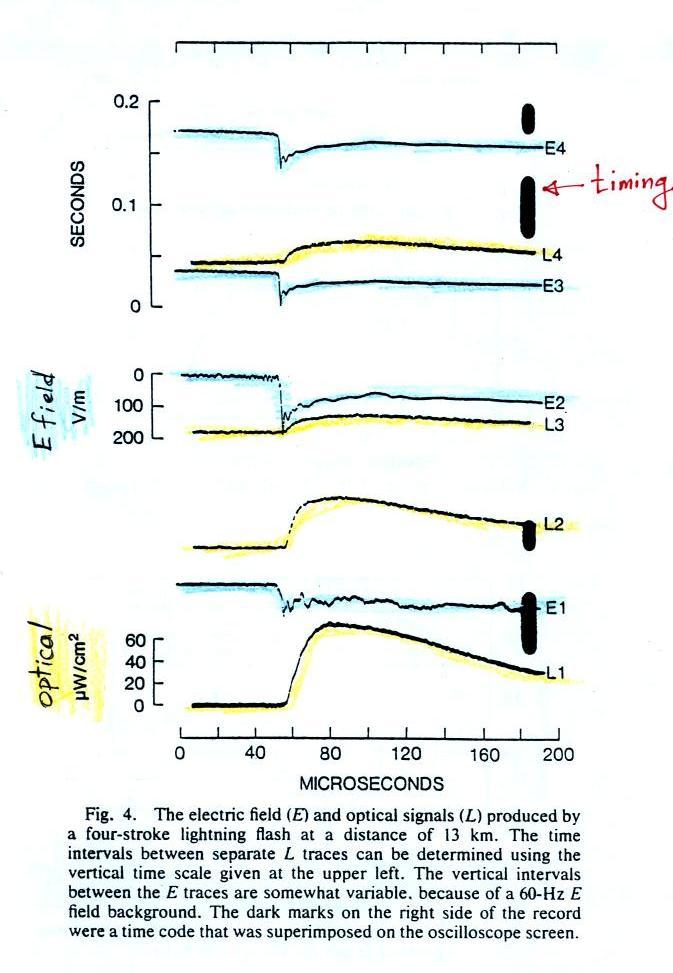

Examples of recorded fast electric fields (E, shaded blue) and
associated optical signals (O, highlighted in yellow) are shown
below (from Guo
and Krider, 1982).
This was a
four stroke cloud-to-ground discharge that occurred at 13 km
range. The first return stroke is shown at the bottom of
the figure. The first 50 μs or so of the record is the
stepped leader. This is followed by an abrupt rise to
peak. Notice that the E field signal is still increasing
in ampltitude at the end of the record. This indicates
some of the electrostatic field component is present which is
typical of a return stroke field recorded at a range of about
10 km. These waveforms were photographed on moving
film. The dark black timing marks were from an LED that
would flash on and off to code the absolute time onto the
film.
And a more recent example (Quick and Krider, 2013)
Signals from a first return stroke, subsequent return strokes
(NGC is a channel with a new ground contact point, PEC a
pre-existing channel), and a cloud discharge are shown.

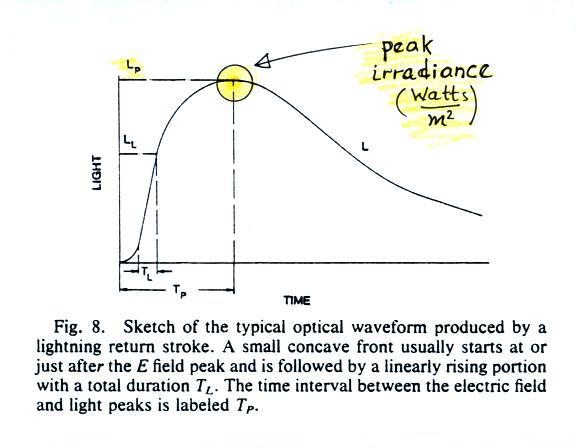

A typical return stroke optical signal. We can use a
measurement of the peak optical signal amplitude (in volts) to
determine the peak irradiance, Lp
(in W/m2). Then if the
range to the discharge is known we can estimate the peak optical
power output, P (in Watts) from the return stroke.

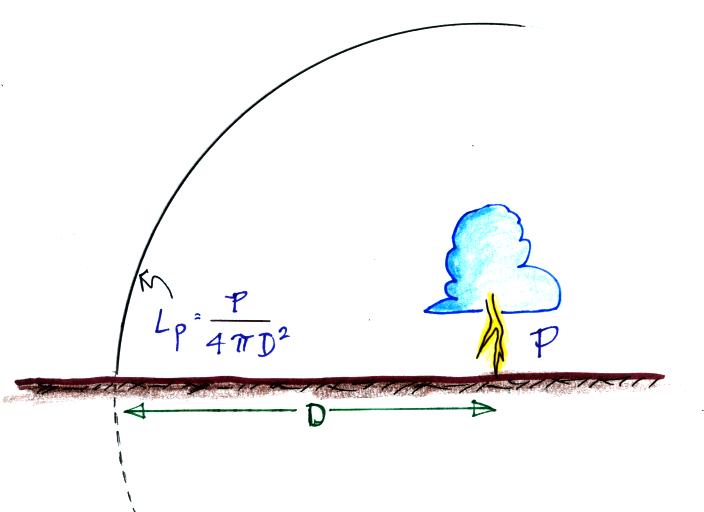

We treat the lightning discharge as a point source and
assume the optical power output during the strike will expand
evenly outward in a sphere. We measure the peak irradiance,
Lp, a
distance D from the source (W/m2 on the surface of the expanding
sphere). So to estimate P we simply multiply the measured
values of Lp
by the area of the sphere.

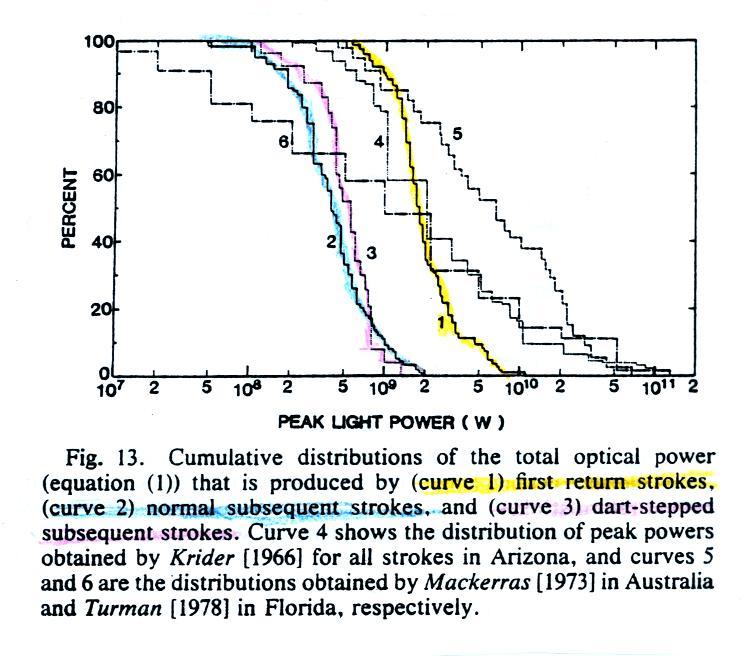

Cumulative distribution of peak optical power estimates. 50%
of 1st return strokes have a peak optical power output of about 2
x 109 Watts or more.
Peak power emitted by subsequent strokes is almost a factor of 10
less.
Back to the matter at hand
Just like frosted glass, clouds will blur any image of the
lightning channel inside the cloud. The optical signal
risetime and pulse width are each increased by about 150
microseconds. The following figure helps to understand why
this is true.

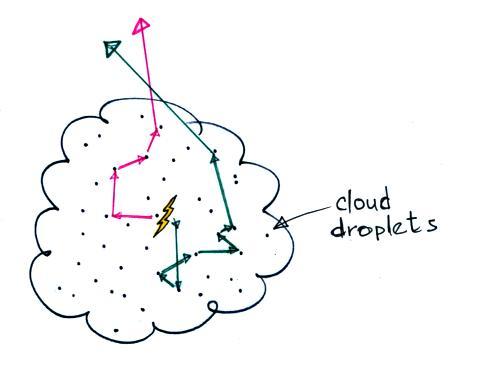

Photons emitted by a lightning
channel are scattered (redirected) multiple times before
leaving the cloud. The path in pink undergoes a
relatively low number of scatters. The green path is
scattered more times and takes longer to escape from the
cloud. It is difficult to distinguish between
cloud-to-ground and intracloud discharges.
Somewhat surprisingly perhaps, there is very little
absorption of the light signal by the cloud.

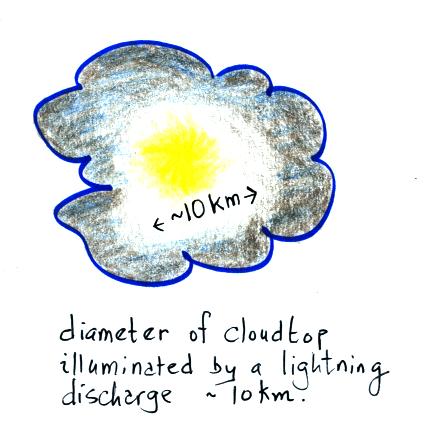

A lightning flash illuminates about 10 km diameter of the
cloud top. Ideally this would just fill a single pixel
on the CCD satellite detector.
We'll spent most of the remainder of our discussion on the
Optical Transient Detector (OTD). This is the first of two
satellite "lightning mappers" designed by the people at the NASA
Marshall Space Flight Center. You can read more about that
research group and some of the activities on the Global Hydrology
and Climate Center webpage.
The OTD was a prototype for the Lightning Imaging Sensor.
The OTD was launched on Apr. 3, 1995 and turned off in Mar. 2000,
having operated 2 years beyond its expected lifetime.
It was launched into a nearly circular orbit 740 km (~450 miles)
high. The orbit was inclined 70o (relative to the Equator) so the satellite
coverage extended from 75o S
to 75o N latitude.
The field of view was about 1300 km x 1300 km (about 1/300 th
of the earth's surface) and was imaged onto a 128 pixel x 128
pixel CCD sensor array (thus about 10 km x 10 km per pixel which
is about the size of the cloud top illuminated by lightning)
Location accuracy (at nadir) was about 8 km.
The orbit precesses about 15 minutes (1/4 of a degree) per
day. It takes about 50 days for the satellite to review a
specific location on the earth's surface at the same time of day.
In a year the OTD images most locations for a total time of >
14 hours (400 individual over passes).
The OTD detects lightning during the day and at night. The
typical daylight cloud background (sunlight reflected off the
cloud tops) is 50 to 100 time brighter than lightning.
Several steps must be taken in order to detect lightning signals
superimposed on this bright background.
(i) The pixel size corresponds roughly to the size of
the cloud top illuminated by lightning.
(ii) A 1 nm narrow band interference filter centered on the
777.4 nm OI emission was used. Much of the cloud background
falls at other wavelengths and was blocked.
(iii) CCD signals were integrated for 2 ms - well over the
duration of the lightning optical pulse.
(iv) successive frames were subtracted. This subtracts out
much of the slowly time varying background signal
This last process is illustrated below

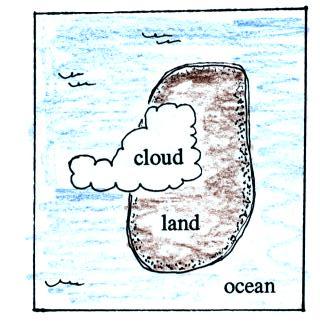

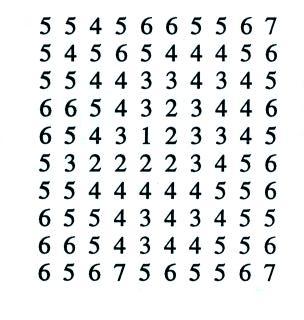

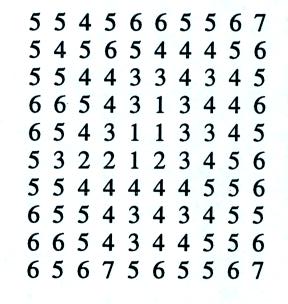

The leftmost image shows a picture of the scene. The middle
two frames show the CCD data for pictures taken of the scene with
and without a lightning. It's hard to see the lightning

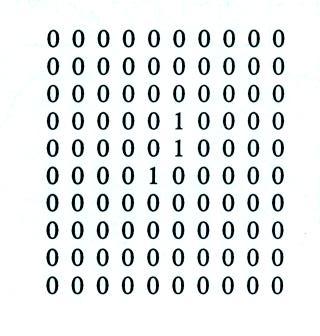

until you difference these middle images. The lightning
appears in the 4th picture (the three pixels with values of 1 in
the middle of the scene).
There are still sources of noise such as sun glint that create
erroneous lightning counts. The South Atlantic Anamoly is
also a source of false triggers. This is a region where the
Van Allen Radiation Belts make their closest approach to the
earth's surface. The inner belt contains mainly high energy
protons. When the satellite passes through the belt, the
high energy particles strike the CCD array and produce anamolous
triggers.
Here are some images of lightning activity derived from OTD
data.

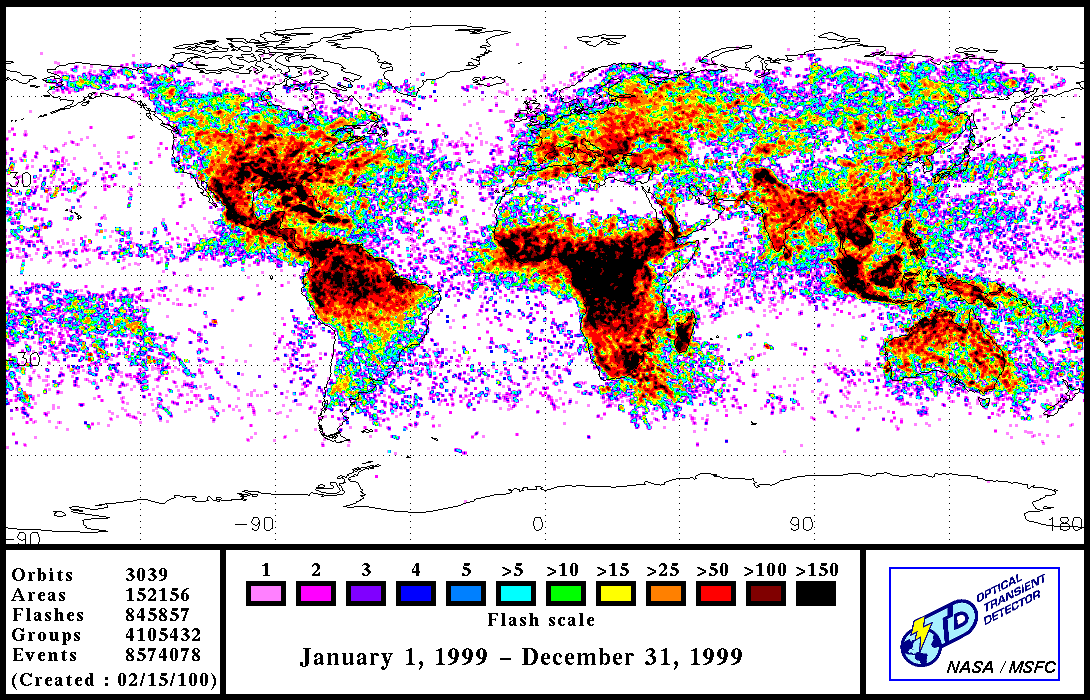

Here's the first image showing all of the lightning detected in
1999.
Most of the lightning detected is found over land affected by the
Intertropical Convergence Zone (ITCZ). This refers to a
feature in the 3-cell model of the earth's global
scale
circulation pattern.

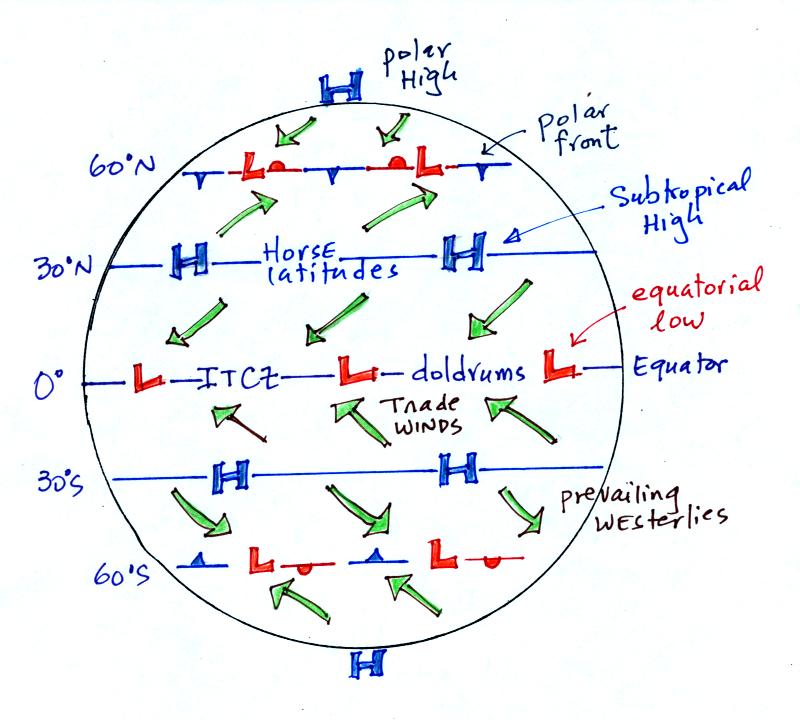

The figure above shows most of the surface features (high and low
pressure belts and winds) predicted by the 3-cell model. The
ITCZ is nominally located near the Equator (also labelled the
equatorial low in the figure above). Surface winds converge
and produce rising air motions. Since the air is usually
quite moist you can usually see a band of clouds
associated with the ITCZ on global
satellites photographs. The ITCZ will move
north of the Equator in summer (northern hemisphere summer) and
south of the equator in the winter.

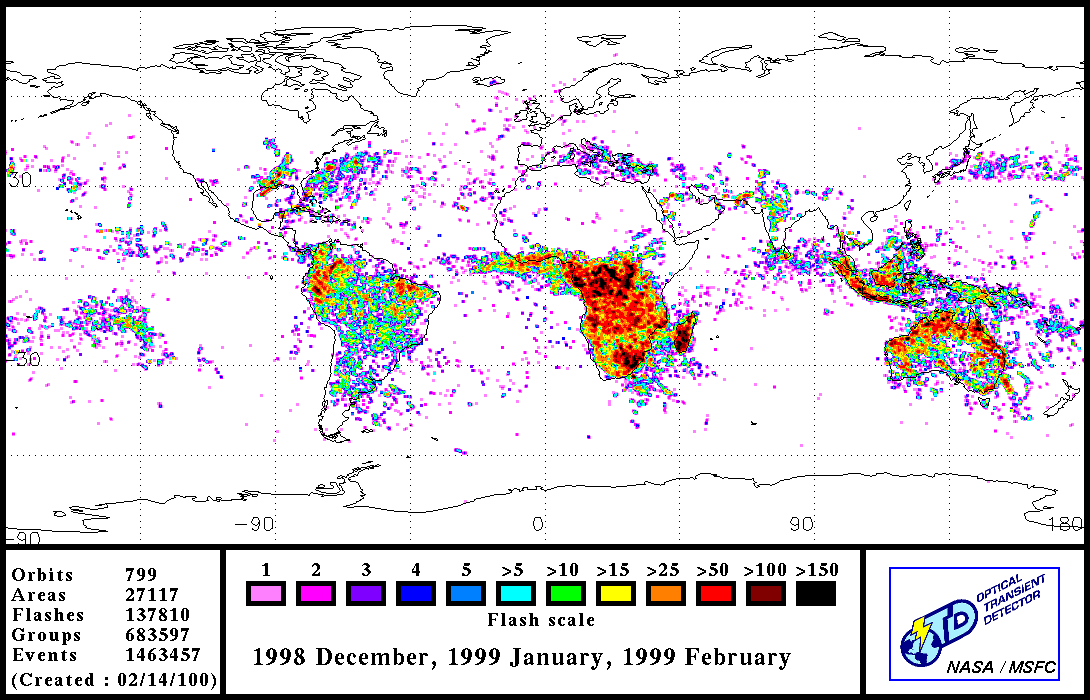

Here's the lightning detected during the months of December,
January, and February 1999. Note how the activity has
shifted into the southern hemisphere. The activity at higher
latitudes in the northern hemisphere might be associated with
storms forming along the polar front.

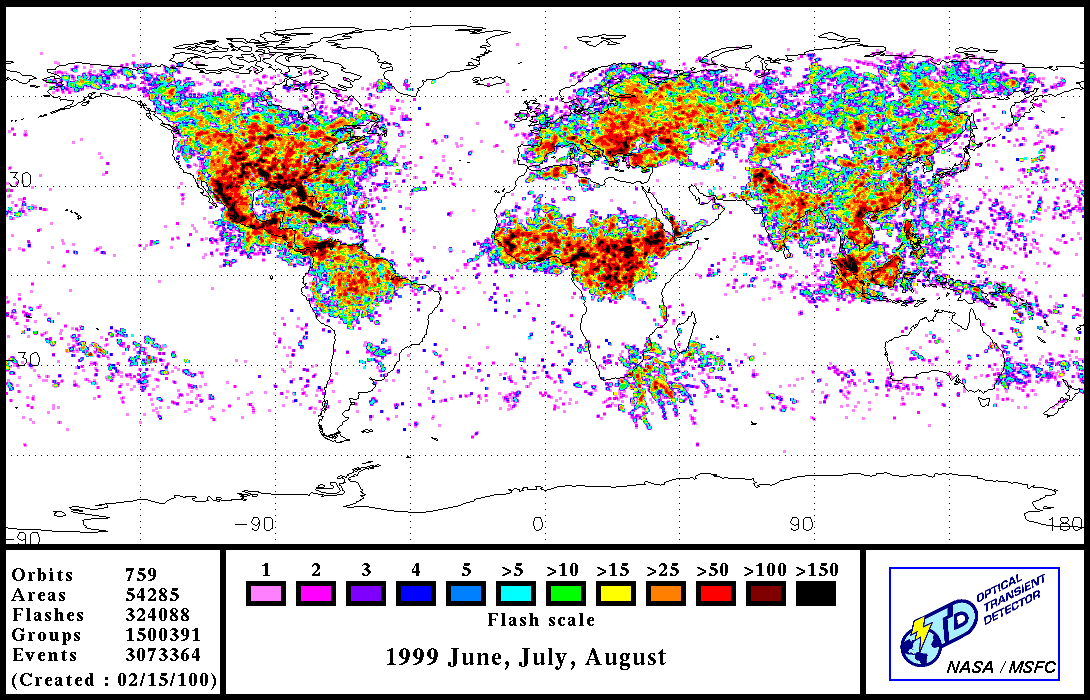

This is the June, July and August map for the same year.
Activity is now primarily in the northerm hemisphere.
78% of the lightning detected (and remember the OTD doesn't
distinguish between cloud-to-ground and intracloud discharges) is
found between 30 S and 30 N latitude. 88% of the lightning
is found over continents, islands, and coastal regions.
There is much less activity over the oceans.
Here is a link to the source
of these OTD GIF Images
One interesting result from 5 years of OTD lightning data is a new
estimate for the global lightning flashing frequency:
44 flashes/sec
(plus or minus 5 flashes/sec)
This is about half of the 100
flashes/sec value that was long thought to be true. The
100 flashes/sec value dates back to about 1925. Some
additional text and discussion needs to be added to
this section
We spent the remainder of the class mostly looking at
still pictures and video images of what was originally
termed upper atmospheric lightning. Luminous
phenomena seen above the tops of thunderstorms from
roughly 20 to 100 km altitude as shown in the figure below
(from a Wikipedia
article)
The preferred term now is transient luminous events because
these are not the high current electrical discharges like
we have been studying up to now. Rather they are
visual phenomena caused, in most cases, by the
electromagnetic radiation from lightning discharges.
Elves stands for Emissions of Light
and Very Low frequency Perturbations from Electromagnetic
Pulse Sources
