Class began with a quick review of the two processes that are able to quickly turn small cloud particles into much larger precipitation particles, the Collision Coalescence process and the Ice Crystal Process.  This information was stuck onto the end of the Wed., Oct. 29 notes.  With that and an appeal (and a threat) for quiet and full attention to the new material that needed to be covered in class, we began with the ice crystal process.  This is somewhat more difficult to understand than the collision coalescence process.

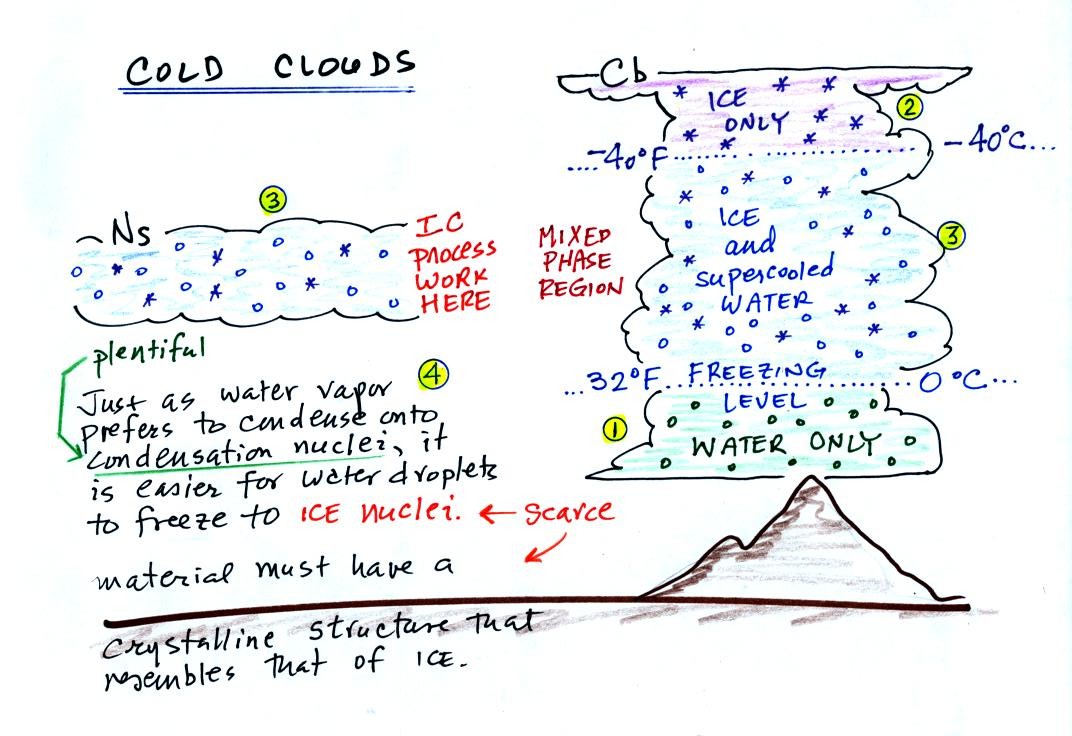

Before learning the ice crystal process, we need to first look at the structure of cold clouds.  The figure below is a redrawn version of what was drawn in class.


The bottom of the thunderstorm, Point 1, is warm enough (warmer than freezing) to just contain water droplets.  The top of the thunderstorm, Point 2, is colder than -40 C and just contains ice crystals.  The interesting part of the thunderstorm and the nimbostratus cloud is the middle part, Point 3, that contains both supercooled water droplets (water that has been cooled to below freezing but hasn't frozen) and ice crystals.  This is called the mixed phase region.  This is where the ice crystal process will be able to produce precipitation.  This is also where the electrical charge that results in lightning is generated.

The supercooled water droplets aren't able to freeze even though they have been cooled below freezing.  At Point 4 we see this is because it is much easier for small droplets of water to freeze onto an ice crystal nucleus or for water vapor to be deposited onto an ice crystal nucleus (just like it is easier for water vapor to condense onto condensation nuclei rather than condensing and forming a small droplet of pure water).  Not just any material will work as an ice nucleus however.  The material must have a crystalline structure that is like that of ice.

We'll see next how the ice crystal process works.  There are a couple of "tricky" parts.

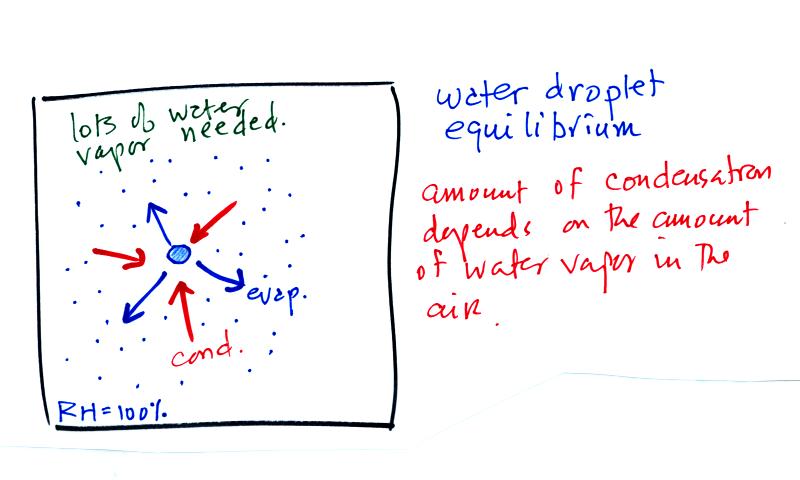

The first figure above (see p.101 in the photocopied Class Notes) shows a water droplet in equilibrium with its surroundings..The droplet is evaporating (the 3 blue arrows in the figure).  The rate of evaporation will depend on the temperature of the water droplet.  The droplet is surrounded by air that is saturated with water vapor (the droplet is inside a cloud where the relative humidity is 100%).  This means there is enough water vapor to be able to supply 3 arrows of condensation.  Because the droplet loses and gains water vapor at equal rates it doesn't grow or shrink.

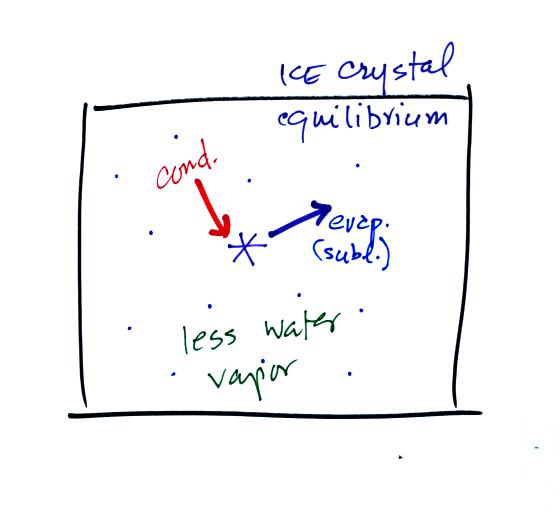

This figure shows what is required for an ice crystal (at the same temperature) to be in equilibrium with its surroundings.  First the ice crystal won't evaporate as rapidly as the water droplet (only one arrow is shown).  Going from ice to water vapor is a bigger jump than going from water to water vapor.  There won't be as many ice molecules with enough energy to make that jump.  A sort of analogous situation is shown in the figure below.  The class instructor could with a little warmup and practice jump from the floor up and onto the seat of a chair (maybe 15 inches tall).  Trust me, he could, and so could most of the people in the room.  The class instructor does some stupid things in class, but he wouldn't begin to consider trying to jump from the floor up to the top of the cabinet (30 inches or more).

To be in equilibrium only one arrow of condensation is needed.  There doesn't need to be as much water vapor in the air surrounding the ice crystal to supply this lower rate of condensation.


There are going to be fewer people able to make the big jump on the left just as there are fewer ice molecules able to sublimate.  Going from water to water vapor is a "smaller jump" and more molecules are able to do just as more people would be able to make the shorter jump at right in the picture above.

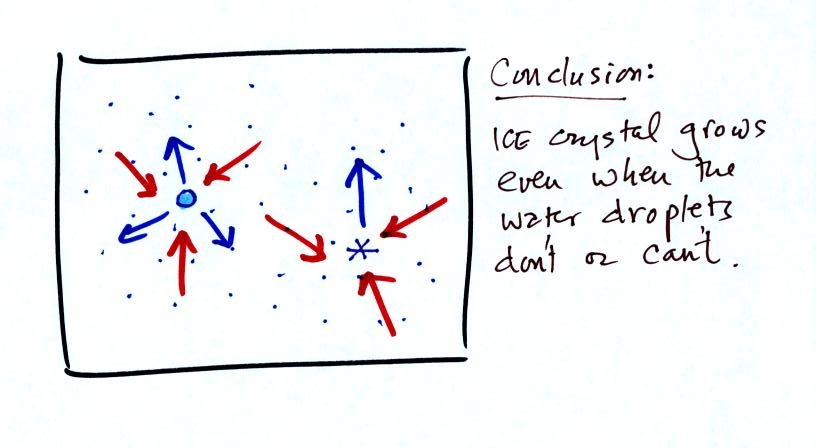

Now what happens in the mixed phase region of a cold cloud is that ice crystals find themselves in the very moist surroundings needed for water droplet equilibrium. This is shown below.

The water droplet is in equilibrium (3 arrows of evaporation and 3 arrows of condensation) with the surroundings.  The ice crystal is evaporating more slowly than the water droplet.  Because the ice crystal is in the same surroundings as the water droplet water vapor will be condensing onto the ice crystal at the same rate as onto the water droplet.  The ice crystal isn't in equilibrium, condensation exceeds evaporation and the ice crystal will grow.  That's what makes the ice crystal process work.

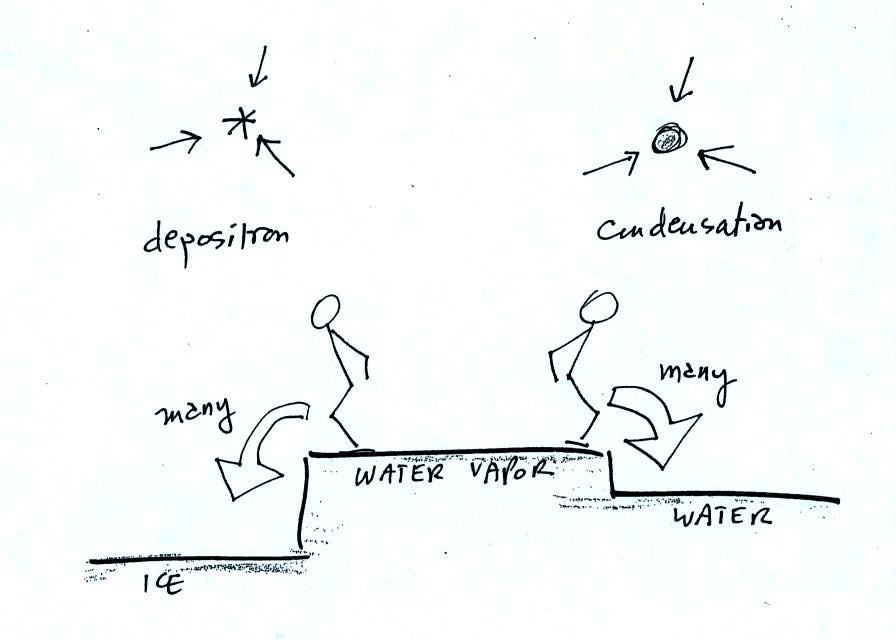

The equal rates of condensation are shown in the figure below using the earlier analogy.

Even though he was afraid to try to jump up to the top of the counter, the instructor could jump from the counter to the floor.

That's where we left the ice crystal process for today.  We'll come back to it again on Monday.

The computer grade summaries had made their way around the room by this point.  Here's an example of what they look like.


1. These are your Quiz #1 and Quiz #2 scores and the percentage grades.

2. The number of extra credit points (from the optional assignments) that you have earned so far.

3. If you have completed an experiment report, the grade should appear here.  If not, then an average grade was used during the grade estimate calculations to show the effect of the writing grade on your overall average.  Don't get the idea that you don't have to do any experiment report, you do.  If you don't do a report by the end of the semester you really will have a zero here.

4. This is the grade you received on your Bonus 1S1P report on Radon.

5. Because some of the reports haven't been graded yet, none of the 1S1P Assignment #1 grades have been used in the grade summary.  Instead the computer "guessed" at how many 1S1P pts you will have at the end of the semester.  If you have turned in two Assignment #1 reports so far, the computer assumed you would continue writing reports and would earn 45 pts by the end of the semester (45 is the maximum number of 1S1P pts you can earn during the semester).  If you only turned in 1 report, the computer assumed you would end up with 35 pts.  And if you haven't turned in any 1S1P reports, the computer started to wonder about that and assumed you might have decided not to write very many 1S1P reports.

   It is important to understand that even if you haven't written any 1S1P reports yet, there is still time to catch up and earn 45 pts (the maximum number of points allowed).  But you need to get started now.  The next assignment is due next week and you should plan on turning in two reports.

   It is also important to realize that the number of 1S1P pts you have been given by the computer for the purposes of this grade estimate aren't real points.  At the end of the semester the computer will only use points that you have actually earned on reports that you have turned in.

6.  The writing score percentage grade is obtained by adding the experiment report points (maximum of 40 pts) and the 1S1P pts (maximum of 45 pts), dividing by 80, and multiplying the result by 100%.

7.   This is the computer's guess at what you overall average grade will be at the end of the semester if you keeping doing as you've done so far.  The average is based on quiz scores and your writing percentage grade.  The extra credit points have been added in.  The first average (no quiz grades dropped) is the one that has to be 90.0 or above to get out of the final.

Please check your grade report and make sure the grades are correct.  If you have any questions then come and check with me.

Now back to the Collision Coalescence process.

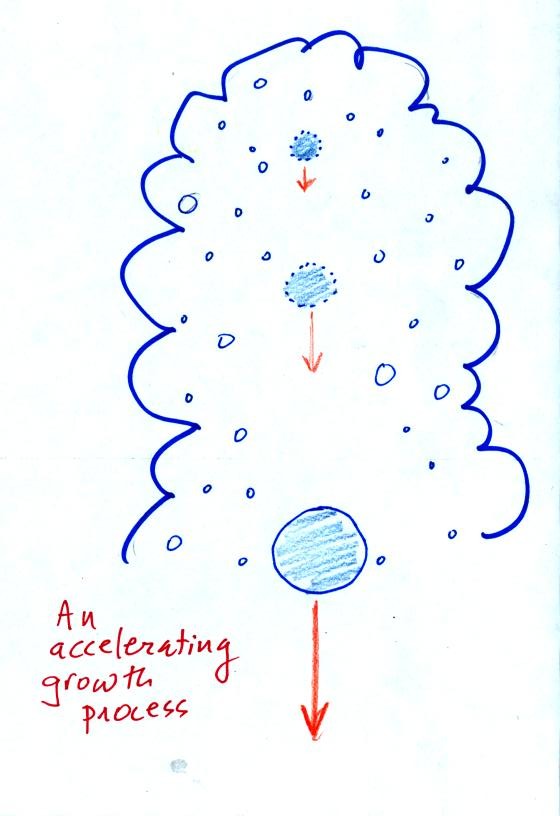

Here's what you might see if you looked inside a warm cloud with just water droplets:

The collision coalescence process works best in a cloud filled with cloud droplets of different sizes.  The larger droplets overtake and collide with the smaller ones.  The droplets coalesce (stick together), the droplet grows, begins to fall faster, and collides more frequently with smaller droplets.

This is an acclerating growth process.  The falling droplet gets wider, falls faster, and sweeps out an increasingly larger volume inside the cloud.  The bigger the droplet gets the faster it starts to grow.

The figure below shows the two precipitation producing clouds: nimbostratus (Ns) and cumulonimbus (Cb). A little more carefully drawn version than was done in class.  Ns clouds are thinner and have weaker updrafts than Cb clouds.  The largest raindrops fall from Cb clouds because the droplets spend more time in the cloud growing. In a Cb cloud raindrops can grow while being carried upward by the updraft and also when falling in the downdraft.


Raindrops grow up to about 1/4 inch in diameter.  When drops get larger than that, wind resistance flattens out the drop as it falls toward the ground.  The drop begins to "flop" around and breaks apart into several smaller droplets.  Solid precipitation particles such as hail can get much larger (an inch or two or three in diameter).
