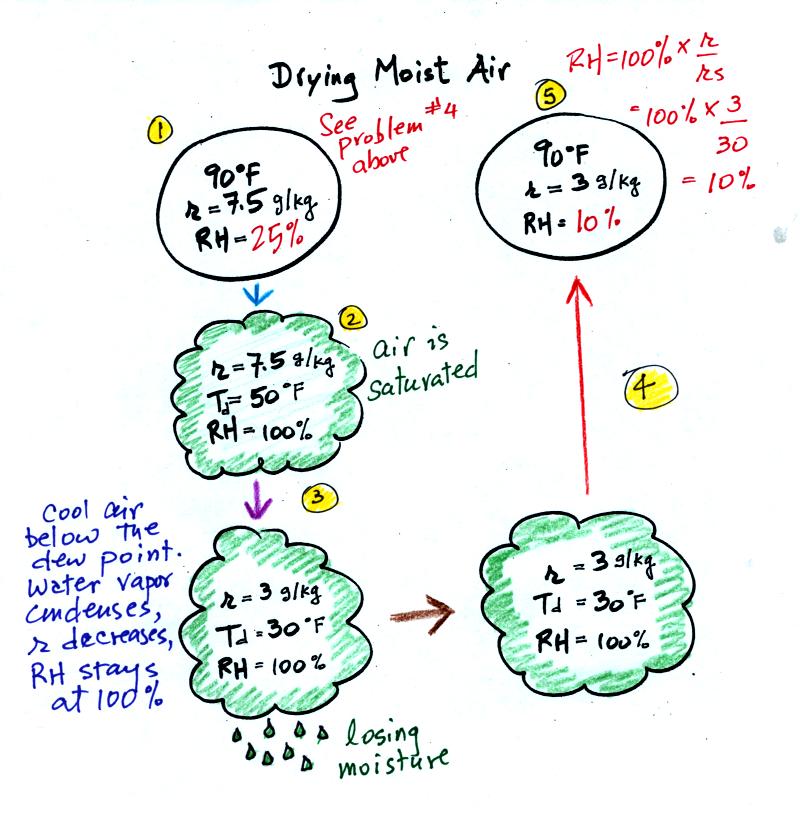

Today we will start to use what we have learned about humidity variables (what they tell you about the air and what causes them to change value) to learn some new things.  The figure below is on p. 87 in the photocopied ClassNotes.



At Point 1 we start with some 90 F air with a relative humidity of 25%, fairly dry air (these data are the same as in Problem #4 on Monday).  Point 2 shows the air being cooled to the dew point, that is where the relative humidity would reach 100% and a cloud would form.    Then the air is cooled below the dew point, to 30 F.  Air that is cooled below the dew point finds itself with more water vapor than it can contain.  The excess moisture must condense (we will assume it falls out of the air as rain or snow).  When air reaches 30 F it contains 3 g/kg, less than half the moisture that it originally did (7.5 g/kg).  The air is being warmed back up to 90 F along Path 4.  As it warms the mixing ratio remains constant.  At Point 5, the air now has a RH of only 10%.

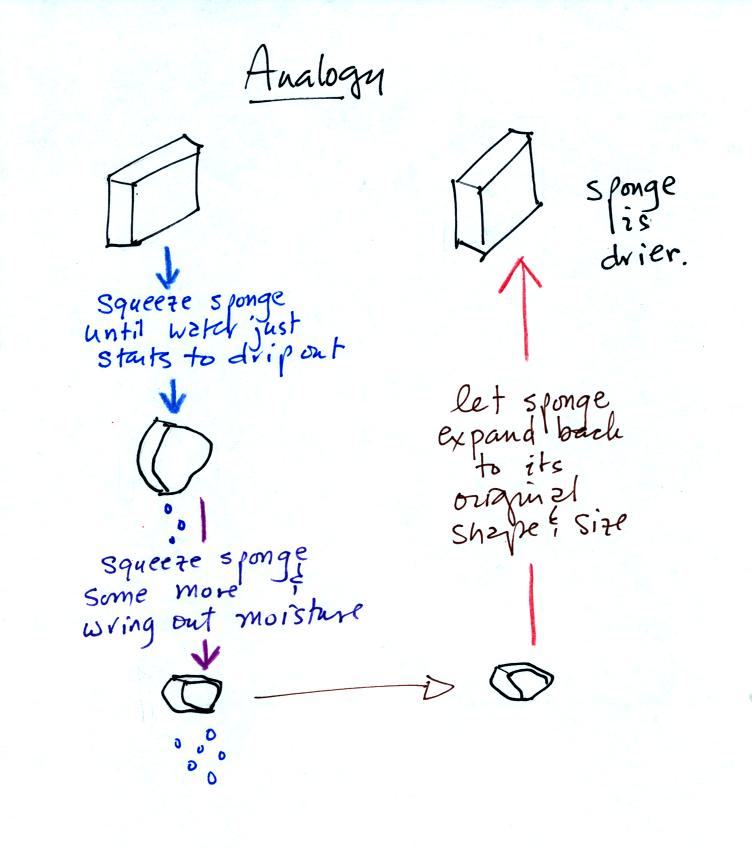

Drying moist air is very much like wringing moisture from a wet sponge.


You start to squeeze the sponge and nothing happens at first (that's like cooling the air, the mixing ratio stays constant as long as the air doesn't lose any water vapor).  Eventually water will start to drop from the sponge (with air this is what happens when you reach the dew point and continue to cool the air below the dew point).  Then you let go of the sponge and let it expand back to its orignal shape and size (the air warms back to its original temperature).  The sponge (and the air) will be drier than when you started.

This sort of process ("squeezing" water vapor out of moist air by cooling the air below its dew point) happens all the time.  Here are a couple of examples (p. 87 again)

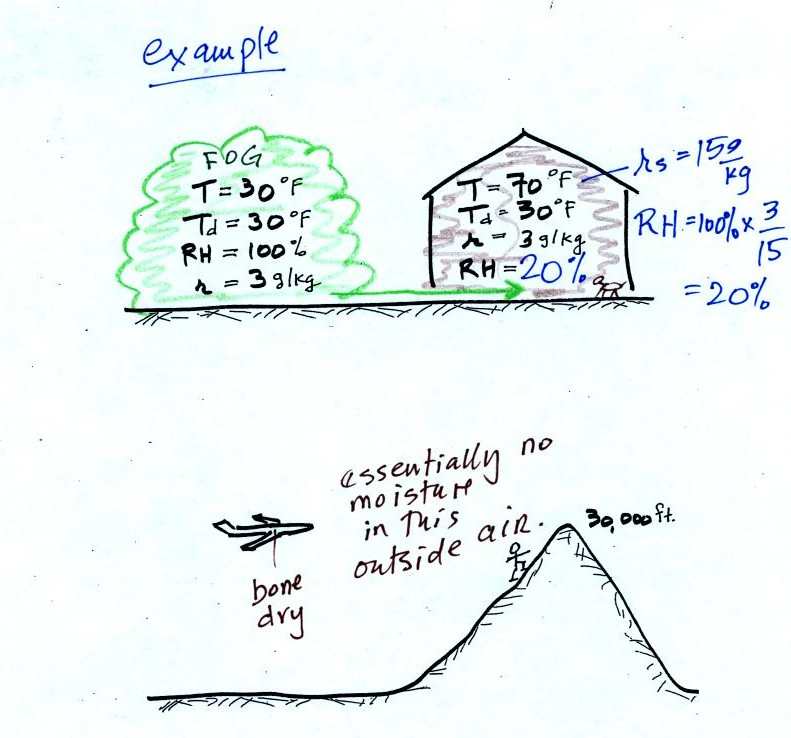

In the winter cold air is brought inside your house or apartment and warmed.  Imagine 30 F air with a RH of 100% (this is a best case scenario, the cold winter air usually has a lower dew point and is drier). Bringing the air inside and warming it will cause the RH to drop from 100% to 20%..  Air indoors during the winter is often very dry.  This can cause chapped skin, can irritate nasal passages, and cause cat's fur to become charged with static electricity.

The air in an airplane comes from outside the plane.  The air outside the plane can be very cold (-60 F perhaps) and contains very little water vapor (even if the -60 F air is saturated it would contain essentially no water vapor).  When brought inside and  warmed to a comfortable temperature, the RH of the air in the plane will be very close 0%.  Passengers often complain of becoming dehydrated on long airplane flights.  The plane's ventilation system probably adds moisture to the air so that it doesn't get that dry.

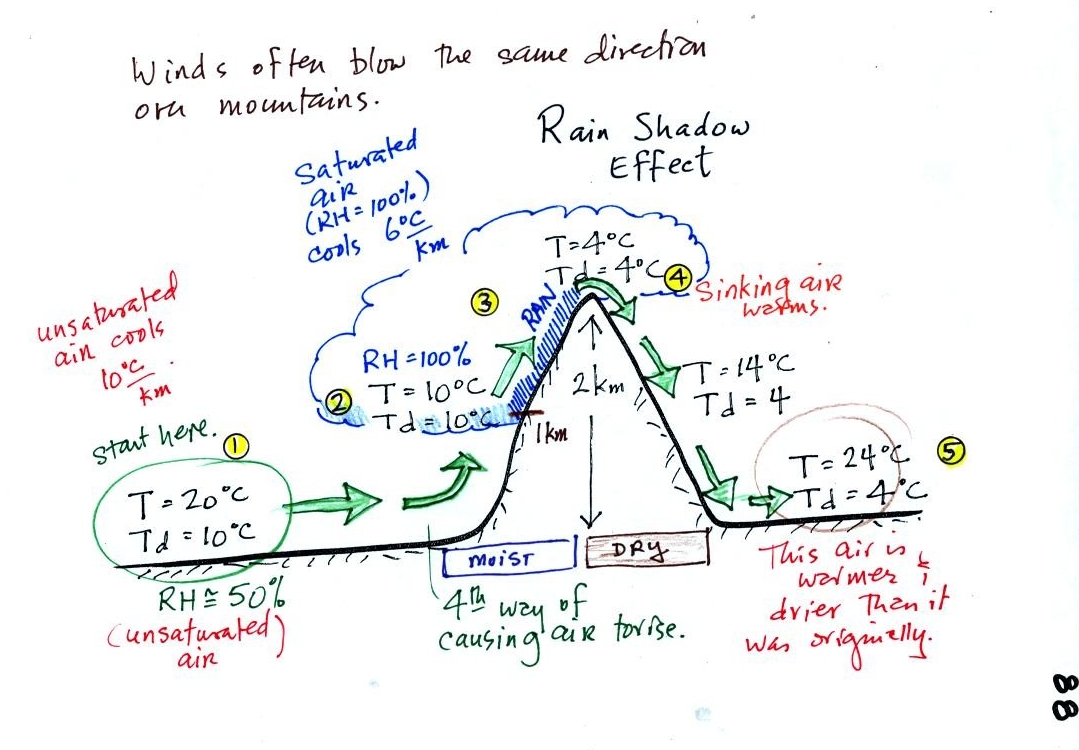

Here's a very important example, the rain shadow effect (p. 88 in the ClassNotes).



We start with some moist but unsaturated air (the RH is about 50%, the air and dew point temperatures would need to be equal in order for the air to be saturated) at Point 1.  As it is moving toward the right the air runs into a mountain and starts to rise.  Rising air expands and cools.   Unsaturated air cools 10 C for every kilometer of altitude gain.  This is known as the dry adiabatic lapse rate and isn't something you need to remember.  So in rising 1 km the air will cool to 10 C which is the dew point.

The air becomes saturated at Point 2,.  Would you be able to tell?  Yes, you would see a cloud appear.

Now that the RH = 100%, the saturated air cools at a slower rate than unsaturated air (condensation of water vapor releases latent heat energy, this warming partly offsets the cooling caused by expansion).  We'll use a value of 6 C/km (an average value).  The air cools from 10 C to 4 C in next kilometer up to the top of the mountain.  Because the air is being cooled below its dew point at Point 3, some of the water vapor will condense and fall to the ground as rain.  Moisture is being removed from the air and the value of the mixing ratio decreases.

At Point 4 the air starts back down the right side of the mountain.  Sinking air is compressed and warms.  As soon as the air starts to sink and warm, the relative humidity drops below 100% and the cloud disappears.  The sinking unsaturated air will warm at the 10 C/km rate.

At Point 5 the air ends up warmer (24 C vs 20 C) and drier (Td = 4 C vs Td = 10 C) than when it started out.  The downwind side of the mountain is referred to as a "rain shadow" because rain is less likely there than on the upwind side of the mountain.  Rain is less likely because the air is sinking and because the air on the downwind side is drier than it was on the upslope side.

Most of the year the air that arrives in Arizona comes from the Pacific Ocean.  It usually isn't very moist by the time it reaches Arizona because it has travelled up and over the Sierra Nevada mountains in California and the Sierra Madre mountains further south in Mexico.  The air loses much of its moisture on the western slopes of those mountains.  The eastern half of Oregon is drier than the western half because air travels from the Pacific up and over the Cascade mountains.  It loses a lot of its moisture on the upslope side of the mountains.

Next in our potpourri of topics today was measuring humidity.  One of the ways of measuring humidity is to use a sling (swing might be more descriptive) psychrometer.


A sling psychrometer consists of two thermometers mounted side by side.  One is an ordinary thermometer, the other is covered with a wet piece of cloth.  To make a humidity measurement you swing the psychrometer around for a minute or two and then read the temperatures from the two thermometers.  The dry - wet thermometer (dry and wet bulb) temperature difference can be used to determine relative humidity and dew point.

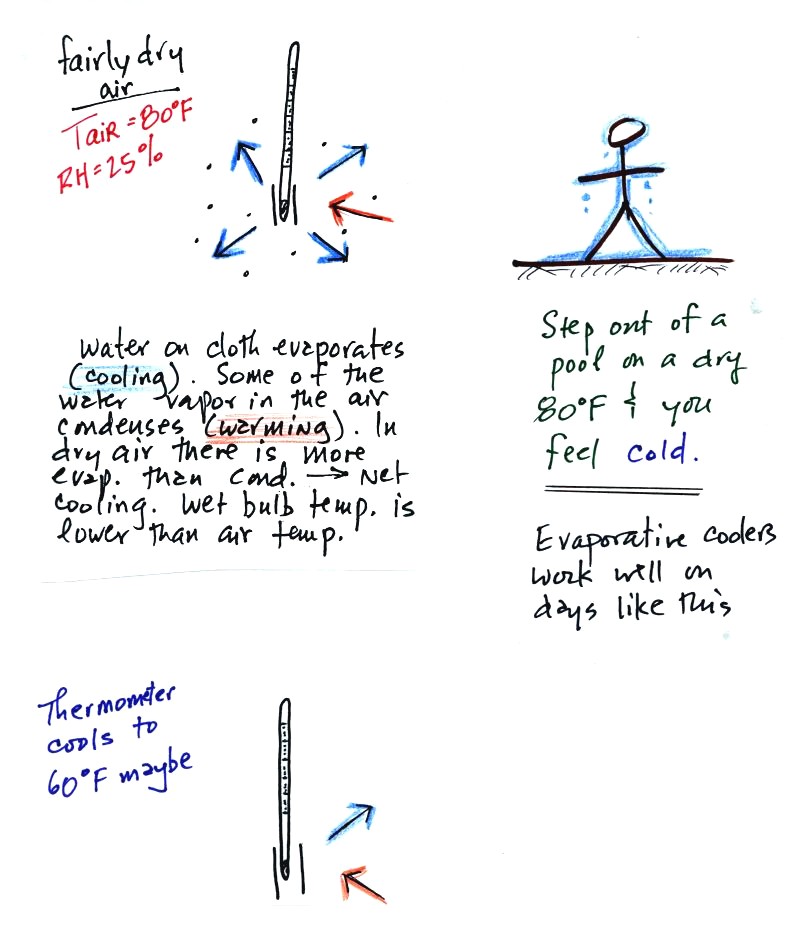

The figure at upper left shows what will happen as you start to swing the wet bulb thermometer.  Water will begin to evaporate from the wet piece of cloth.  The amount or rate of evaporation will depend on the water temperature (the 80 F value was just made up in this example).  Warm water evaporates at a higher rate than cool water.

The evaporation is shown as blue arrows because this will cool the thermometer.  The same thing would happen if you were to step out of a swimming pool on a warm dry day, you would feel cold.  Swamp coolers would work well (too well sometimes) on a day like this.

The figure at upper left also shows one arrow of condensation.  The amount or rate of condensation depends on how much water vapor is in the air surrounding the thermometer.  In this case (low relative humidity) there isn't much water vapor.  The condensation arrow is orange because the condensation will release latent heat and warm the thermometer.

Because there is more evaporation (4 arrows) than condensation (1 arrow) the wet bulb thermometer will drop.

The wet thermometer will cool but it won't cool indefinitely.  We imagine that the wet bulb thermometer has cooled to 60 F.  Because the wet piece of cloth is cooler, the water is evaporating more slowly.  The wet bulb thermometer has cooled to a temperature where the evaporation and condensation are in balance.  The thermometer won't cool any further.

You would measure a large difference (20 F) between the dry and wet bulb thermometers on a day like this when the air is relatively dry.

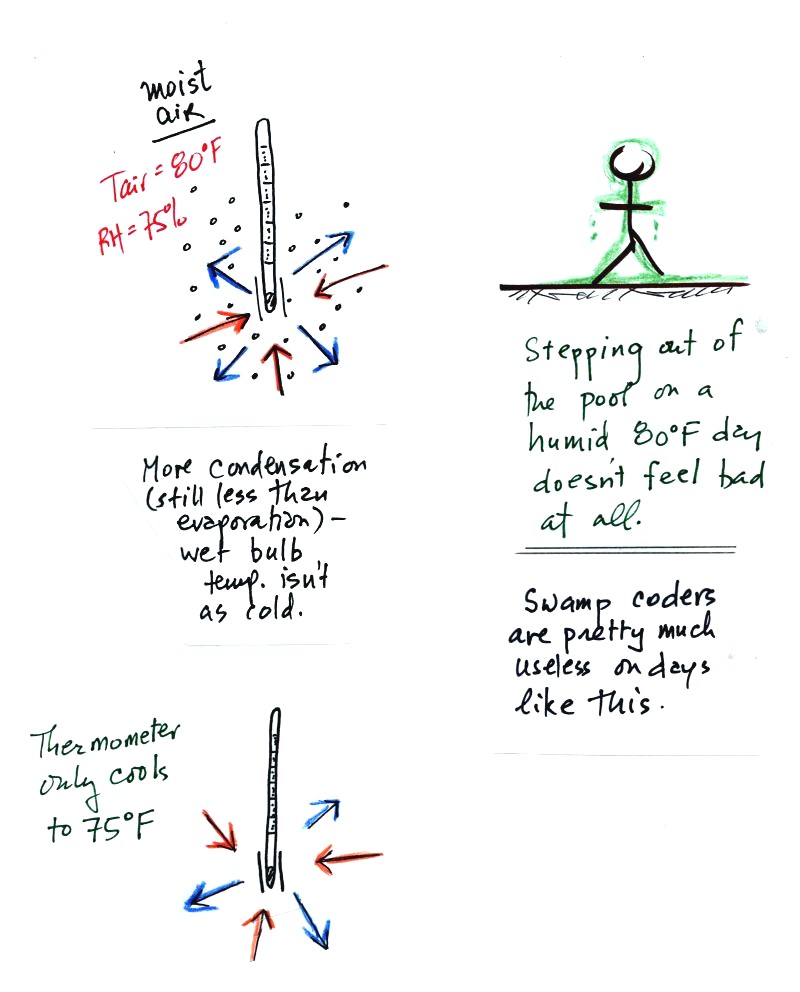

The air temperature is the same in this example, but there is more water vapor in the air.  You wouldn't feel as cold if you stepped out of a pool on a warm humid day like this.  Swamp coolers wouldn't provide much cooling on a day like this.

There are four arrows of evaporation (because the water temperature is still 80 F just as it was in the previous example) and three arrows now of condensation (due to the increased amount of water vapor in the air surrounding the thermometer).  The wet bulb thermometer will cool but won't get as cold as in the previous example.

The wet bulb thermometer might well only cool to 75 F.  This might be enough to lower the rate of evaporation (from 4 arrows to 3 arrows) enough to bring it into balance with the rate of condensation.

You would measure a small difference (5 F) between the dry and wet bulb thermometers on a humid day like this.

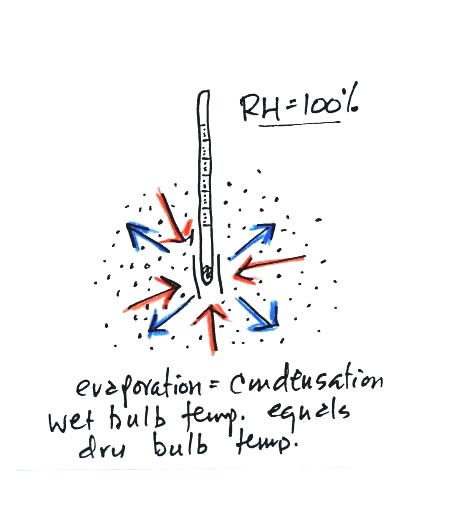

There won't be any difference in the dry and wet bulb temperatures when the RH=100%.  The rates at which water is evaporating and water vapor is condensing are equal.  That's one of the things that happens when air is saturated.  The dry and wet bulb thermometers would both read 80 F.

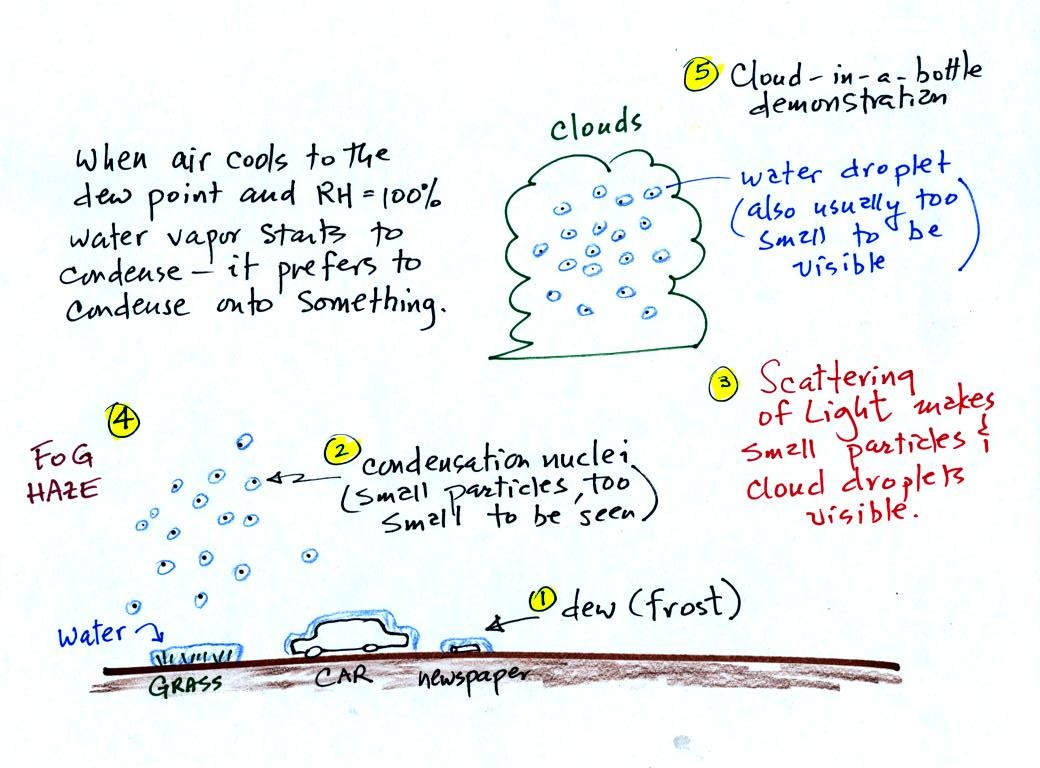

A variety of things can happen when you cool air to the dew point and the relative humidity increases to 100%.  Point 1 shows that when moist air next to the ground is cooled to and below the dew point, water vapor condenses onto (or is deposited onto) the ground or objects on the ground.  This forms dew, frozen dew, and frost.

Air above the ground can also be cooled to the dew point.  When that happens (Point 2 above) it is much easier for water vapor to condense onto something rather than just forming a small droplet of pure water.    In air above the ground water vapor condenses onto small particles in the air called condensation nuclei.  The small water droplets that form are themselves usually too small to be seen with the naked eye.  We can tell they are present (Point 3) because they either scatter (haze or fog) or reflect (clouds) sunlight.

We'll learn a little bit about the formation of dew and frost today.  On Friday we'll learn more about condensation nuclei and will do a cloud-in-a-bottle demonstration (Point 5) to see the role that cloud condensation nuclei can play in cloud formation.

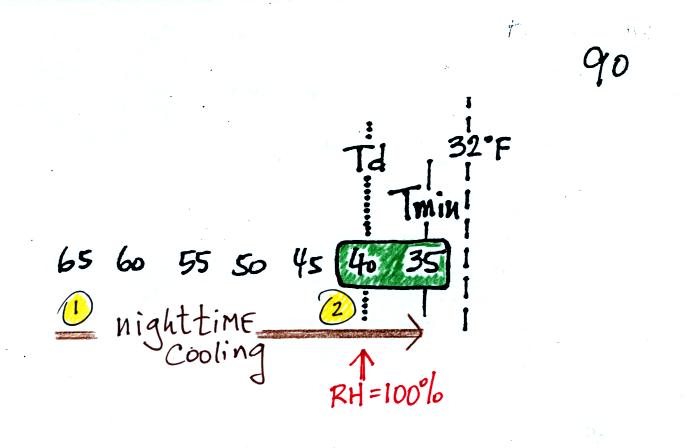

It might be a little hard to figure out what is being illustrated here.  Point 1 is sometime in the early evening when the temperature of the air at ground level is 65.  During the course of the coming night the air will cool to 35 F.  When the air temperature reaches 40 F, the dew point, the relative humidity reaches 100% and water vapor begins to condense onto the ground.  You would find your newspaper and your car covered with dew (water) the next morning.

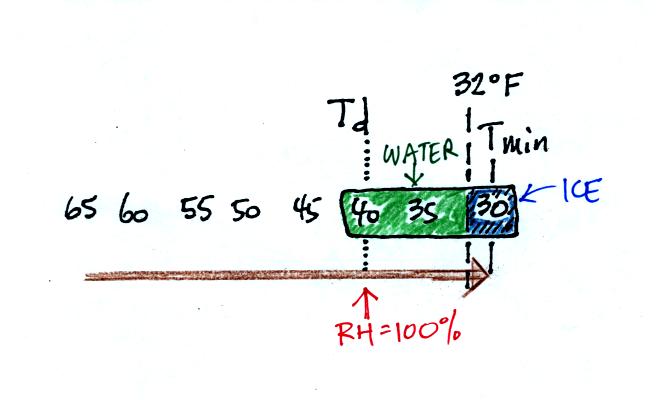

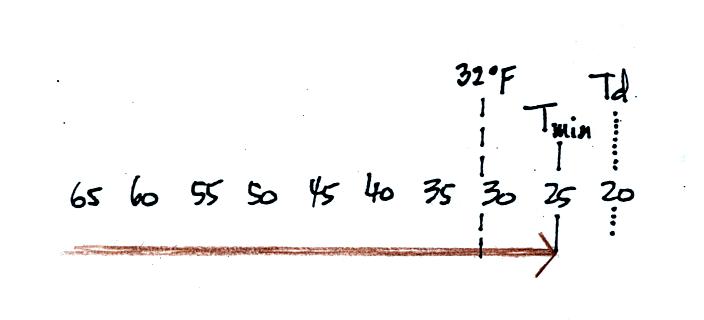

The next night is similar except that the nighttime minimum temperature drops below freezing.  Dew forms and first covers everything on the ground with water.  Then the water freezes and turns to ice.  This isn't frost, rather frozen dew.  Frozen dew is often thicker and harder to scrape off your car windshield than frost.

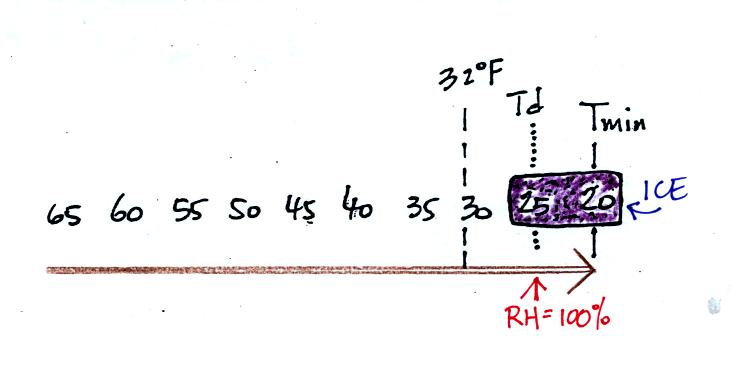

Now the dew point and the nighttime minimum temperature are both below freezing.  When the RH reaches 100% water vapor turns directly to ice (deposition).  This is frost.

What happens on this night?  Because the nighttime minimum temperature never reaches the dew point and the RH never reaches 100%, nothing would happen.

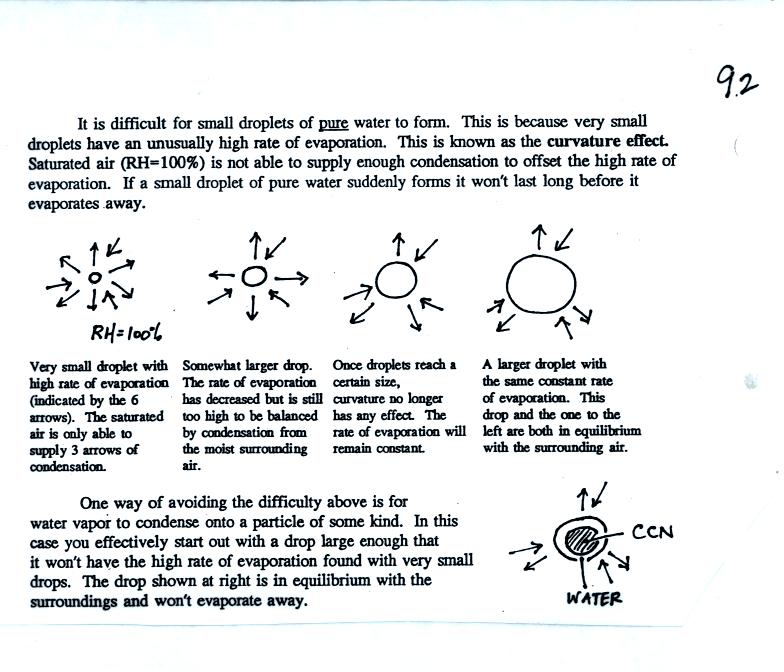

As mentioned earlier, when the relative humidity in air above the ground (and away from objects on the ground) reaches 100%, water vapor will condense onto small particles called condensation nuclei.  It would be much harder for the water vapor to just condense and form small droplets of pure water (you can learn why that is so by reading the top of p. 92 in the photocopied class notes).

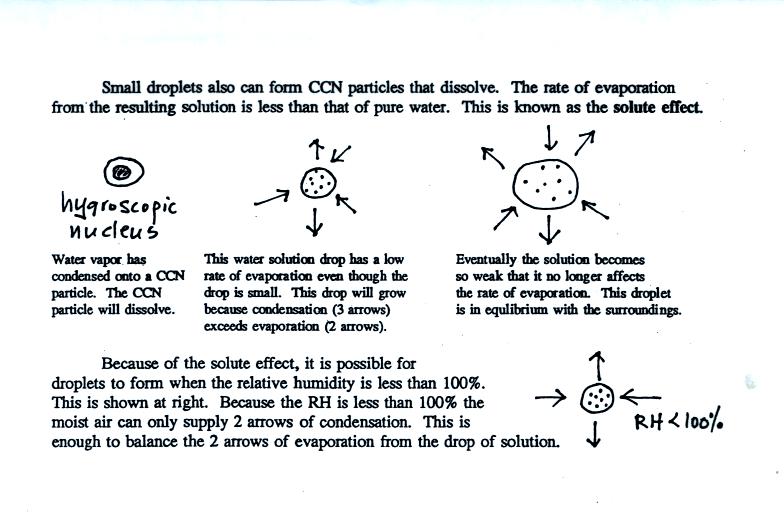

Water vapor will condense onto certain kinds of condensation nuclei even when the relative humidity is below 100% (again you will find some explanation of this on the bottom of p. 92).  These are called hygroscopic nuclei.

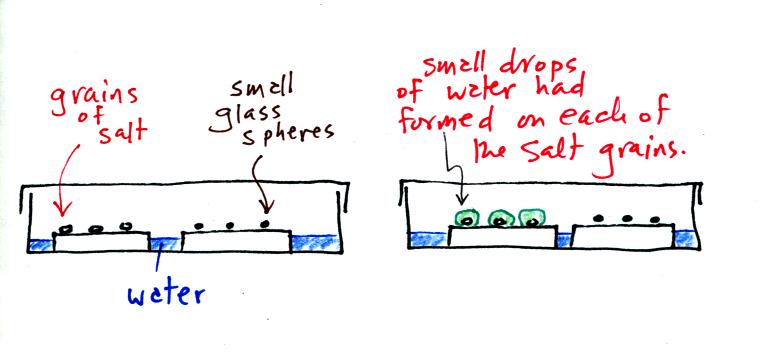

A short video showed how water vapor would, over time, preferentially condense onto small grains of salt rather than small spheres of glass.  The figure below wasn't shown in class.


The start of the video at left showed the small grains of salt were placed on a platform in a petri dish containing water.  Some small spheres of glass were placed in the same dish.  After about 1 hour small drops of water had formed around each of the grains of salt but not the glass grains (shown above at right).

In humid parts of the US, water will condense onto the grains of salt in a salt shaker causing them to stick together.  Grains of rice apparently absorb moisture which keeps this from happening and allows the salt to flow freely out of the shaker when needed.

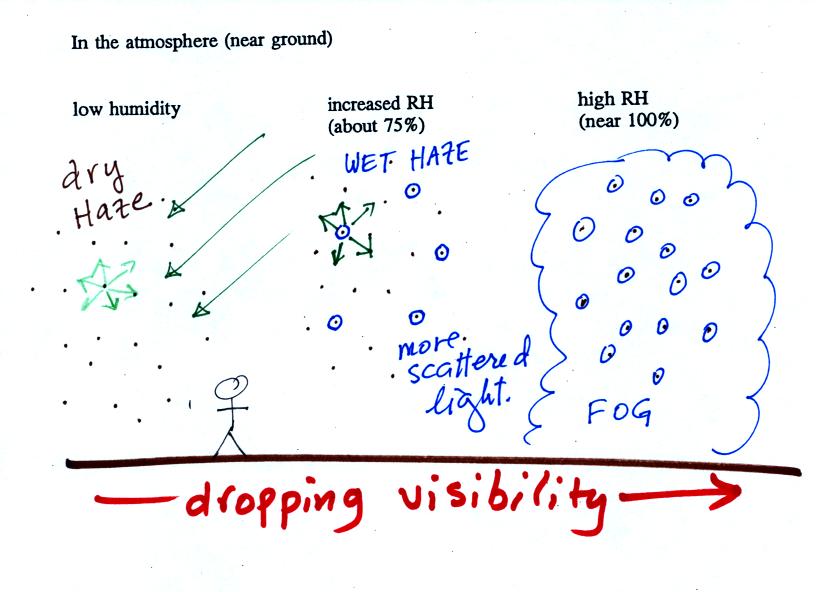

This figure shows how cloud condensation nuclei and increasing relative humidity can affect the appearance of the sky and the visibility.

The air in the left most figure is relatively dry.  Even though the condensation nuclei particles are too small to be seen with the human eye you can tell they are there because they scatter sunlight.  When you look at the sky you see the deep blue color caused by scattering of sunlight by air molecules mixed together with some white sunlight scattered by the condensation nuclei.  This changes the color of the sky from a deep blue to a bluish white color.  The more particles there are the whiter the sky becomes.  This is called "dry haze."

The middle picture shows what happens when you drive from the dry southwestern part of the US into the humid southeastern US.  One of the first things you would notice is the hazier appearance of the air and a decrease in visibility.  Because the relative humidity is high, water vapor begins to condense onto some of the condensation nuclei particles (the hygroscopic nuclei) in the air and forms small water droplets.  The water droplets scatter more sunlight than just small particles alone.  The increase in the amount of scattered light is what gives the air its hazier appearance. This is called "wet haze."

Finally when the relative humidity increases to 100% fog forms.  Fog can cause a severe drop in the visibility.  The thickest fog forms in dirty air that contains lots of condensation nuclei.  We will see this effect in the cloud-in-a-bottle demonstration coming up at the end of class.

Here are the answers to the page of questions handed out in class.  This was not an optional assignment just something to keep you occupied during today's class and to give you practice with the humidity material that we have been covering.

Above you were supposed to fill in all the blanks with INCRease, DECRease, or remain the SAME.



You can use the dew point temperature (Td) data, the air temperature (Ta) data, and the difference between Tair and Td to answer the 3 questions above.

The mixing ratio and the dew point temperature have the same job: telling you how much water vapor is actually in the air.  City B has more water vapor in the air and a higher mixing ratio than City A because City B has the higher dew point temperature.

City B has higher relative humidity than City A because there is a smaller difference between Tair and Td at City B than at City A.

The air at City A is hotter than at City B.  The saturation mixing ratio depends on air temperature.  City A has a higher saturation mixing ratio than City B.



The air is rising and cooling along Path a.  The relative humidity would be increasing along A eventually becoming 100% about halfway up the side of the mountain (the cloud base indicates where RH became 100%)

Air is being cooled below the dew point temperature along Path b and moisture is being "wrung" from the air (water vapor is condensing).  Because water vapor is being removed from the air, the mixing ratio will decrease along Path b.

The air is sinking and warming along Path c.  The relative humidity will decrease along Path c.

Water vapor is not being added at any point in the picture, thus mixing ratio doesn't increase anywhere.
