Introduction to Hurricanes ; Hurricane Characteristics

Tropical Cyclones and Hurricanes

Tropical Weather

In the broad belt around the earth known as the tropics -- the region within 23½° latitude north and south of the equator -- the weather is much different from the middle latitudes. The noon sun is always high in the sky and seasonal changes in temperature are small compared with the more drastic seasonal changes at higher latitudes. The daily heating of the surface and high humidity favor the development of cumulus clouds and thunderstorms. Frequent showers and non-violent thunderstorms often accompanied with heavy rainfall are typical for tropical regions. Intense and well organized storm systems are relatively rare.

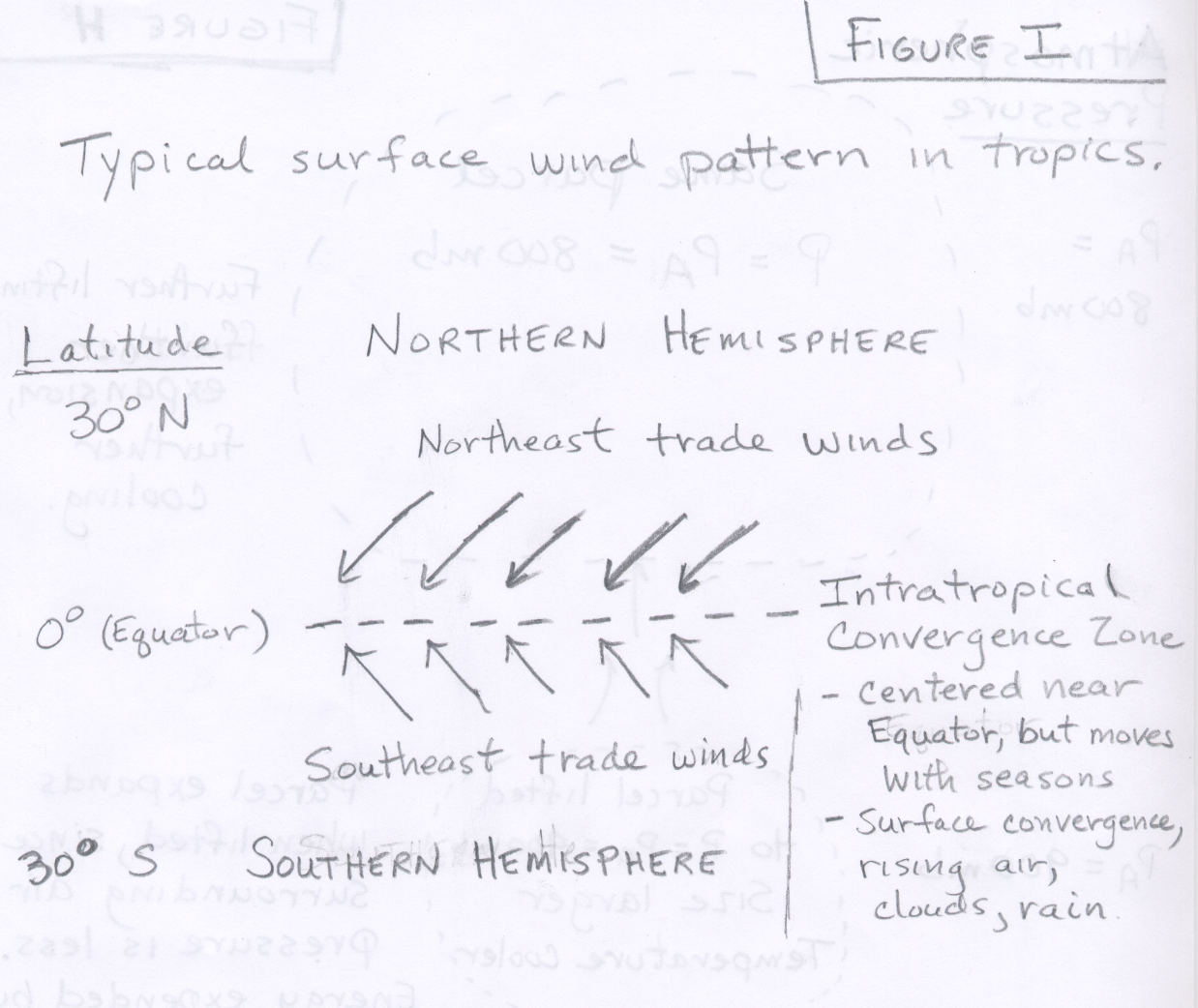

Surface winds in the tropics generally blow from the east -- specifically from the northeast (in the northern hemisphere), and from the southeast (in the southern hemisphere) -- these reliable and steady winds are called the trade winds. Between these two winds flows is an area of convergence known as the intratropical convergence zone (ITCZ) (See Figure I). You may also wish to look over the Wikipedia page on the Intratropical Convergence Zone. The corresponding pattern of surface pressure is to have a line of lower pressure along the intratropical convergence zone and lines of higher pressure to the north and south of the ITCZ. You should be able to convince yourself that this pressure pattern at the surface would result in the northeast and southeast trade winds using the simple rules for determining the surface wind direction based on the surface pressure pattern. You need to remember that the Coriolis Effect will turn the wind direction to the right of the pressure gradient in the northern hemisphere and to the left of the pressure gradient in the southern hemisphere and that the winds above the surface are turned about 30° toward lower pressure.

This band of surface convergence, forced rising air, and clouds is easily seen on satellite imagery and is a prominent part of the climate of Earth. Let's take some time to try to look over a few satellite composite images and movies of the Earth to identify some of the major features of weather patterns around the globe. Click on this link to satellite composite imagery, which will open in another browser window or tab and read the instructions that follow. A composite image of the globe is done by stitching together (or compositing) simultaneous views from several satellites, since any one of them can only view a small portion of the Earth. There are many interesting images and movies available. For this discussion, take a look at either the "Global Montage" two week movie or the "Infrared Global Composite Quicktime Movie." After loading the movie, you can pause it and use the slider at the bottom of the image to move more slowly through the frames. The time each image was taken in GMT is given below the image. Notice the semi-continuous band of clouds that extends across the globe near the Equator. This is the Intratropical Convergence Zone. Also notice that cloud systems at low latitudes (close to the Equator) generally move from east toward west. There may even be some active tropical storms in the two week loop depending on when you look. Now look at the motion of cloud systems at higher latitudes in both the northern and southern hemisphere. These cloud systems generally move from west to east and commonly rotate or swirl. At higher latitudes the steering level winds (around 500 mb) are generally west toward east, while in the tropics these winds are generally east toward west. The movement of tropical storms is further described within upcoming reading pages. We have previously discussed the general movement of higher latitude storm systems, which is typically from west to east, i.e., in the direction of the 500 mb steering level winds.

Occasionally, a large undulation or ripple in the normal trade wind pattern will develop and move slowly from east toward west. These disturbances in the flow are called tropical waves, or easterly waves. Because variaions of surface air pressure in the tropics are so slight compared with the middle latitudes, tropical waves are best shown by plotting steamlines of the wind patterns (rather than isobars) as shown in this example wind pattern near tropical waves. The example also indicates where areas of surface convergence (which forces rising motion resulting in the development of clouds and rain) and surface divergence (which forces sinking motion resulting in mainly clear skies) occur relative to the position of the easterly wave. Click on the "Overlay" button above the image to see the corresponding satellite image of cloud cover. The typical westward movement of a tropical easterly wave is shown in this animation of a tropical wave moving across the Caribbean. Although the majority of tropical waves die out before becoming major systems, if conditons are favorable, tropical waves can intensify, develop a central low pressure region around which the winds rotate, and grow into hurricanes. In fact, most severe hurricanes that affect the United States begin as easterly waves, which move off the continent of Africa. More information and a diagram can be found in this African Easterly Wave Link (Click on the image to zoom). Usually these easterly waves are relatively weak until they move into the warmer waters in the western Atlantic, Caribbean, and Gulf of Mexico.

During the summer monsoon season in Arizona, remnants of tropical easterly waves sometimes move from the Gulf of Mexico westward across northern Mexico and even southern Arizona. These waves often act to enhance rainfall in Arizona.

Although most of the severe hurricanes that affect the United States begin as easterly waves that move off Africa and across the Atlantic, there have been many cases where hurricanes initially formed much closer to the United States -- in the Carribean and Gulf of Mexico. In those cases it often appears that a region of surface convergence or upper-level divergence with an associated area of disorganized thunderstorms eventually develops rotation and strengthens.

Types of Tropical Cyclones

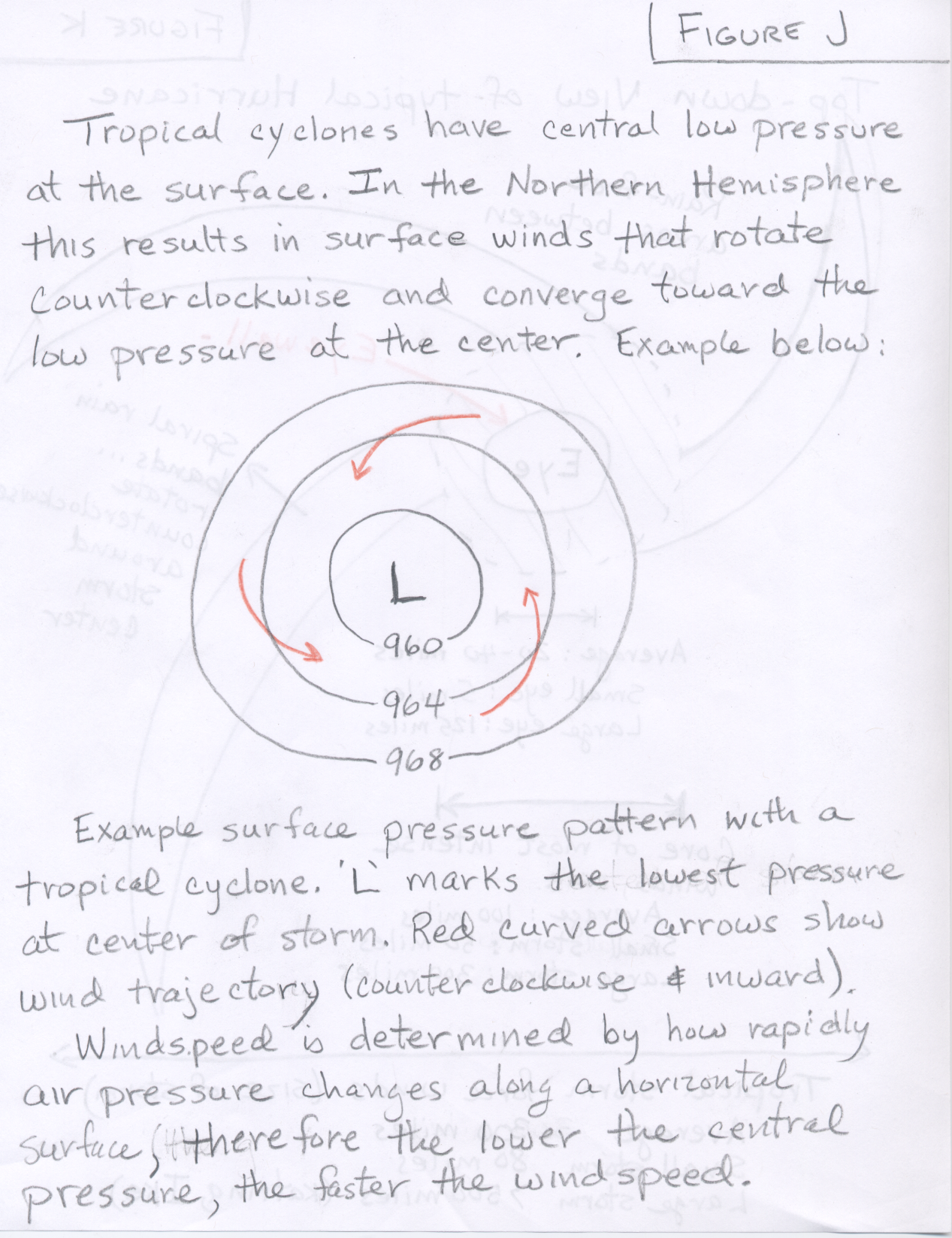

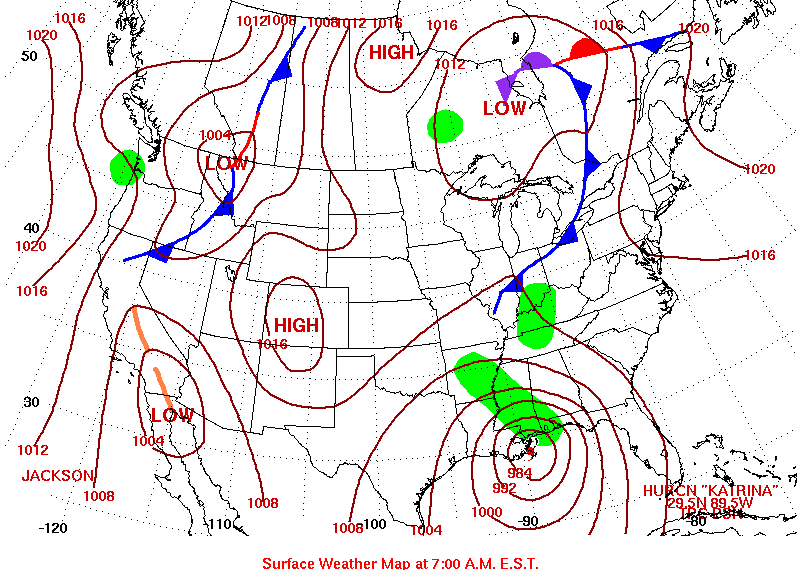

Tropical cyclone is the generic name given to a surface low pressure system over tropical waters, with organized convection (i.e., thunderstorm activity) and a definite cyclonic (or counter-clockwise) surface wind pattern (See Figure J). Here again is the surface weather map showing Hurricane Katrina in August 2005. Recall from the previous reading pages that the ground surface winds around a circular area of lower pressure (in the Northern Hemisphere) are counterclockwise, but also inward. The speed of the wind depends on how rapidly air pressure increases in moving out from the low pressure center. As described in Figure J, the speed of the wind and strength of the storm depends on how low the central pressure gets. Remember that the average sea level pressure is about 1000 mb (1013.25 mb to be exact), and somewhere outside the storm, the pressure will have to return to average, thus the lower the central pressure of the storm, the stronger the pressure gradient, the stronger the winds and the stronger the storm. Tropical storms and hurricanes also form in the southern hemisphere. Because the Coriolis force acts in the opposite direction, the wind field around a tropical cyclone (or any circular low pressure pressure system) in the Southern Hemisphere is clockwise and converging (inward). As a tropical cyclone intensifies, it is classified according to wind speed.

• Tropical Depression - surface winds < 39 mi/hr
• Tropical Storm - surface winds 39-74 mi/hr (This is when storm is first given a name)
• (*)Hurricane - surface winds > 74 mi/hr

(*)Hurricane is the term used in the north Atlantic Ocean and the north and south Pacific oceans east of the dateline. These storms are given different names in other ocean basins:

• Typhoon is used in the north Pacific Ocean west of the dateline
• Severe Tropical Cyclone is used in the southwest Pacific Ocean (west of the dateline) and in the Southeastern Indian Ocean
• Severe Cyclonic Storm is used in the north Indian Ocean

Tropical storms and hurricanes are the only natural disasters which have their own names (e.g., Andrew, Camille, Hugo, the 2004 Florida hurricanes, Charles, Frances, Ivan, and Jeanne, the damaging 2005 hurricanes, Dennis, Katrina, Rita, and Wilma, and in 2008 Gustov and Ike). Names seem appropriate because we commonly come to know hurricanes long before they strike land, often watching these storms move across the oceans for days or even weeks. By contrast isolated severe thunderstorms and tornadoes develop suddenly and last only hours. Hurricanes are much larger than an individual severe thunderstorm cell and are more correctly described as being composed of an organized clustering of thunderstorms. They are quite powerful and release great amounts of energy (mostly in the form of latent heat released by the condensation of water in cloud formation). In fact the energy released by a single, strong hurricane can be greater than the total annual energy consumption of the United States and Canada combined.

The hurricane season in the North Atlantic Ocean officially runs from June 1 through November 30, although tropical storms in the North Atlantic sometimes develop outside of this period. Each year a new list of names is used for the storms that reach tropical storm strength. The first storm is given a name that begins with 'A', the second begins with 'B', and so forth. Not all letters are used. Each year a list of 21 names is used to name the storms in the order that they form (List of Tropical Storm names for the North Atlantic Ocean). The US started using names back in 1953. At first all storms were given female names. Beginning in 1979, traditionally male and female names have been alternated.

Relationship between surface air pressure and windspeeds

Surface atmospheric pressure in the center of a hurricane tends to be extremely low. The lowest pressure reading ever recorded for a hurricane was Super Typhoon Tip in 1979, which had a central pressure of 870 millibars (mb). The average sea level pressure at the center of storms that reach hurricane strength is near 960 mb. Wind speed in a hurricane is highly related to the surface pressure of the storm, since the windspeed is determined by the pressure gradient or the change in air pressure divided by the distance over which the pressure change happens. The average sea level air pressure on Earth is 1013.25 mb. The the pressure gradient (and hence windspeed) depends on the difference in pressure between the lowest pressure in the center of the storm and the pressure outside the storm (average 1013 mb) divided by the distance over which the pressure change happens. In general, the lower the central pressure, the higher the windspeeds generated. In fact hurricanes are classified by either windspeed or the central pressure (with lower pressure being more intense). See this link to Saffir-Simpson Hurricane Classification Table to see the criteria for Category 1 through Category 5 Hurricanes, which can be defined by either central pressure or windspeed. Hurricanes that reach category 3, 4, or 5 strength are called major hurricanes. The graph below shows the relationship between surface pressure and sustained wind speed for a number of tropical low pressure systems. This is a rather old figure and does not contain data from hurricanes after 1990.

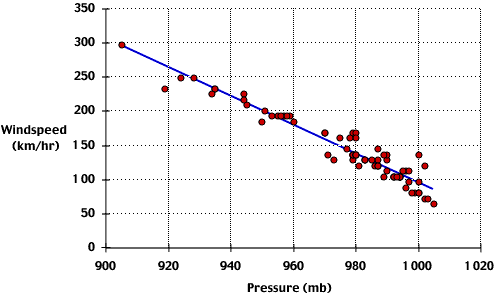

Relationship between surface pressure and wind speed for a number of tropical low pressure systems. Tropical low pressure systems are classified as hurricanes when their pressure is 980 millibars or lower, and sustained wind speeds are greater than 118 kilometers per hour.

For historical perspective, the table below shows that infamous hurricane Katrina was the sixth strongest hurricane ever located in the north Atlantic Ocean and the third strongest to hit the United States at the time of landfall in terms of its central pressure (at least since reliable meterological measurements have been available).

If you are interested, please see the following link for more information on historic Atlantic Hurricanes.

Anatomy of a Hurricane

A hurricane is an intense storm of tropical origin, with sustained winds exceeding 64 knots (74 mi/hr). Below is a photo of Hurricane Elena. The storm is approximately 500 km (310 mi) in diameter, which is about average for hurricanes. The area of clear skies (with perhaps scattered clouds) in the center is the eye of the storm. Elena's eye is almost 40 km (25 mi) wide. Within the eye, winds are light and skies are mostly clear of clouds. The surface pressure is very low, nearly 955 mb.

Hurricane Elena as photographed from the space shuttle Discovery during September, 1985.

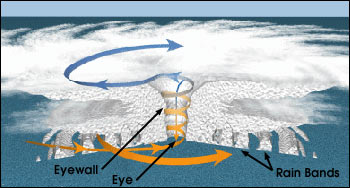

Structure of a Hurricane

Notice that the clouds align themselves into spiraling bands (called spiral rain bands) that swirl in toward the storm's center, where they wrap themselves around the eye. Surface winds increase in speed as they blow counterclockwise and inward toward this center.

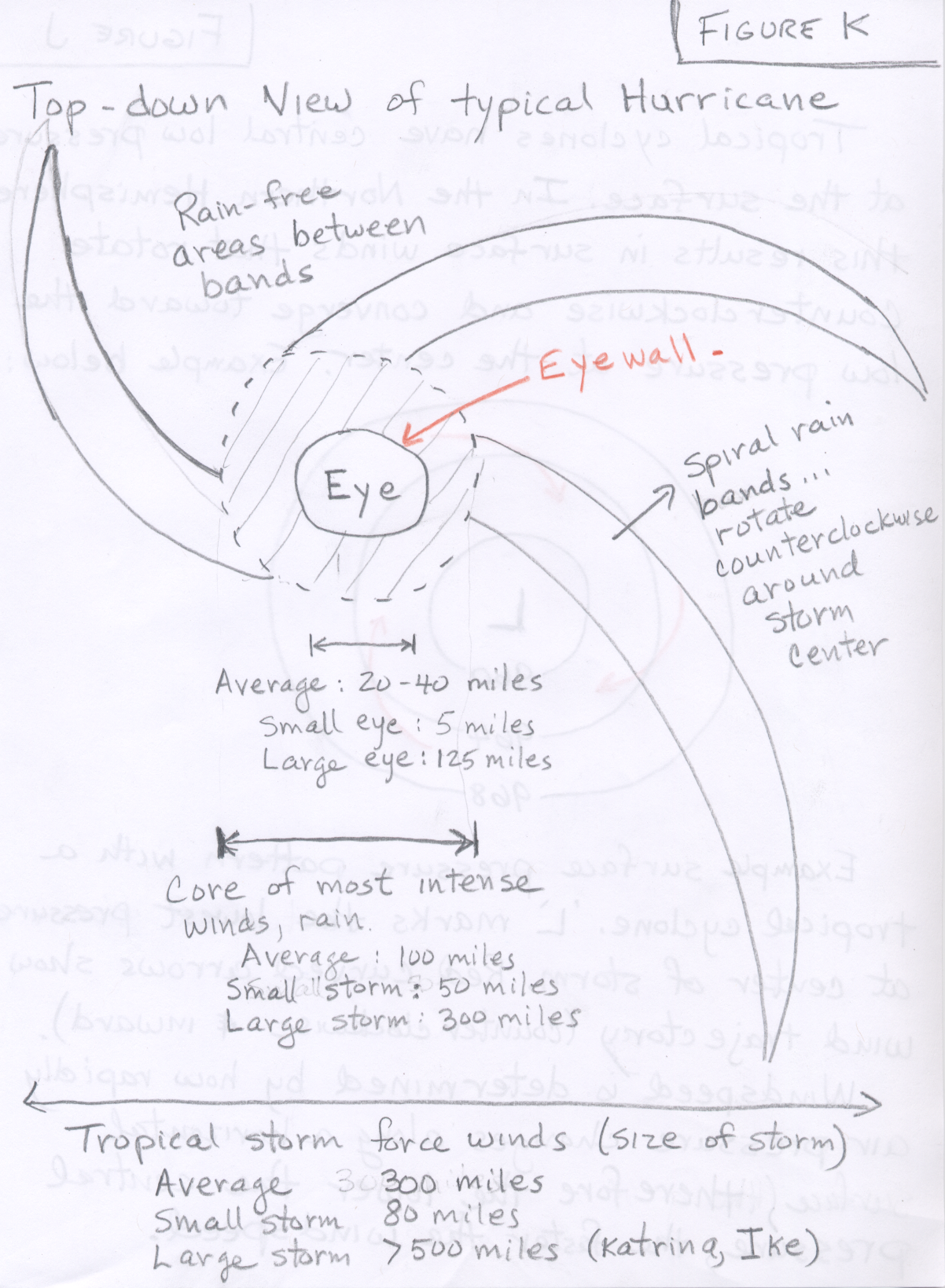

Adjacent to the eye is the eye wall, a ring of intense thunderstorms that whirl around the storm's center and extend upward to almost 15 km (49,000 ft) above sea level. Notice that the cloud tops in the eye wall region extend above the other clouds. Within the eye wall we find the heaviest precipitation and the strongest winds. Please take a look at Figure K which shows a top-down view of a typical hurricane. While Figure K provides numbers for the average size of a tropical storm, you should realize that storm size can vary quite alot. The size of a tropical system can be defined as the area over which tropical force winds or stronger are observed. Obviously, the larger the storm, the greater potential damage it may cause. Both the maximum wind strength and the size of the wind field are important. Super Typhoon Tip is the largest storm ever recorded, with tropical force winds 2100 km (1300 miles) in diameter around the center of the storm. Please look at this picture comparing the sizes of the very large Typhoon Tip, a category 5 hurricane, to much smaller Tropical Cyclone Tracy, a category 4 hurricane that devasted parts of northern Australia in 1974. Indian Ocean storms are called tropical cyclones, not hurricanes or typhoons.

All strong tropical cyclones consist of the following components:

• Surface low pressure: All tropical cyclones rotate around an area of low atmospheric pressure near the Earth's surface. The pressures recorded at the centers of tropical cyclones are among the lowest that occur on Earth's surface at sea level.
• Warm core: Tropical cyclones are characterized and driven by the release of large amounts of latent heat of condensation as moist air is carried upwards and its water vapor condenses to form clouds. This heat is distributed vertically, around the center of the storm. Thus, at any given altitude (except close to the surface where water temperature dictates air temperature) the environment inside the cyclone is warmer than its outer surroundings.
• Eye: A strong tropical cyclone will harbor an area of sinking air at the center of circulation. Weather in the eye is normally calm and free of clouds (however, the sea may be extremely violent). The eye is normally circular in shape, and may range in size from 8 km to 200 km (5 miles to 125 miles) in diameter. In weaker cyclones, the clouds may cover the circulation center, resulting in no visible eye.
• Eyewall: The eyewall is a circular band of intense convection and winds immediately surrounding the eye. It has the most severe conditions in a tropical cyclone. Intense cyclones show eyewall replacement cycles, in which outer eye walls form to replace inner ones. The mechanisms that make this occur are still not fully understood. In the eyewall replacement process, the eyewall contracts to a smaller size, and outer rain bands form a new eyewall. This new eyewall weakens the original eyewall, and eventually replaces it completely. During the replacement cycle, the storm weakens, sometimes dramatically, but afterwards the storm will often be stronger than before.
• Outer or Spiral Rain Bands: Focussed areas of low level convergence, rising motion, and heavy rain that rotate counterclockwise around the storm. These may extend hundreds of kilometers from the storm's center. The spiral rain bands are basically aligned with the low level winds which rotate counterclockwise and spiral inward toward the storm's center.
• Outflow: The upper levels of a tropical cyclone feature winds headed away from the center of the storm with an anticyclonic (clockwise) rotation. Winds at the surface are strongly cyclonic, weaken with height, and eventually reverse themselves. Tropical cyclones owe this unique characteristic to the warm core at the center of the storm.

You should be familar with the basic anatomy of a hurricane, as most hurricanes have the features mentioned above. It is beyond the scope of this course to explain and understand why these storms organize themselves in this manner. For example, you should know that the eye is an area of calm winds and low surface pressure with sinking air and generally fair skies, but the reason for this has not been explained.
